Places of lubrication (4)
Axle stubs
A

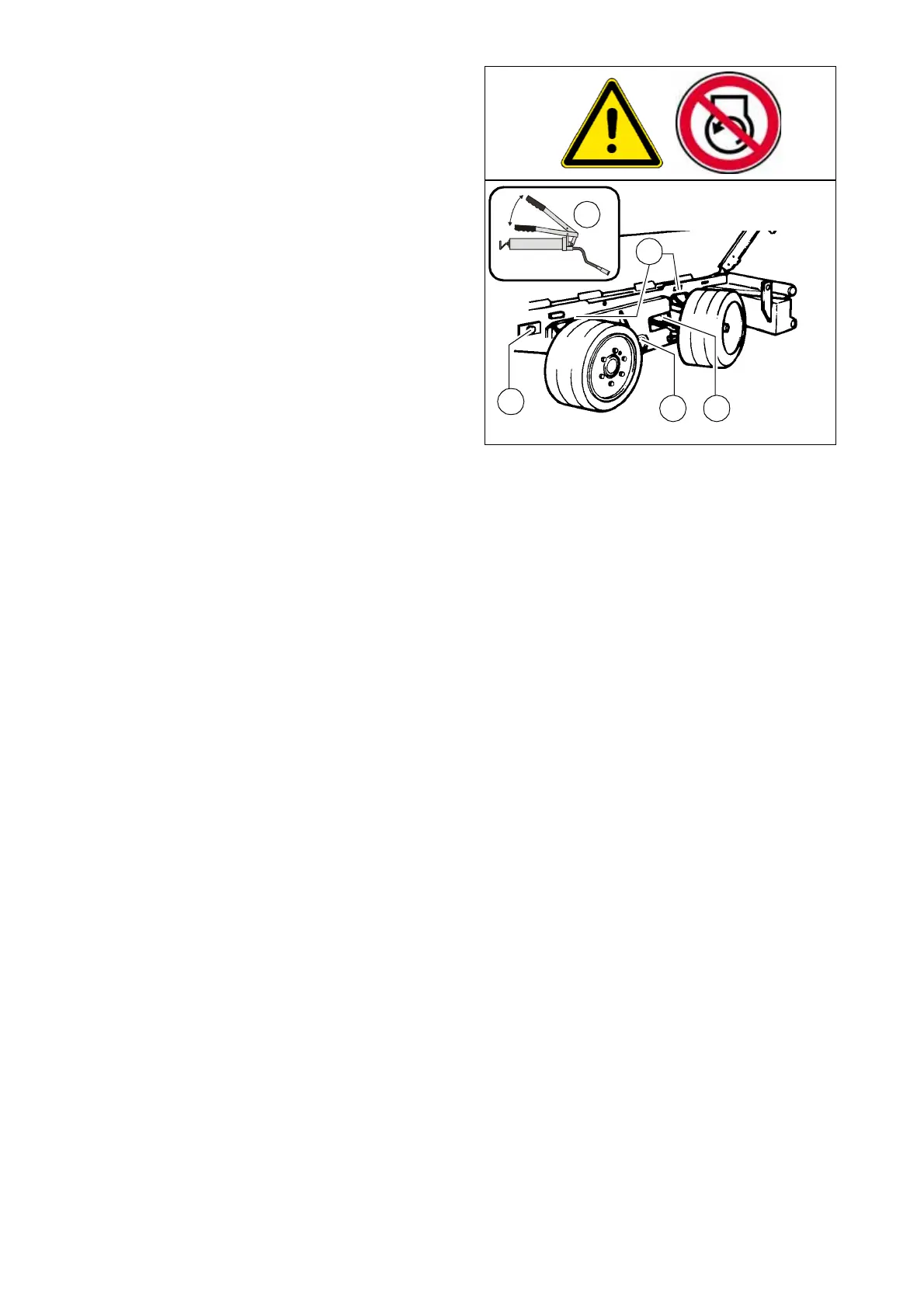

A grease nipple (A) is fitted in each of the
four axle stubs.
Steering
A
The grease nipple (B) is located on the
right side wall and the steering linkage
is supplied with grease through a lubri-
cation line.
Swing axle
A
Grease nipple (C) is located on the RH and LH sides on the central bearing of the
swing axle.
Wheel bearing
A
The grease nipples (D) are found on the wheel hub at each wheel.
There is no grease nipple in the driven wheel in case of front-wheel drive.
F0149_A1.TIF
5x
