C 1.2 9
C_1.2_01_GB.fm 9-12
4 Loading by crane
m
Use only lifting gear that can bear the load.
(See Chapter B for weights and dimensions).
A

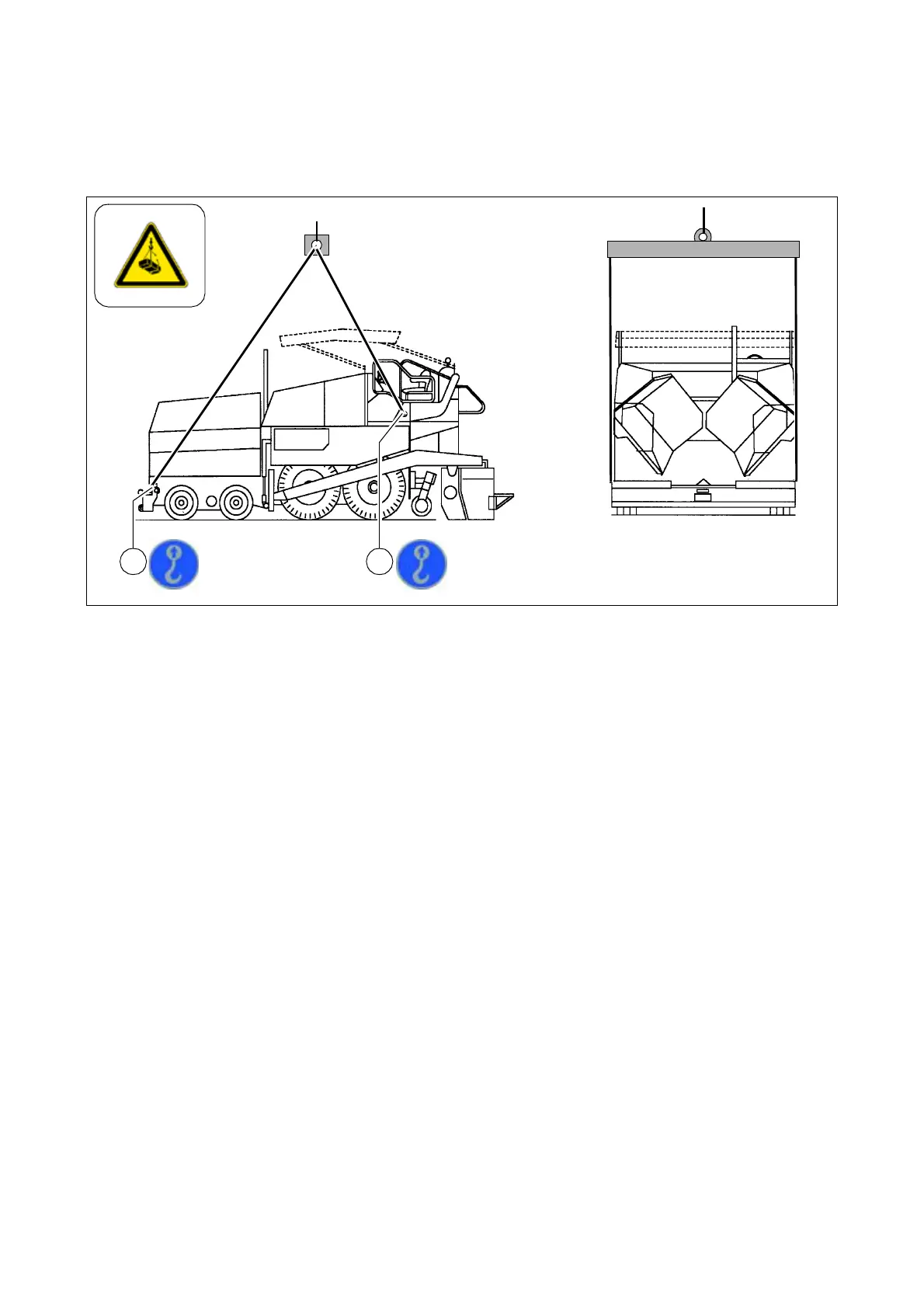

Four lifting eyes (1.2) are provided for loading the vehicle with a crane.
- Park the paver finisher and render it safe.
- Engage the transport safeguards.
- Remove any attachments and accessories from the paver finisher and the screed
until the basic width has been attained.
- Take off all protruding or loose parts and the gas bottles of the screed heating
system (see Chapters E and D).
- Swing down the protective roof.
- Attach the lifting gear to the four lifting eyes (1,2).
m
Make sure that the paver finisher remains in a horizontal position during transport!
F0185_A1.TIF
1 2
