B 7

B_F161W_01_GB.fm 7-22 01- 01.07

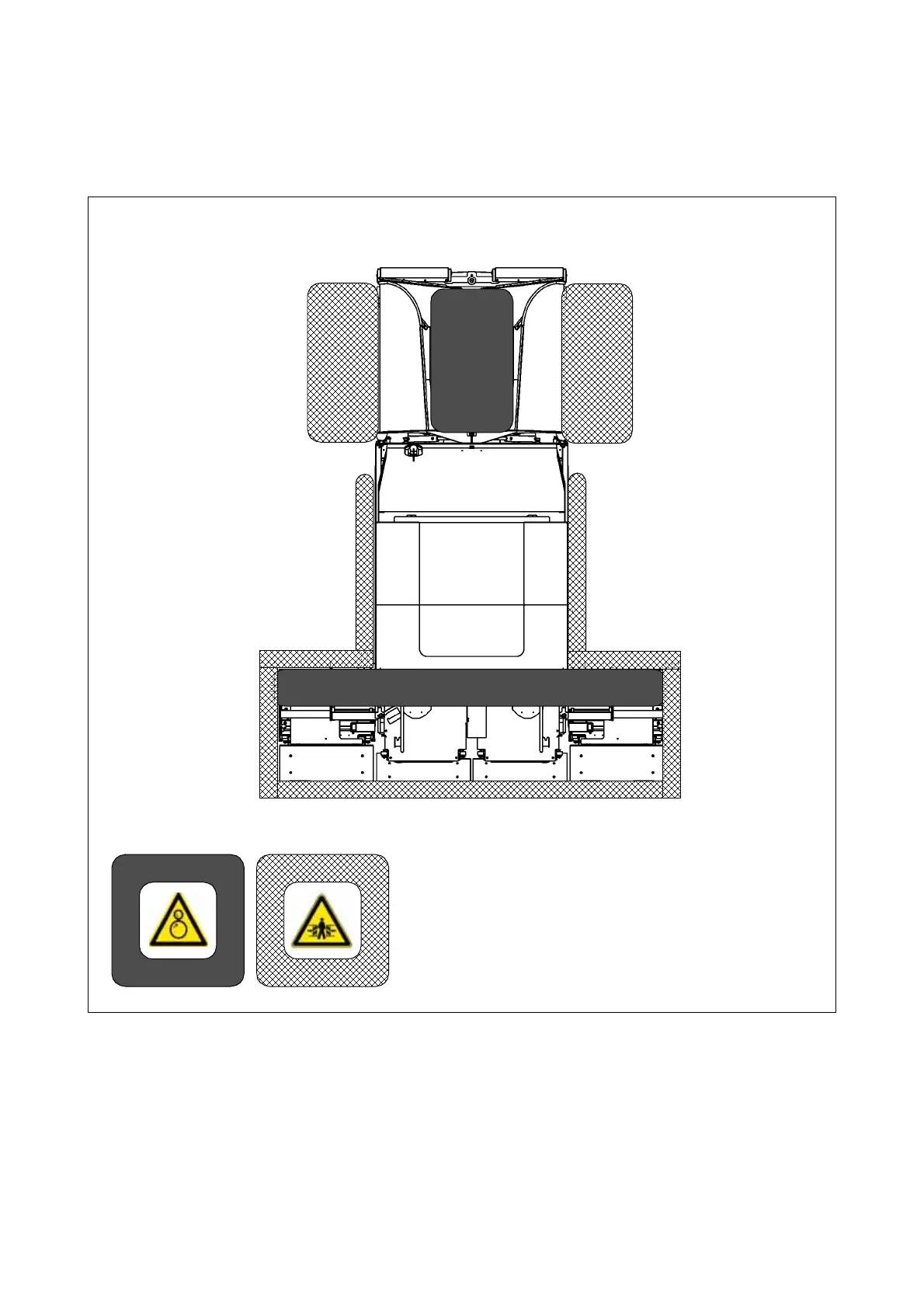

3 Danger zones

In these areas of the machine there is a danger of pulling in or crushing due to the

rotating, transporting or moving parts!
