D 3.2 Operation
1 Operating elements on the paver finisher

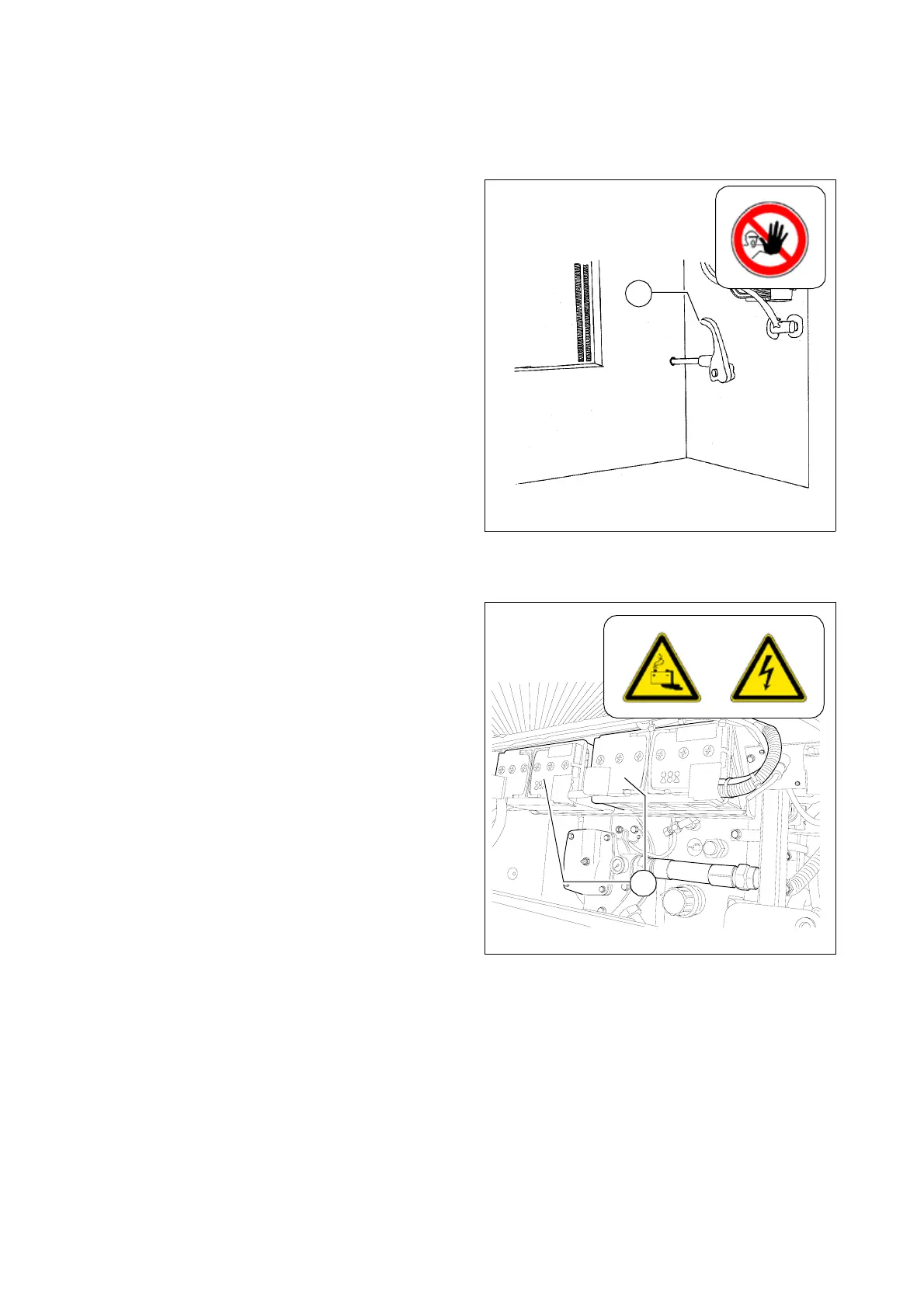

Engine hood (70)
For inspection and maintenance works
the engine compartment lid can be fully
opened for easy access. To open the lid
pull lever (a) (on the light hand side be-
hind the side lid). For this purpose both
sides of the hopper must be open
m
Secure the hinged side cover with the re-
spective support rods.
f
Open the engine hood only if the engine
is stopped. Do not touch the cooling fan
or the driven belt. (See also engine in-
structions for safety.)
f
Do not touch the hot exhaust pipe! Danger of burn!
Batteries (71)
The batteries of the 24 V system are lo-
cated under the left maintenance flap.
A
For the specifications, refer to chapter B,
”Technical Data”.
For servicing, see chapter F.
m
Heed the instructions when starting the
paver finisher externally. (see section
“Starting the paver finisher, External
starting (starting aid)“.
