D 3.2 11
D_3.2_01_GB.fm 11-18

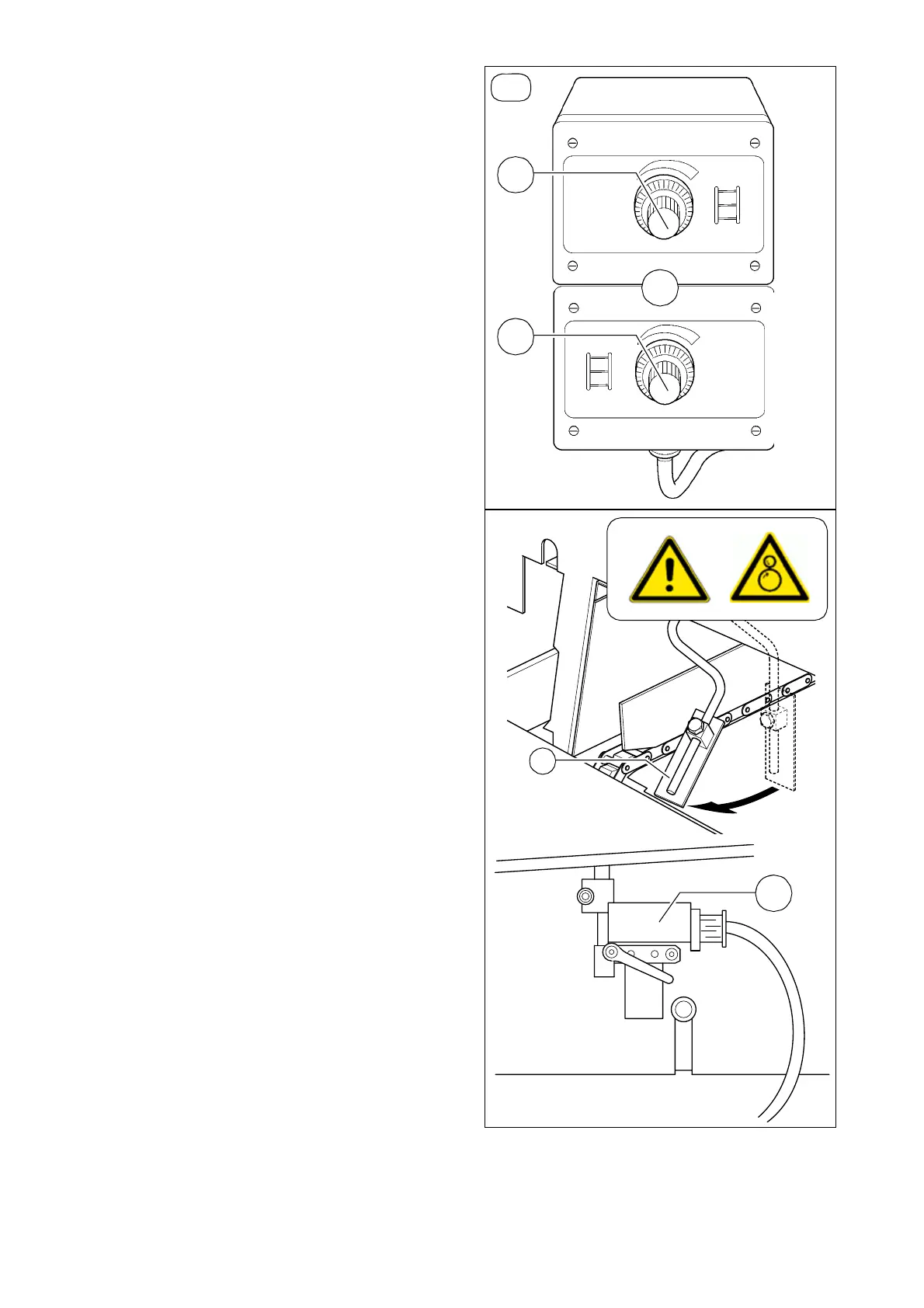

Electric setting of the transportation
volume of the conveyor (o) (88)
With this the transport volume of the
conveyor can be adjusted when me-
chanical limit switch or ultrasonic sensor
is used.
- The „0“ position of the scale corre-
sponds to the smallest adjustable vol-
ume.
- RH-side conveyor: (88a)
- LH-side conveyor: (88b)
Conveyor limit switches (89):
The mechanical conveyor limit switches
(89) or the ultrasonic conveyor limit
switches (89ao) control the material
flow at the respective conveyor half.
The conveyors should stop when the
material has roughly reached the area
below the auger tube.
A
This requires that the auger height has
been adjusted correctly (see chapter E).
F0091_A1.EPS
(o)
85d
88a
88b
F0114_A1.EPS/Ultra3.EPS
89
89a
