D 3.2 13

D_3.2_01_GB.fm 13-18

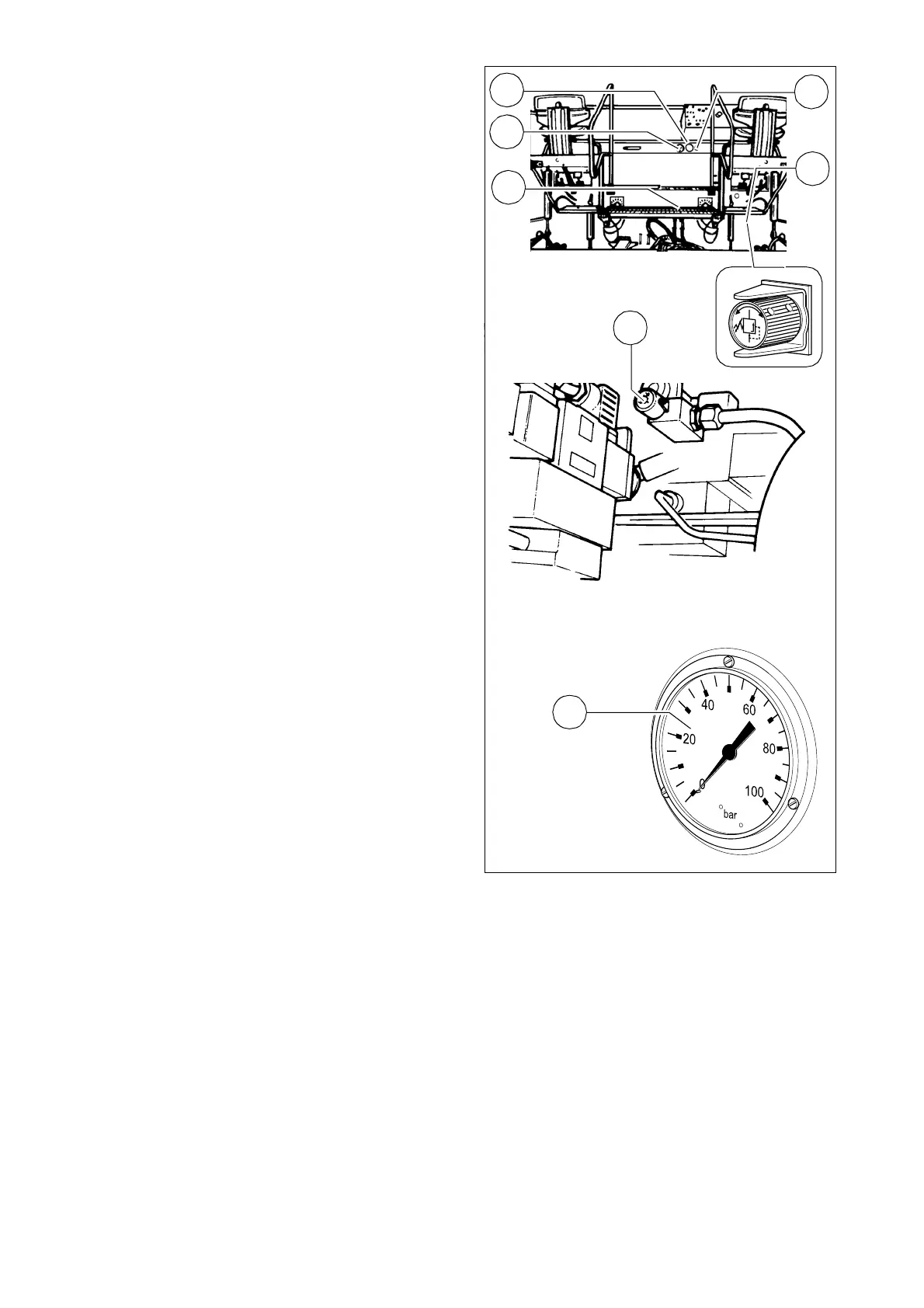

Pressure control valve for screed

charging/relieving (93) (o)

Used to adjust the pressure for addition-

al charging/relieving of the screed.

- See ”screed charging/relieving de-

vice”.

(Chapters „Operating Panel“, „Opera-

tion“).

- Pressure display: see manometer

(93b).

Pressure control valve for screed

stop with pretensioning (93a) (o)

This valve is located beneath the right-

hand bottom flap of the operator´s plat-

form.

It is used to adjust the pressure for

”screed stop with pretensioning”.

- Activation: see “screed charging/re-

lieving device”.

- Pressure display: see “manometer”

(93b).

Manometer for screed charging/re-

lieving and screed stop with preten-

sioning (93b)

Displays the pressure for

- Screed stop with pretensioning screed

stop with pretensioning when the drive lever is set to the neutral position (pressure

to be adjusted using valve (93a));

Screed charging/relieving device when the drive lever is in the third position (pressure

to be adjusted using valve (93)).

F0184_A1.TIF/Screed_Valve.eps/F0105_A1.TIF

93a

93b

94a

93a
