Dynapac F 161 W - Fuses on Operating Panel

F 8.2 19
F_8.2_01_GB.fm 19-20

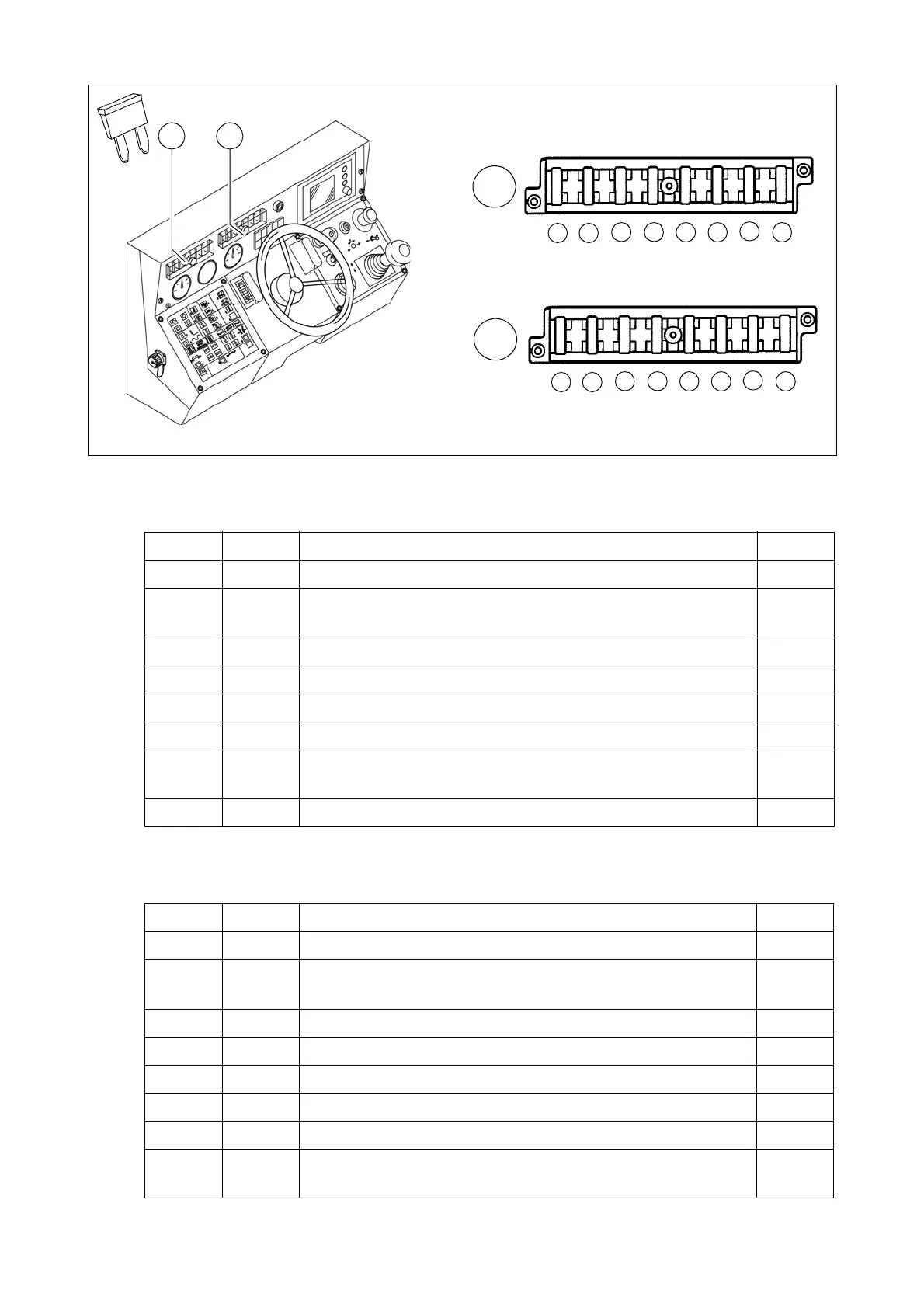

Fuses on operating panel
Fuse carrier (A)
Fuse carrier (B)
No. F A
1. 1.1 Emergency stop 7.5
2. 1.2
Monitoring equipment, relay batt. 15+,, engine
sensors, differential lock
3
3. 1.3 Display power supply 3
4. 1.4 Keyboard power supply 3
5. 1.5 Free
6. 1.6 Free
7. 1.7
Screed power supply (o), crowning adjustment (o),
moving cab
5
8. 1.8 Free
No. F. A
1. 2.1 Hazard warning flashers, flasher, left 3
2. 2.2
Hazard warning flashers, flasher, right, horn, reverse
buzzer
5
3. 2.3 Footbrake and handbrake, crowning adjustment 3
4. 2.4 High-beam headlights, left/right 7,5
5. 2.5 Low-beam headlights, right 3
6. 2.6 Low-beam headlights, left 3
7. 2.7 Parking lights, right 3
8. 2.8
Parking lights, left, instrument panel lighting
Instrument panel lighting
3
A
Bedienpult_konv_Kette_635_Fuse1/Fuse1.tif/Fuse.bmp
1 2
3 4 5 6
7
8
1 2
3 4 5 6
7
8
B
A
B
