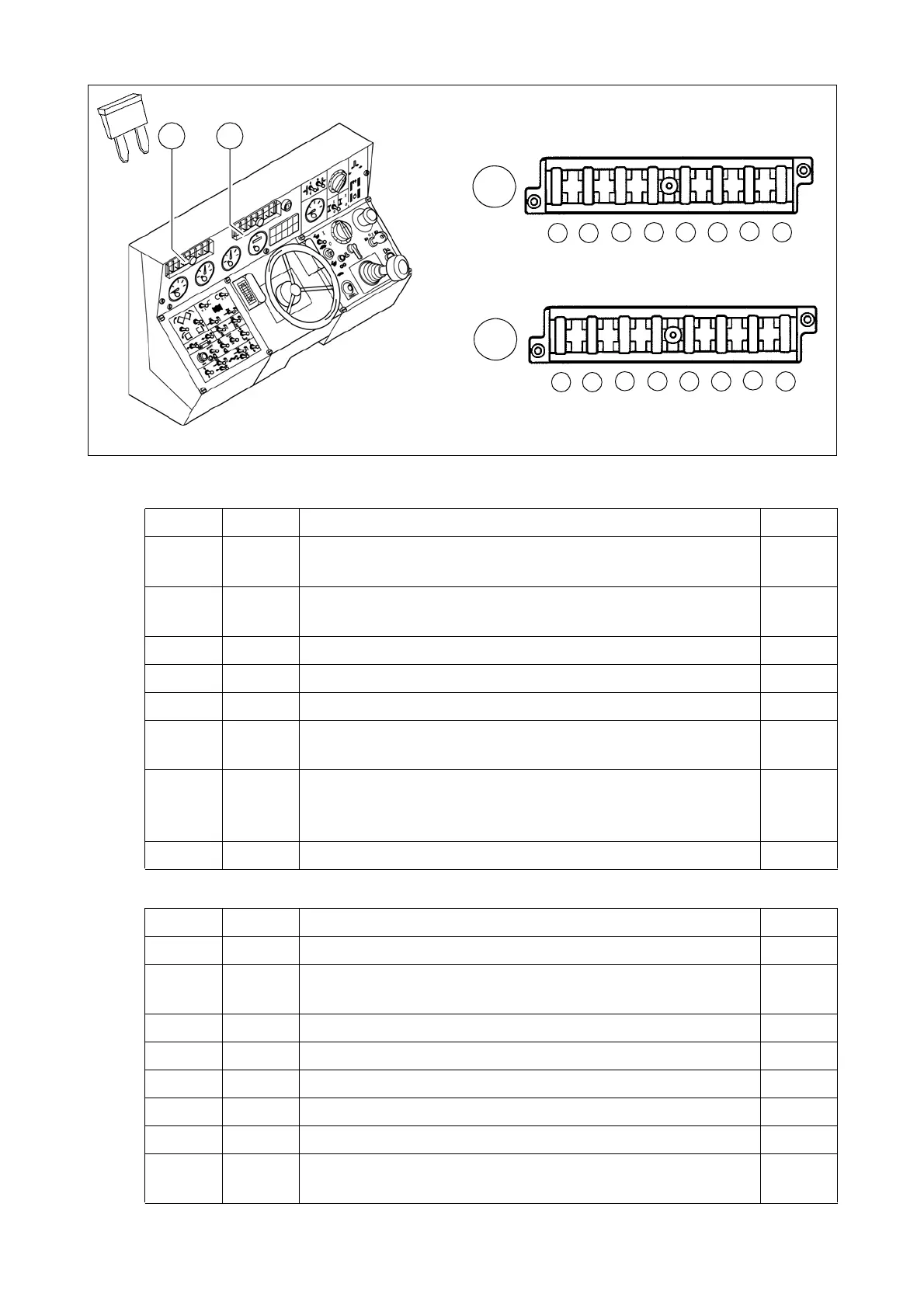

Fuses on operating panel
Fuse carrier (A)
Fuse carrier (B)
No. F. A
1. 1.1
Engine start, start interlock, idle speed, reverse buzzer
(o), reversing hazard flasher (o)
5
2. 1.2
Locking relay, monitoring equipment, sensors,
differential lock
3
3. 1.3 Levelling unit, screed stop 5
4. 1.4 Conveyor, auger, right 7.5
5. 1.5 Conveyor, auger, left 7.5
6. 1.6
Tamper, vibration, ASC On/Off, truck hitch Open/
Close, tamper overrun
3
7. 1.7
Hoppers, lifting/lowering screed, extending/retracting
screed, power supply screed, compactor lift (o),
moving cab (o), lifting/lowering auger (o)
10
8. 1.8 Emergency stop, EMR On/Off 7.5
No. F. A
1. 2.1 Hazard warning flashers, flasher, left 5
2. 2.2
Hazard warning flasher, flasher, right, auxiliary
functions, horn
3
3. 2.3 Crowning, brake light 3
4. 2.4 High-beam headlights, left/right 7,5
5. 2.5 Low-beam headlights, right 3
6. 2.6 Low-beam headlights, left 3
7. 2.7 Parking lights, right 3
8. 2.8
Parking lights, left, instrument panel lighting,
instrument lighting
3
