Parameters
04/10 MN04020001Z-EN
110
Example C
Comparable example A.
P10.10 = 0
P10.9 = 2: Execute program cycle once in steps.
Each fixed frequency (P10.1 - P10.10) is called individually in the
program sequence. After the assigned run times (P10.11 - P10.18)
have elapsed, the output frequency is set to zero according to the
Stop function (P6.8) before the numerically next fixed frequency
value is executed.
A clockwise rotating field (REV) can also be assigned here to the
individual fixed frequencies as a decimal program number at
parameter P10.10 (see table ).

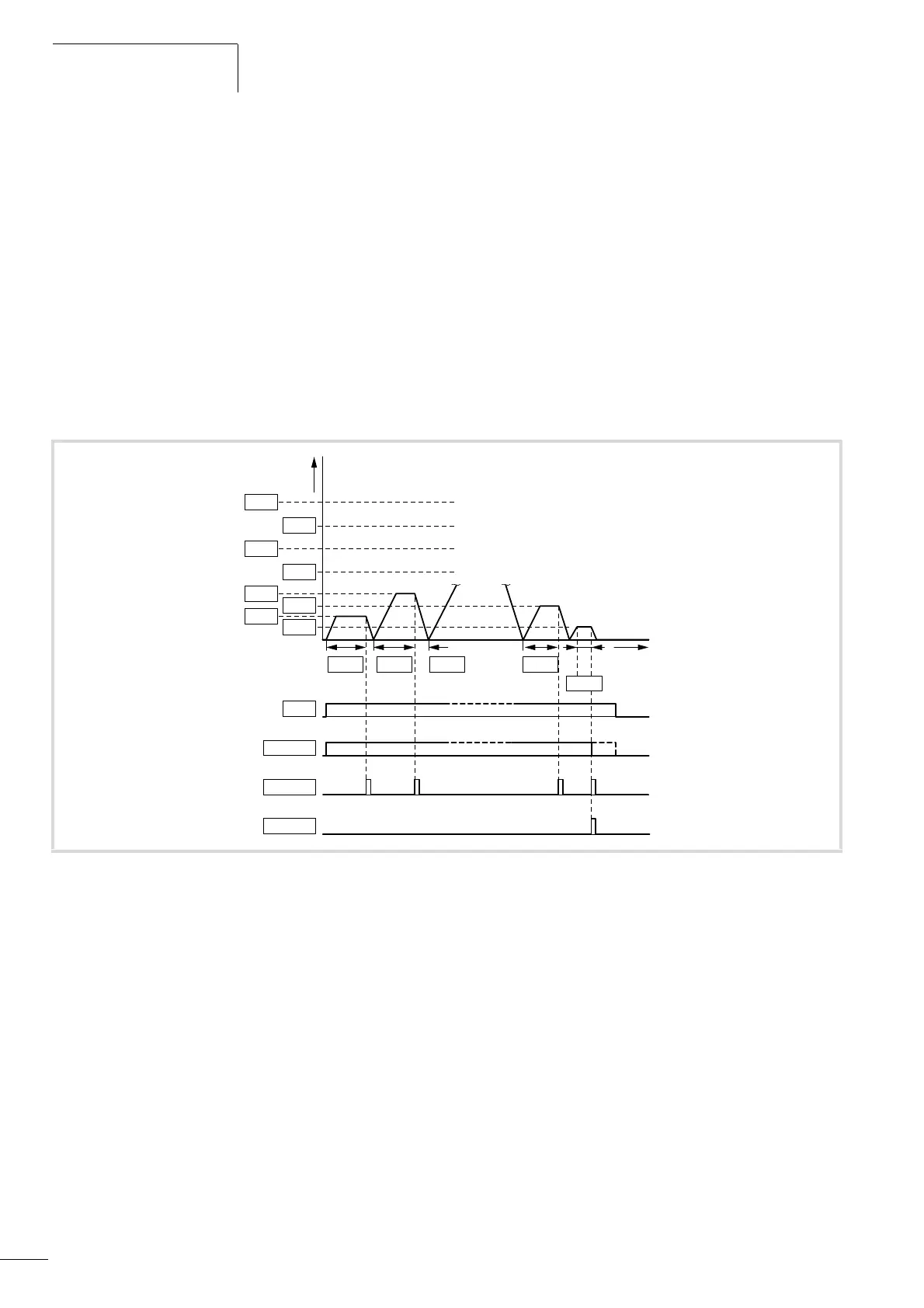

Figure 96: Example C, program cycle executed once in steps (P10.9 = 2, P10.10 = 0)
P10.6
P10.5
P10.4
P10.7
P10.8
P3.21
P10.17
P10.18
P10.13P10.13P10.11
f
[Hz]
FWD
P5.3 = 18
P5.2 = 17
P5.1 = 16
P10.3
P10.2
P10.1
t
a
