Eaton MMX34AA9D0 Series User Manual

04/10 MN04020001Z-EN
Motor chokes
171
Motor chokes
The motor reactor is in the output of the frequency inverter. Its
rated operational current must always be greater than/equal to the
rated operational current of frequency inverter.
Table 19: Allocation of the motor reactors for frequency inverters of the 200-V class
(maximum power supply: 750 V ±0%, maximum permitted frequency: 200 Hz)

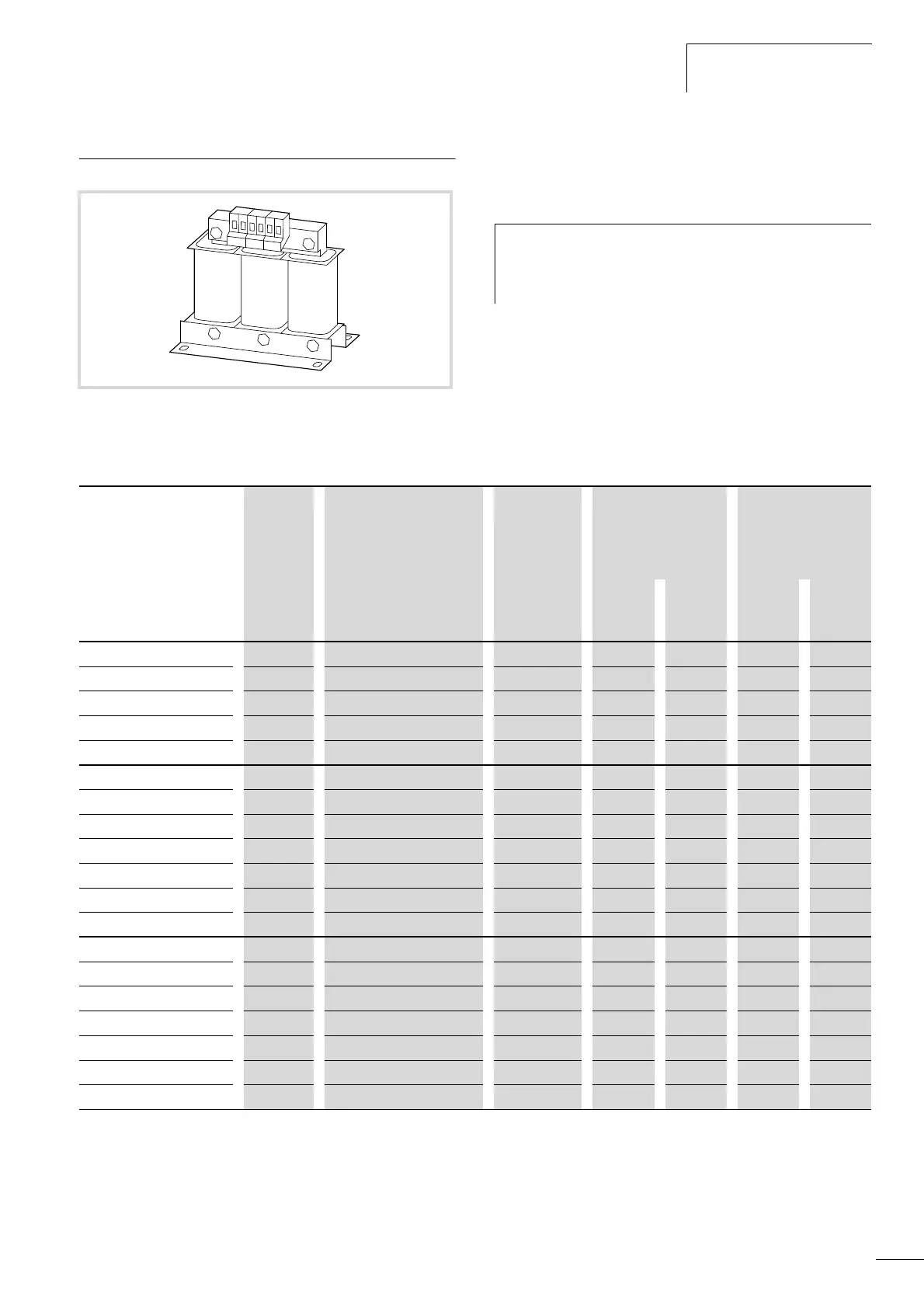

Figure 130: Motor reactors DEX-LM…
h
When multiple motors are connected in parallel in the
motor reactor, the rated operational current of the motor
reactor must be greater than the total current of all
motors.
Part no.
M-Max
TM
Rated
operation
al current
Part no. of the allocated
motor reactor (to 50 °C)
Rated
operational
current of the
motor
reactor
Assigned motor
rating
(230 V, 50 Hz)
Assigned motor
rating
(230 V, 60 Hz)
I
e
I
2
P I
M
P I
M
[A] [A] [kW] [A]
1)
[HP] [A]
1)
MMX11AA1D7… 1.7 DEX-LM3-005 5 0.25 1.4 1/3
2)
1.6
2)
MMX11AA2D4… 2.4 DEX-LM3-005 5 0.37 2 1/2 2.2
MMX11AA2D8… 2.8 DEX-LM3-005 5 0.55 2.7 1/2 2.2
MMX11AA3D7… 3.7 DEX-LM3-008 8 0.75 3.2 3/4 3.2
MMX11AA4D8… 4.8 DEX-LM3-011 11 1.1 4.6 1 4.2
MMX12AA1D7…
1.7 DEX-LM3-005 5 0.25 1.4 1/3
2)
1.6
2)
MMX12AA2D4… 2.4 DEX-LM3-005 5 0.37 2 1/2 2.2
MMX12AA2D8… 2.8 DEX-LM3-005 5 0.55 2.7 1/2 2.2
MMX12AA3D7… 3.7 DEX-LM3-005 5 0.75 3.2 3/4 3.2
MMX12AA4D8… 4.8 DEX-LM3-005 5 1.1 4.6 1 4.2
MMX12AA7D0…
7 DEX-LM3-008 8 1.5 6.3 2 6.8
MMX12AA9D6…
9.6 DEX-LM3-011 11 2.2 8.7 3 9.6
MMX32AA1D7… 1.7 DEX-LM3-005 5 0.25 1.4 1/3
2)
1.6
2)
MMX32AA2D4… 2.4 DEX-LM3-005 5 0.37 2 1/2 2.2
MMX32AA2D8…
2.8 DEX-LM3-005 5 0.55 2.7 1/2 2.2
MMX32AA3D7… 3.7 DEX-LM3-005 5 0.75 3.2 3/4 3.2
MMX32AA4D8… 4.8 DEX-LM3-005 5 1.1 4.6 1 4.2
MMX32AA7D0… 7 DEX-LM3-008 8 1.5 6.3 2 6.8
MMX32AA011… 9.6 DEX-LM3-011 11 2.2 8.7 3 9.6
1) The rated operational currents of the allocated motor outputs apply for normal four-pole, internally and externally ventilated three-phase
asynchronous motors with 1500 min
-1
(at 50 Hz) and 1800 min
-1
(at 60 Hz).
2) Guide value (calculated), no standard rating.
