Motor and Application
29
Motor and circuit type
The motor’s stator winding can be connected in a star or delta
configuration in accordance with the rated operational data on the
nameplate.
The three-phase motor with the rating plate based on figure 13,
can be run in a star or delta connection.
The operational characteristic curve is determined by the ratio of
motor voltage and motor frequency in this case.
87-Hz Characteristic curve
In the delta circuit with 400 V and 87 Hz, the motor in figure 13
was released with 3 times-fold output (~ 1.3 kW).
Because of the higher thermal loading, only utilizing the next
higher motor output according to the list (1.1 kW) is
recommended. The motor (in this example) therefore still has
1.47-fold higher output compared with the listed output
(0.75 kW).
With the 87-Hz characteristic curve, the motor also works in the
range from 50 to 87 Hz with an unattenuated field. The pull-out
torque remains at the same level as in mains operation with 50 Hz.
The following table 2 shows the allocation of possible frequency
inverters depending on the mains voltage and the type of circuit.
Table 2: Assignment of frequency inverters to example motor circuit (figure 15)

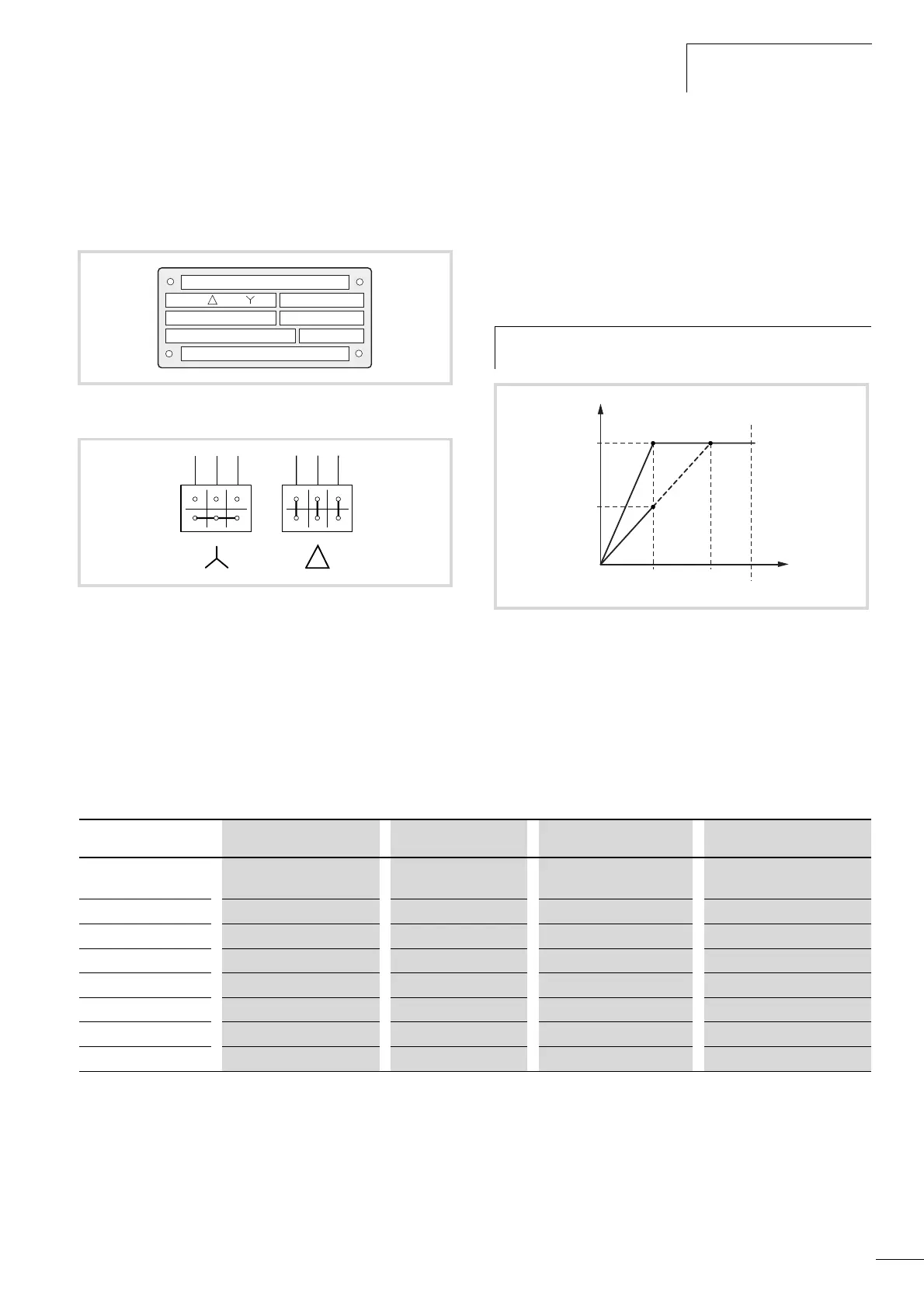

Figure 13: Example of a motor ratings plate
Figure 14: Circuit types: Star, Delta
/ 400 V230
3.5 / 2
0,75S1
0.79
ϕ
cos
kW
rpm
1430 50 Hz
A
U1 V1 W1
W2 U2 V2
U1 V1 W1
W2 U2 V2
h
The heat class of the motor must be at least F in 87-Hz
operation.
Figure 15: U/f-characteristic curve
a Star connection: 400 V, 50 Hz
b Delta connection: 230 V, 50 Hz
c Delta connection: 400 V, 87 Hz
0
8750
400
U
2
[V]
f [Hz]
f
max
230
ac
b
Frequency inverters MMX12AA3D7… MMX32AA3D7… MMX34AA2D4… MMX34AA4D3…
Rated operational
current
3.7 A 3.7 A 2.4 A 4.3 A
Mains voltage
1 AC 230 V 3 AC 230 V 3 AC 400 V 3 AC 400 V
Motor circuit
Delta Delta Star Delta
U/f-characteristic curve b b a c
Motor current 3.5 A 3.5 A 2.0 A 3.5 A
Motor voltage 3AC 0-230V 3AC 0-230V 3AC 0-400V 3AC 0-230V
Motor speed 1430 min
-1
1430 min
-1
1430 min
-1
2474 min
-1 1)
Motor frequency 50 Hz 50 Hz 50 Hz 87 Hz
1)
1) Note the permitted limit values of the motor!
