Eaton MMX34AA9D0 Series User Manual

04/10 MN04020001Z-EN
Mains contactors
159
Mains contactors
h
The mains contactor shown here considers the input-side
rated operating current I
LN
of the frequency inverter
without a mains reactor. Their selection is based on the
thermal current (AC-1).
h
Caution!
Debounced inputs may not be used in the safety
circuit diagram.
The inching range is not permitted via the mains contactor
(Pause time f 60 s between switching off and on).
h
Technical data on the mains contactors can be found in
the main catalog HPL, Contactors DILEM and DILM7.

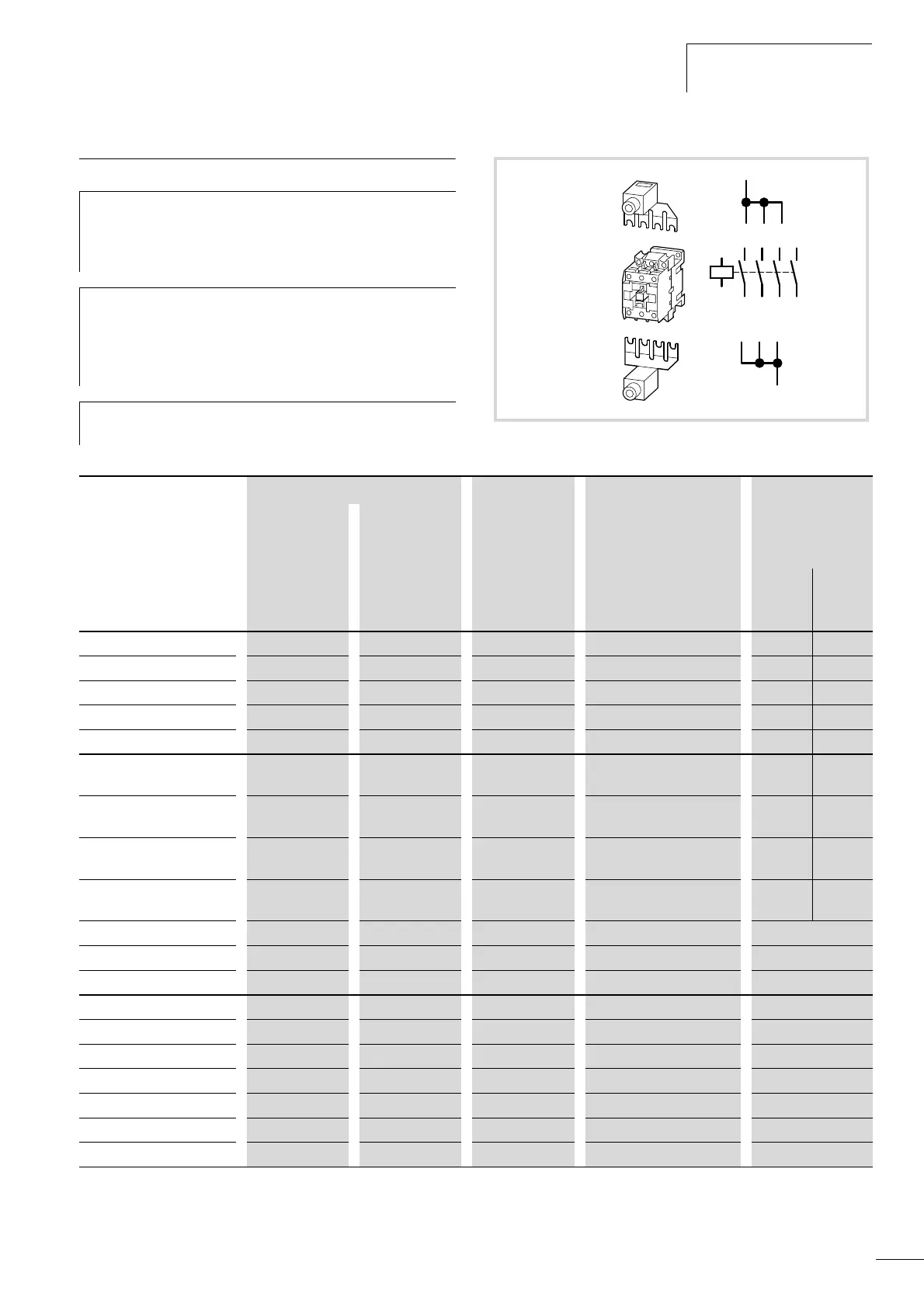

Figure 117: Mains contactor at single-phase connection
DILM12-XP1
P1DILEM
DILM
DILEM
DILM12-XP1
P1DILEM
2
35
4
6
A1
A2
1
13
14
Part no.
M-Max
TM
Rated voltage Rated input
current without
mains reactor
Part no. of the allocated
mains contactor
Conventional
thermal current
(DILEM, DILM7)
I
th
= I
e
AC-1 at
+50 °C
(50 Hz) (60 Hz)
U
LN
U
LN
I
LN
I
N
I
N
[A] [A] [A]
MMX11AA1D7N0-0 1 AC 120 V 1 AC 120 V 9.2 DILM7 + DILM12-XP1 20 21
MMX11AA2D4N0-0 1 AC 120 V 1 AC 120 V 11.6 DILM7 + DILM12-XP1 20 21
MMX11AA2D8N0-0
1 AC 120 V 1 AC 120 V 12.4 DILM7 + DILM12-XP1 20 21
MMX11AA3D7N0-0 1 AC 120 V 1 AC 120 V 15 DILM7 + DILM12-XP1 20 21
MMX11AA4D8N0-0 1 AC 120 V 1 AC 120 V 16.5 DILM7 + DILM12-XP1 20 21
MMX12AA1D7… 1 AC 230 V 1 AC 240 V 4.2 DILEM-10
1)
DILM7
20 21
MMX12AA2D4…
1 AC 230 V 1 AC 240 V 5.7 DILEM-10
1)
DILM7
20 21
MMX12AA2D8…
1 AC 230 V 1 AC 240 V 6.6 DILEM-10
1)
DILM7
20 21
MMX12AA3D7… 1 AC 230 V 1 AC 240 V 8.3 DILEM-10
1)
DILM7
20 21
MMX12AA4D8… 1 AC 230 V 1 AC 240 V 11.2 DILM7 21
MMX12AA7D0… 1 AC 230 V 1 AC 240 V 14.1 DILM7 21
MMX12AA9D6… 1 AC 230 V 1 AC 240 V 15.8 DILM7 21
MMX32AA1D7N0-0 3 AC 230 V 3 AC 240 V 2.7 DILEM-10 20
MMX32AA2D4N0-0 3 AC 230 V 3 AC 240 V 3.5 DILEM-10 20
MMX32AA2D8N0-0 3 AC 230 V 3 AC 240 V 3.8 DILEM-10 20
MMX32AA3D7N0-0 3 AC 230 V 3 AC 240 V 4.3 DILEM-10 20
MMX32AA4D8N0-0 3 AC 230 V 3 AC 240 V 6.8 DILEM-10 20
MMX32AA7D0N0-0 3 AC 230 V 3 AC 240 V 8.4 DILEM-10 20
MMX32AA9D6N0-0 3 AC 230 V 3 AC 240 V 13.4 DILM7 21
1) The use of paralleling links (P1DILEM) is suggested when using the DILEM-10 for even flow path loads.
