Appendix
04/10 MN04020001Z-EN
156
XMX-NET-PD-A, XMX-NET-PS-A
PROFIBUS DP fieldbus interface card
XMX-NET-PD-A and XMX-NET-PS-A enable the connection (slave)
of frequency inverters of the M-Max™ series to the standard
PROFIBUS DP fieldbus.
Depending on the variant used, the fieldbus connection is
implemented via pluggable, 5-pole screw terminals or a 9-pole
Sub-D plug connection.
Technical data:
• Communication protocol: Profidrive (Profibus profile for
variable speed drives).
• Data transfer: RS485, half-duplex.

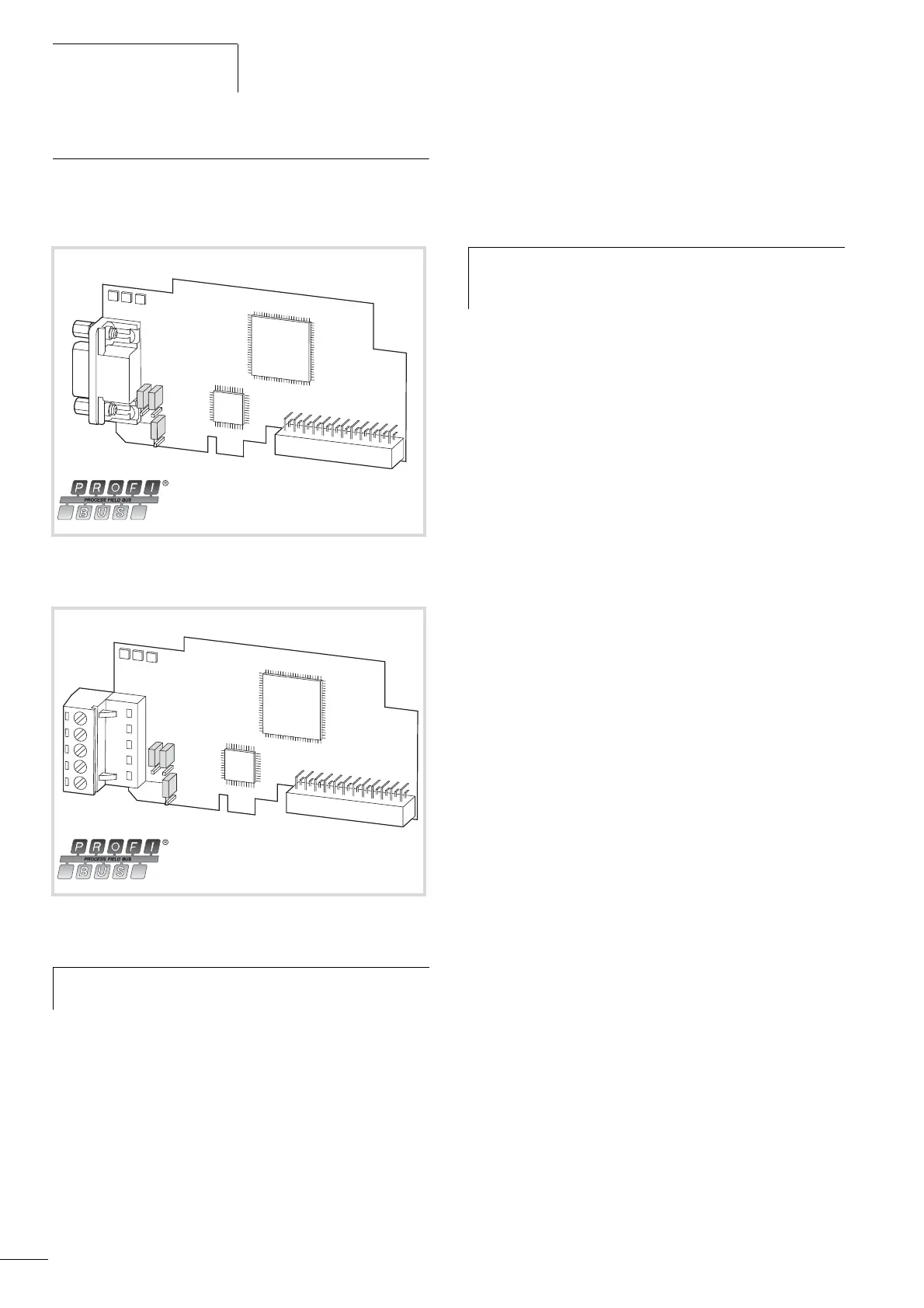

Figure 115: XMX-NET-PD-A PROFIBUS DP fieldbus interface card
with 9-pole Sub-D plug connection
Figure 116: XMX-NET-PS-A PROFIBUS DP fieldbus interface card
with pluggable, 5-pole screw terminals
h
The PROFIBUS DP fieldbus interface card XMX-NET-PD-A
is not supplied with the M-Max™ frequency inverter.
h
The optional MMX-NET-XA mounting frame is required
for mounting and connecting the MMX frequency
inverter.
