Description of the M-Max
TM
The following drawing shows an M-Max
TM
device.
Features
The M-Max
TM
frequency inverter convert the voltage and
frequency of an existing AC network into a DC voltage. This DC
voltage is used to generate a three-phase AC voltage with
adjustable frequency and assigned amplitude values for the
variable speed control of three-phase asynchronous motors.

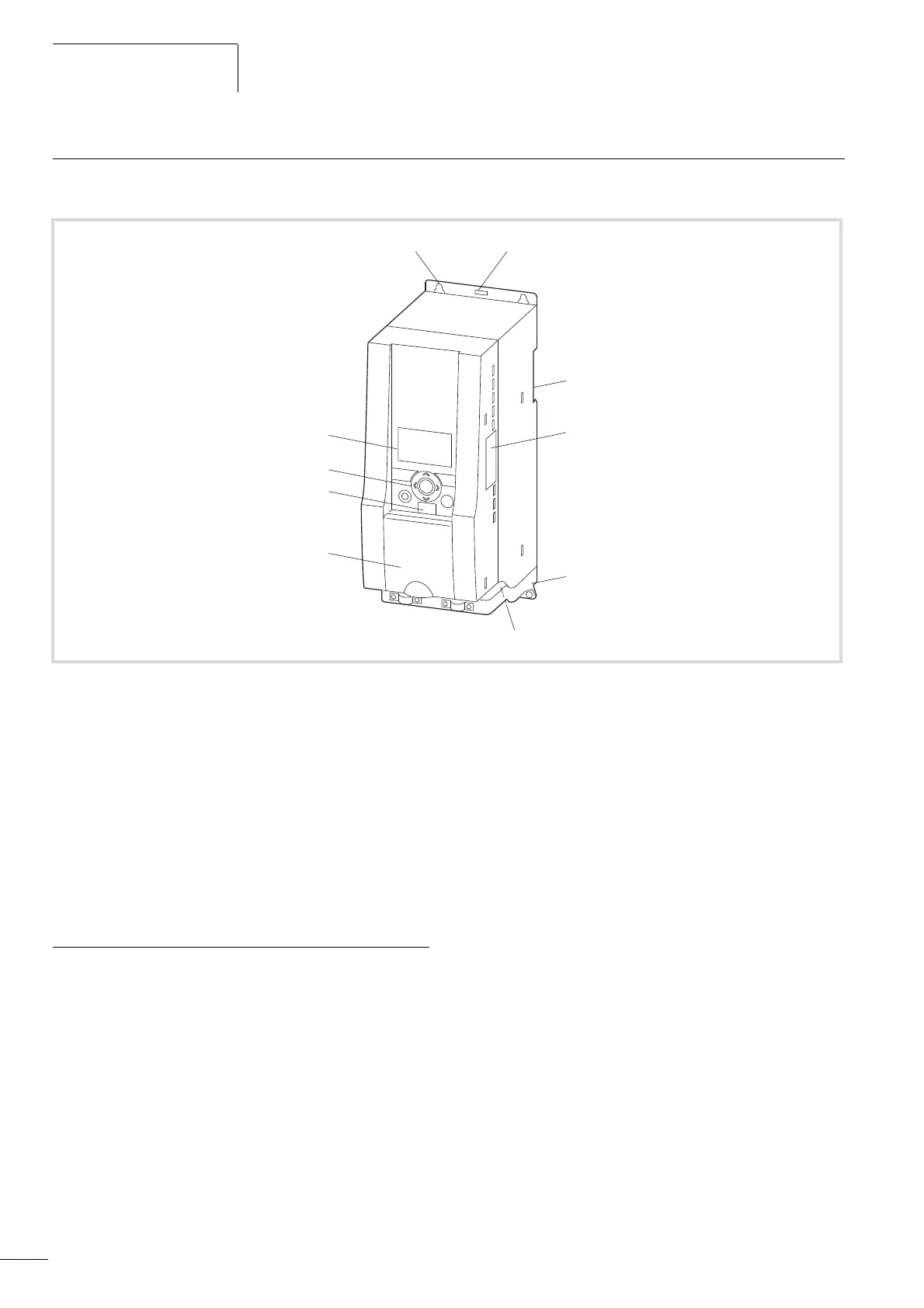

Figure 6: Description of the M-Max
TM
a Mounting holes (screw fastening)
b Release (removal from mounting rail)
c Recess for mounting on mounting rail (DIN EN 50022-35)
d Interface for fieldbus connection modules (Option, MMX-NET-XA)
e EMC installation accessories
f Power section terminals
g Cover flap of control signal terminals and microswitches
h Interface for PC connection module MMX-COM-PC (Option)
i Keypad with 9 control buttons
j Display unit (LCD)
g
h
i
j
a
b
c
d
f
e
I
OK
BACK
RESET
LOC
REM
