04/10 MN04020001Z-EN
Mains chokes
169
Mains chokes
Allocating the mains reactors is done according to the rated input
currents of the frequency inverter (without upstream mains
reactor).

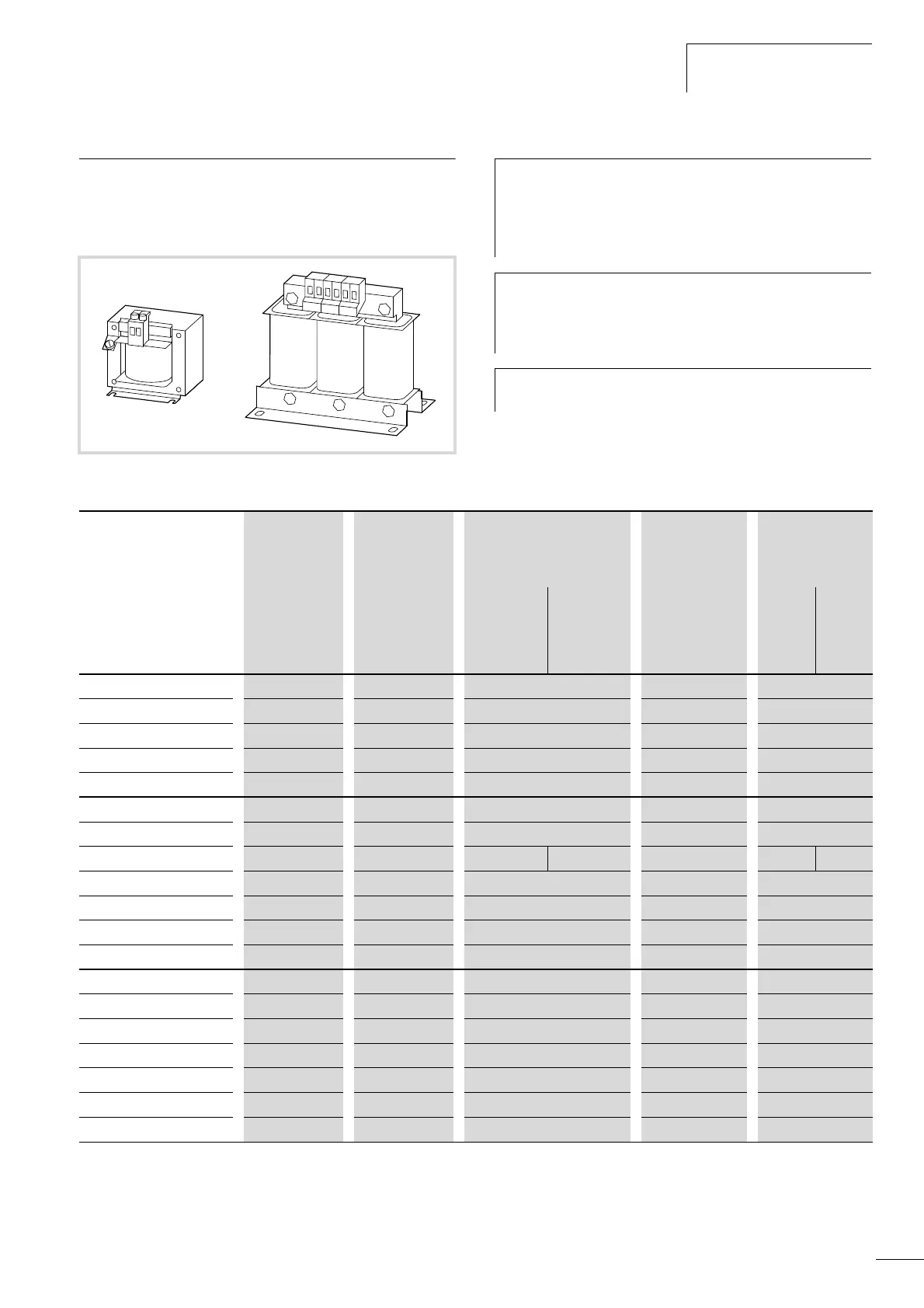

Figure 129: Line reactors DEX-LN…
h
If the frequency inverter is operating at its rated current
limit, the maximum possible output voltage of the
frequency inverter (U
2
) is reduced to around 96 % of the
mains voltage (U
LN
) due the mains chokes at a u
K
value of
around 4%.
h
Line reactors reduce the magnitude of the current
harmonics up to about 30 % and increase the lifespan of
frequency inverters and upstream-connected switching
devices.
h
For technical data for the DEX-LN series mains reactors,
see installation instructions AWA8240-1711.
Part no.
M-Max
TM
Rated voltage
of the M-
Max
TM
Rated input
current
without mains
reactor
Part no. of the allocated
mains reactor at an
ambient temperature of
Maximum input
voltage of the
mains chokes
Rated operational
current of the
mains reactor
40 °C 50 °C 40 °C 50 °C
I
LN
U
LN
(50/60 Hz) I
N
I
N
[A] [V] [A] [A]
MMX11AA1D7… 1 AC 120 V 9.2 DEX-LN1-013 240 V +10 % 13
MMX11AA2D4… 1 AC 120 V 11.6 DEX-LN1-013 240 V +10 % 13
MMX11AA2D8… 1 AC 120 V 12.4 DEX-LN1-013 240 V +10 % 13
MMX11AA3D7… 1 AC 120 V 15 DEX-LN1-018 240 V +10 % 18
MMX11AA4D8… 1 AC 120 V 16.5 DEX-LN1-018 240 V +10 % 18
MMX12AA1D7… 1 AC 230 V 4.2 DEX-LN1-006 240 V +10 % 6
MMX12AA2D4… 1 AC 230 V 5.7 DEX-LN1-006 240 V +10 % 6
MMX12AA2D8… 1 AC 230 V 6.6 DEX-LN1-006 DEX-LN1-009 240 V +10 % 6 9
MMX12AA3D7…
1 AC 230 V 8.3 DEX-LN1-009 240 V +10 % 9
MMX12AA4D8… 1 AC 230 V 11.2 DEX-LN1-013 240 V +10 % 13
MMX12AA7D0… 1 AC 230 V 14.1 DEX-LN1-018 240 V +10 % 18
MMX12AA9D6… 1 AC 230 V 15.8 DEX-LN1-018 240 V +10 % 18
MMX32AA1D7… 3-phase 230 V 2.7 DEX-LN3-004 240 V +10 % 4
MMX32AA2D4… 3-phase 230 V 3.5 DEX-LN3-004 240 V +10 % 4
MMX32AA2D8… 3-phase 230 V 3.8 DEX-LN3-004 240 V +10 % 4
MMX32AA3D7… 3-phase 230 V 4.3 DEX-LN3-006 240 V +10 % 6
MMX32AA4D8… 3-phase 230 V 6.8 DEX-LN3-010 240 V +10 % 10
MMX32AA7D0… 3-phase 230 V 8.4 DEX-LN3-010 240 V +10 % 10
MMX32AA011… 3-phase 230 V 13.4 DEX-LN3-016 240 V +10 % 16
