04/10 MN04020001Z-EN
Setpoint input (REF)
133
3 If the supply voltage is switched on with the KEYPAD control
level set, the MON menu item is activated first. The set display
value is shown in automatic alternation (factory setting : M.1.1
m l 0.00 Hz).
L
Display in automatic alternation
M
Actuate the BACK/RESET, Íand OK buttons in succession. The
entry level is then reactivated (see sequence 2).
4 The two arrow buttons (< or >) are used to change the rotating
direction (FWD, REV).
FWD
REV
The rotating direction change is carried out in the factory setting
(P6.14 = 0) with an automatic stop at 0 Hz. For a direct
changeover (FWD/REV) you must set parameter P6.14 = 1.
Note: The frequency of the REV rotating field direction is not
displayed with a negative sign.
Note: When the setpoint entry is active (flashing number
display), the arrow buttons are used to change the entry
locations (Cursor).
Sequen
ce

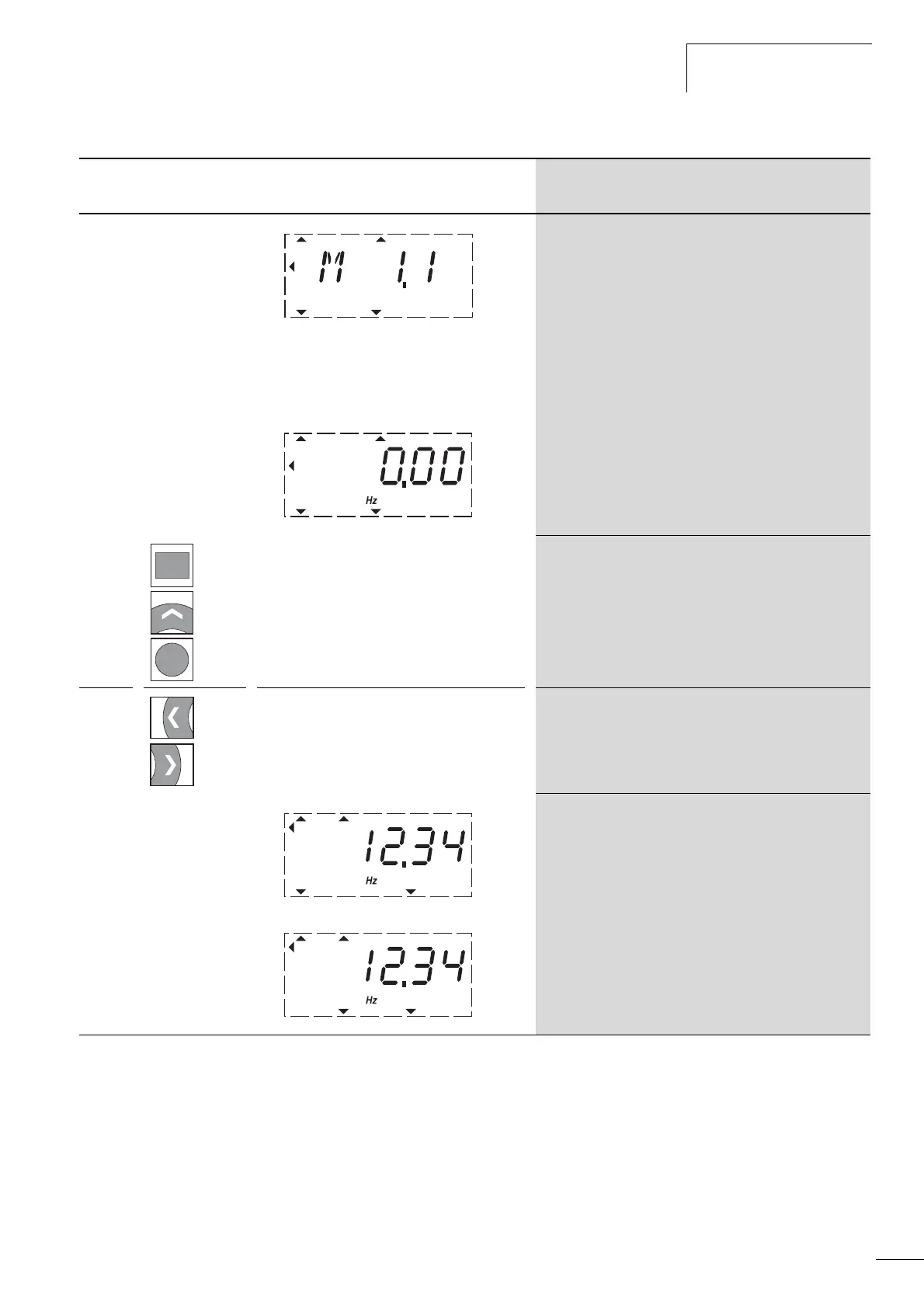

Commands Display
Description
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
BACK
RESET
OK
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
