XS series operating manual
XS user manual v0.55 - 147 -

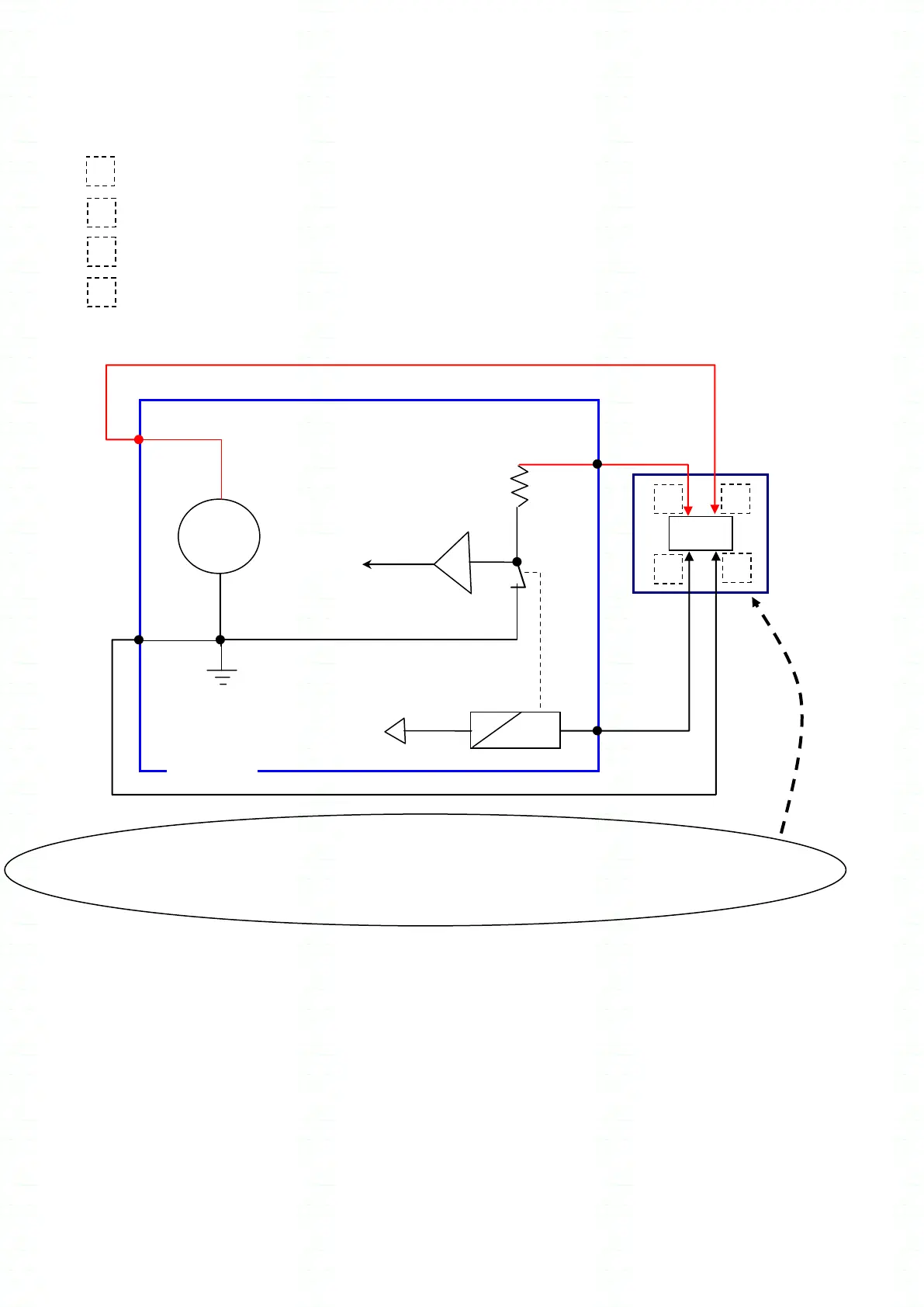

Schematic diagram of the option
: Voltage re-reading HV lead.
: High voltage generator HV lead.
: Voltage re-reading return lead.
: Return lead (GND) from the high voltage generator.
Customer interface: It is the connection parts of the test piece (DUT) that need to make the
connections between points 1 and 2 and points 3 and 4.
+24V
GND
Voltage re-read
Shunt
voltage
DUT
HV
0V
4
3
2
1
RE1
~
HV
XS
1
2
3
4
