XS series operating manual
XS user manual v0.55 - 72 -
9 Ground continuity resistance measurement
From the initialization menu press on the [GROUND] or on the [FUNCTION] then [GROUND] function
key to get the menu shown in figure 9.1.
The main test parameters are recalled on the bottom line of the LCD screen.

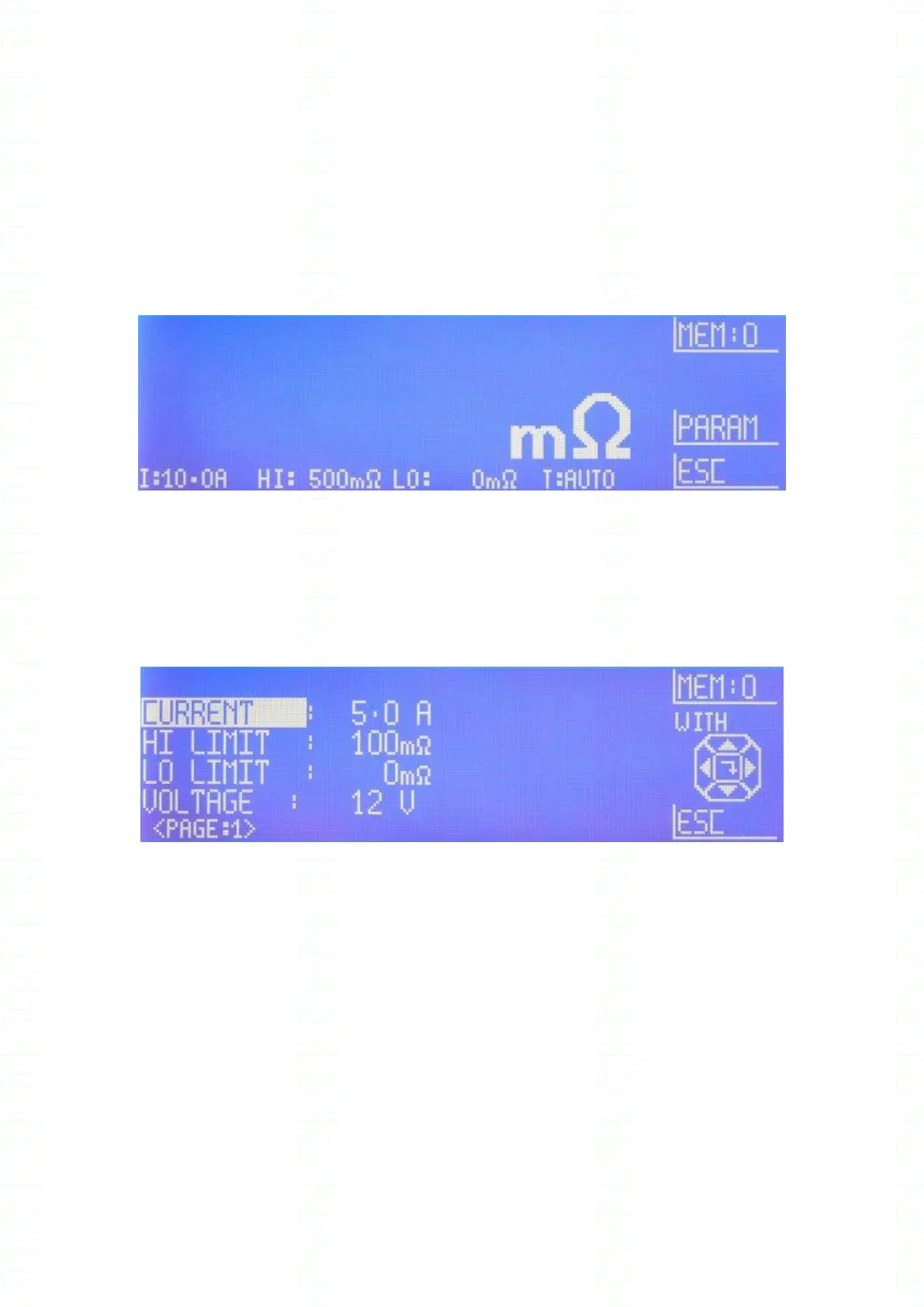

Fig 9.1
Setting
To modify these parameters, press on the [PARAM] function key of this menu. If the message
[ACCESS DENIED] is displayed, please refer to section PARAMETER ACCESS CONTROL
Then the display shows :
Fig 9.2
