XS series operating manual
XS user manual v0.55 - 91 -

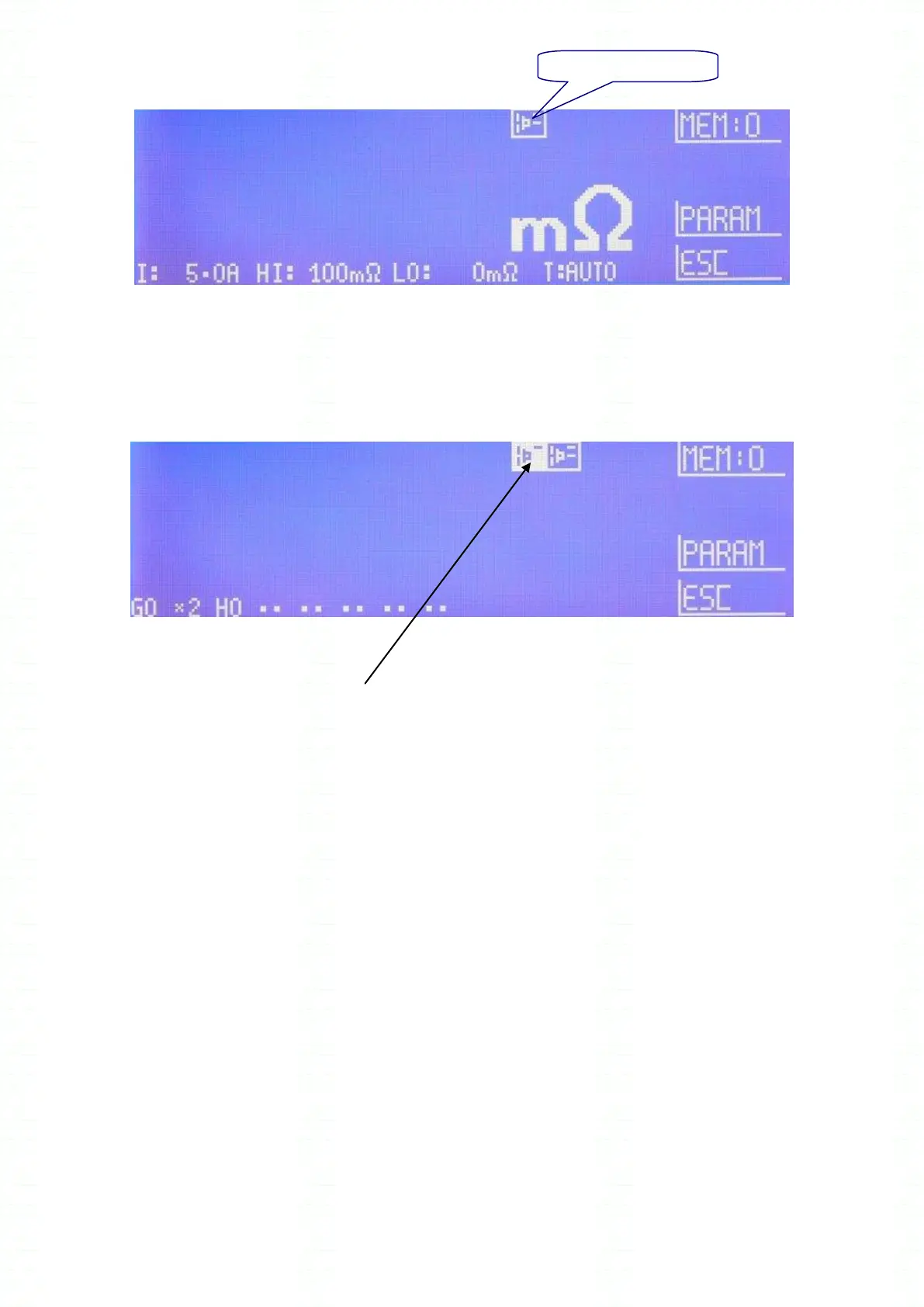

Fig 11.4
Specific case for the sequence (SXS50 & 500)
Sometime the Sequence needs the use of 2 remote control accessories.
Considering a sequence with multiple ground continuity test followed by a hipot test .
Fig 11.5
At the sequence start, the unit inhibits the accessories which not compatible with the measurement
function first step.
In our example, the type 1 accessory is inhibited (icon in reverse video mode).
Therefore it is not possible to start the sequence from the remote control accessory dedicated to
the hipot or insulation resistance test.
To summarize:
As soon as a remote control accessory is connected and accepted by the unit, the
MEASUREMENT green push button is inhibited.
Measurement start is only possible from the correct accessory regarding the measurement
type described in the first line of the sequence ( LINE 1)
According to the measurement type the remote control accessories are in operation or not.
