XS 500VA DC current curves (RXS506, DXS506, SXS506)

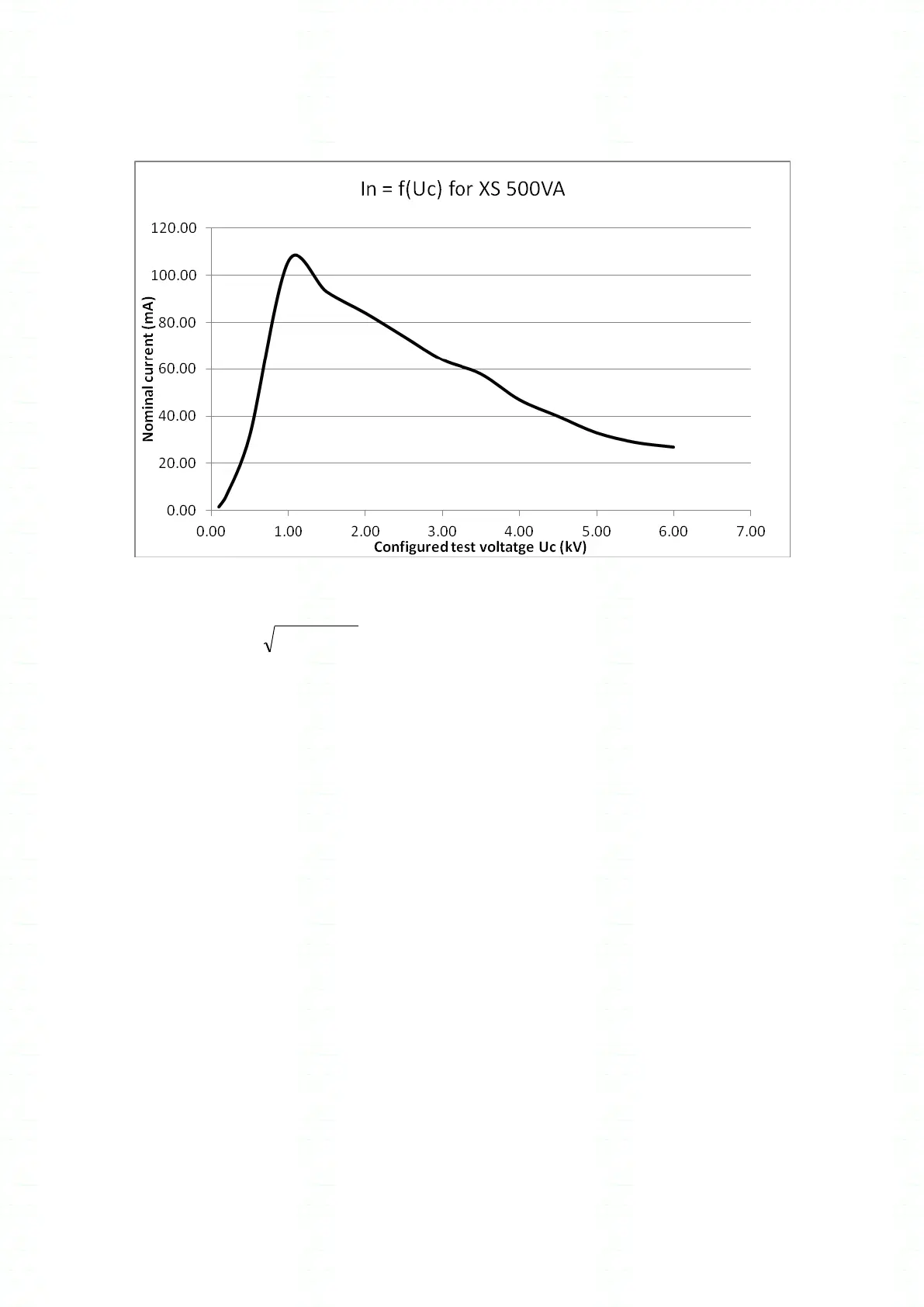

Nominal current vs configured test voltage for XS 500VA devices
The nominal current In was measured with a multi-meter set on true RMS mode (AC+DC),
which means that
22
nACnDCn
III 
(
nDC
I
being the average value of the nominal current and
nAC
I
the RMS value of the AC part of the nominal current).
Warning! The current values displayed on the XS screen slightly differ from the true RMS
values of the ouput current.
The voltage values used to determine the In currents are the ones displayed by the XS.
