XS series operating manual
XS user manual v0.55 - 85 -
Sequence with manual control
It is possible to control manually the sequence (see SETUP menu, line SEQUENCE=MANUAL)
In our example:

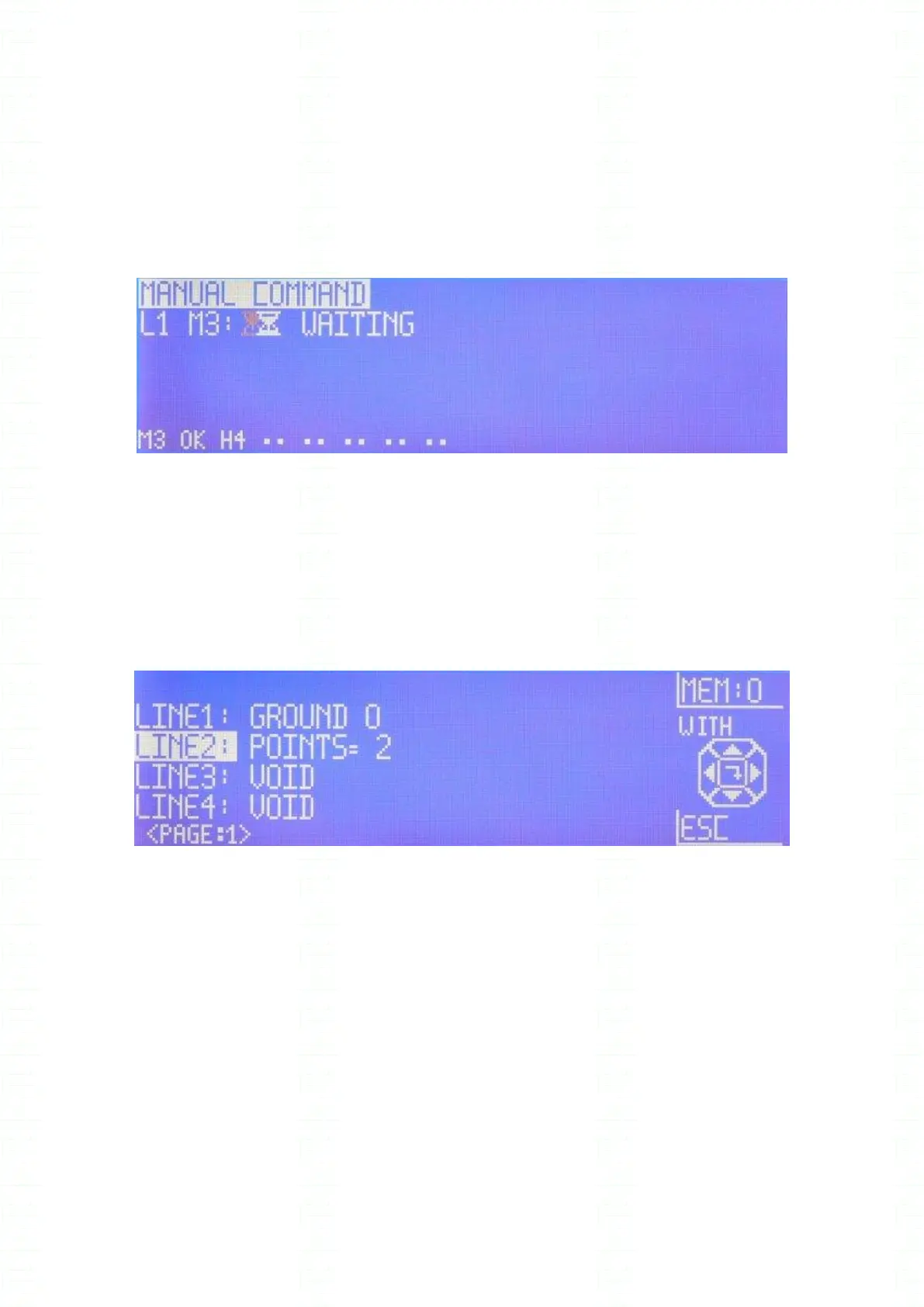

The unit performs the first function (Megohm 3), then it stays in standby mode and displays:
Fig 10.11
The unit waits for the operator pressing on the ENTER key.
Multiple ground continuity
According to the specimen under test it may be necessary to perform several ground continuity
measurements on several measurement points.
This feature is called Multiple ground continuity and it is displayed as follows:
Fig 10.12
In the above example, the operator has to test with the same parameters, consecutively 2 ground
points.
The minimum number of ground continuity test points is 2 and the maximum is 99.
