XS series operating manual
XS user manual v0.55 - 46 -
Remote trigger mode

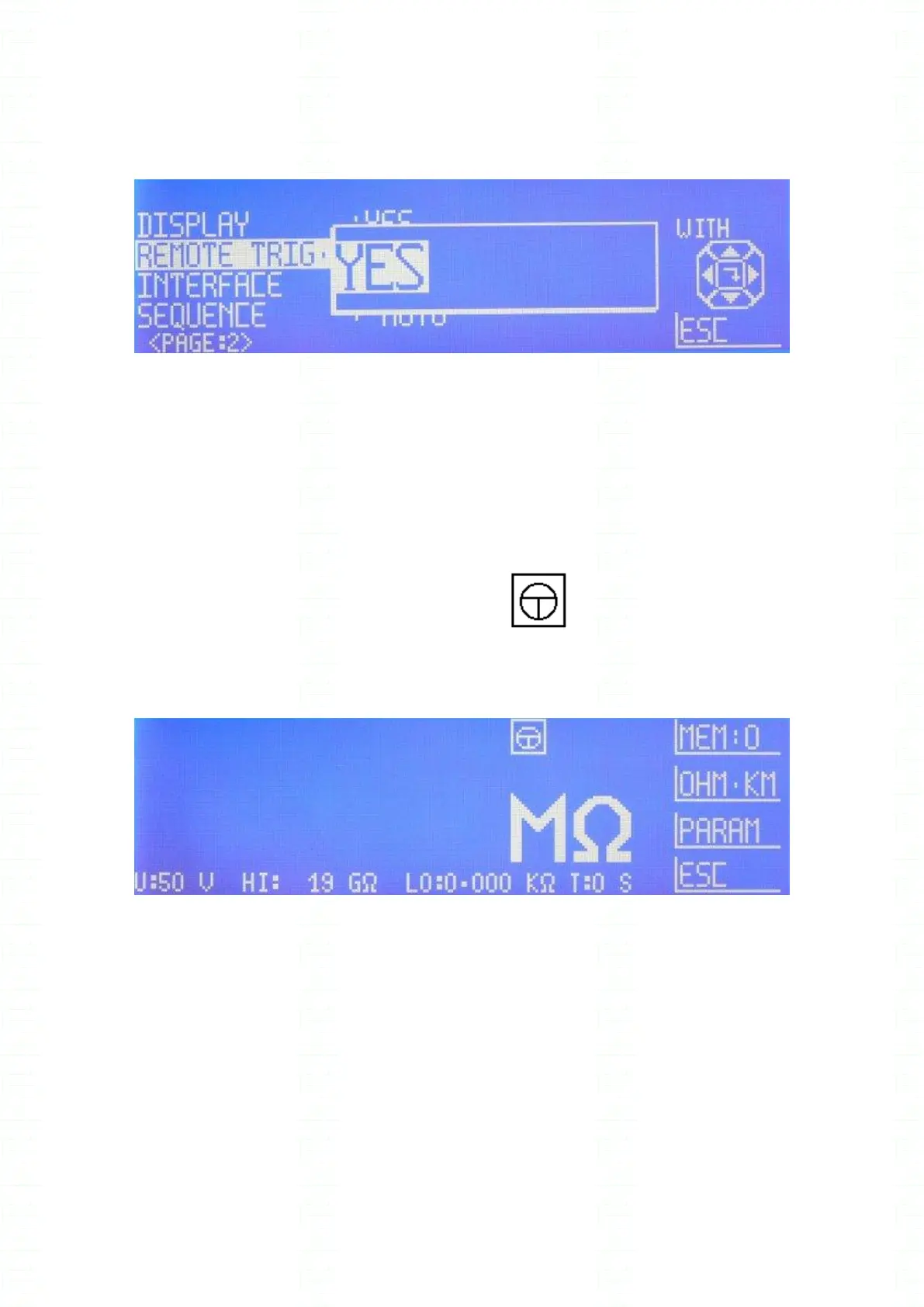

Fig 6.9
WARNING :
This mode should not be used with the remote control accessories. ( see section 11)
The XS series units have been designed to be directly triggered by a number of Sefelec accessories.
The operation is fully safe, and the accessories are automatically identified.
If you are not using such remote control accessories you can even use a simple contact to trigger a
measurement. This is possible through the REMOTE TRIG. mode.
The operation of this mode is reminded in the
measurement windows by the following symbol :
Example with the Megohmmeter function :
Fig 6.10
Electrical connection and trigger
Insert a contact between points 1 and 9 or 2 and 10 of the screw terminal C5 on the rear panel.
If you use points 1-9 for the external contact, a permanent link or the safety loop should exist between
points 2-10 and vice versa.
