XS series operating manual
XS user manual v0.55 - 55 -

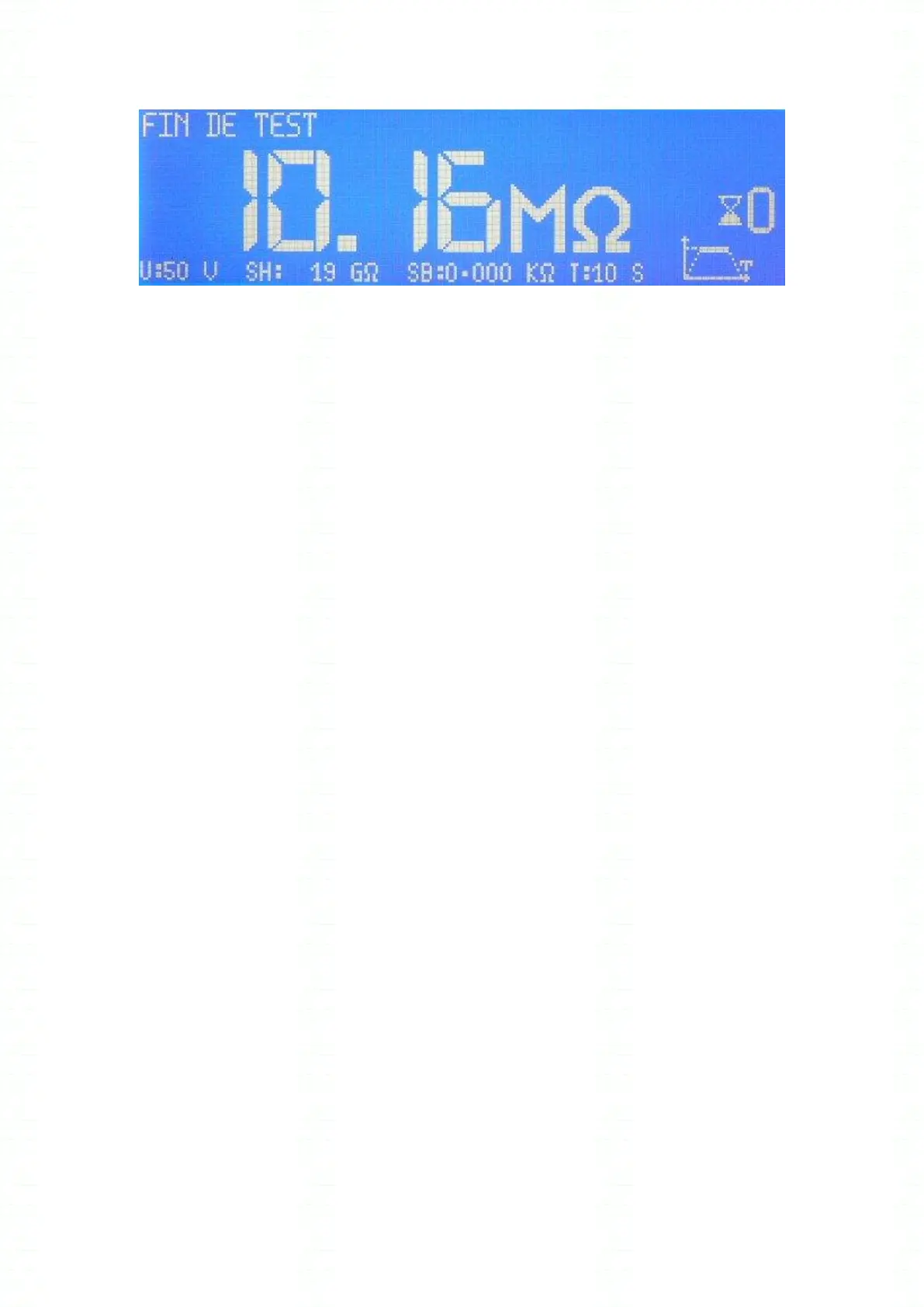

Fig 7.9
Press on the [DISCHARGE] red push button to cancel the memorization on the LCD screen. (The HV
indicator goes out.)
Display shows figure 11
Press on the [ESC] key to escape the function
Error messages
The following error messages may appear during the measurement:
(message) SAFETY LOOP
the safety loop is not closed. There is no connection between the points 1-9 and 2-10 of the C5
connector of the rear panel. Make the connection, press again on the [MEASUREMENT] green push
button to trigger the measurement mode.
(message) OVER-RANGE
the insulation resistance of the specimen under test exceeds the measurement specifications of the
unit (refer to specification section of this manual).
(message) UNDER-RANGE
the insulation resistance of the specimen under test is lower than the measurement specifications of
the unit (refer to specification section of this manual).
(message) CHARGING
the measurement voltage has not reached its final value. On capacitive specimen, wait for the end of
the charge, on resistive specimen check with the current specifications of the power supply.
(message) BOARD NOT READY
the microprocessor board cannot communicate with the insulation resistance board. You cannot
perform a measurement, get in contact with our Service department (+33 1 64 11 83 48)
