XS series operating manual
XS user manual v0.55 - 57 -
Test voltage selection
The unit offers the possibility to select dielectric strength test voltages between 0.10 and 5.00 KVAC
or 0.10 and 6.00 KVDC . In the case of SXS16, the unit offers the possibility to select dielectric
strength voltages between 0.10 and 10.00kVDC. The test voltage value selection is done according to
the standards.
Move the reverse video line in front of the VOLTAGE line
Press on the RIGHT arrow or ENTER key

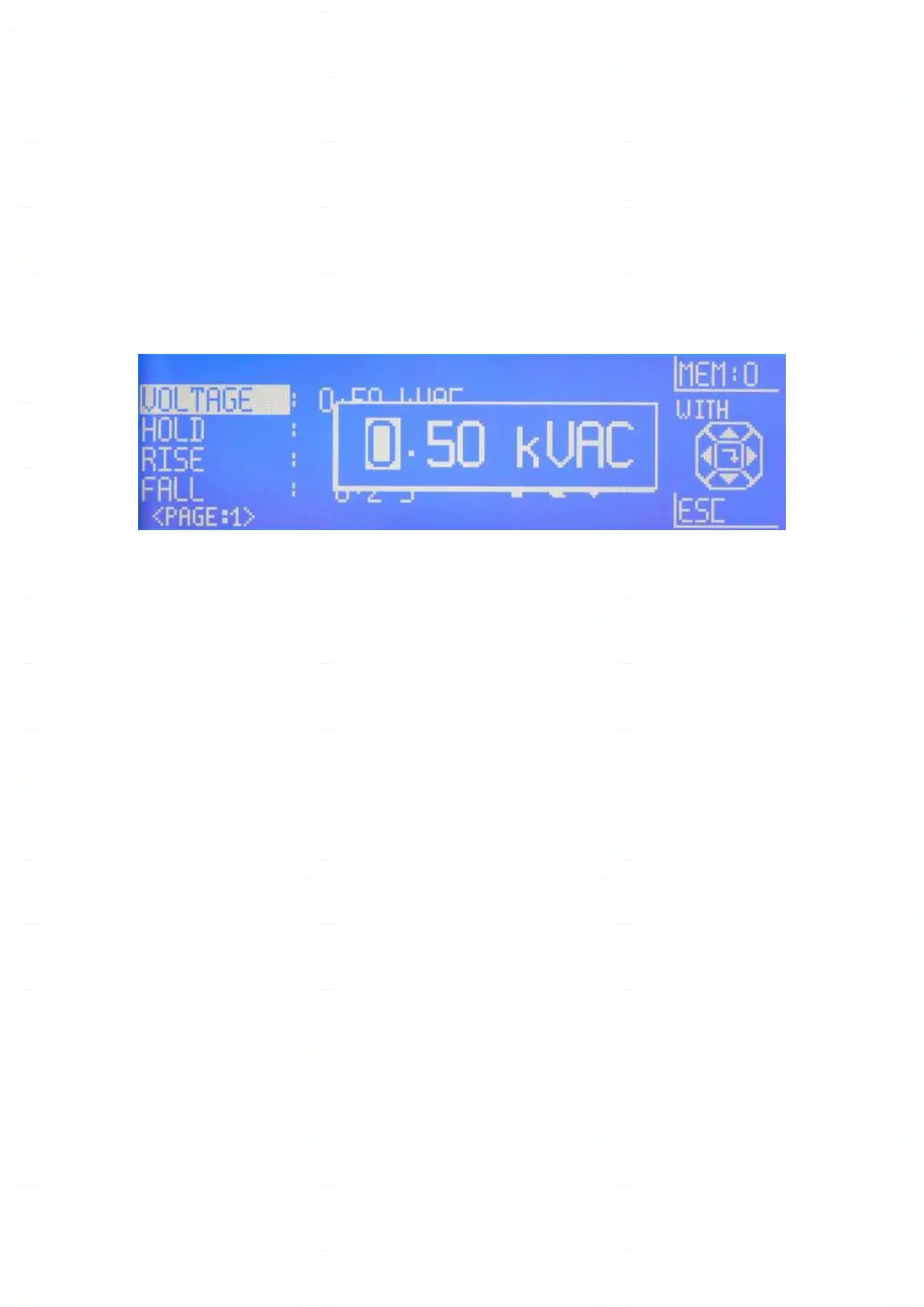

Display shows :
Fig 8.3
Select the number to be modified by moving the cursor with the RIGHT/LEFT arrow keys
Increase or decrease the value with respectively the UP and the DOWN arrow keys (0 1 2 3 4 5 6 7 8
9. 0 1 2 3, etc)
Repeat operation for all the numbers if necessary
With the RIGHT arrow key, move the cursor up to the unity zone
Scroll AC, DC (for XS56 and 506 models) with the UP/DOWN arrow keys
Enter the voltage with the ENTER key. If the value is higher than the maximum limits (5.00 in AC and
6.00 in DC), following error message appears :
LIMIT ERROR
Enter a correct value or [ESC]
