XS series operating manual
XS user manual v0.55 - 52 -
To adjust the hold time
Move the reverse video line in front of the HOLD line
Press on the RIGHT arrow or ENTER key
Display shows :

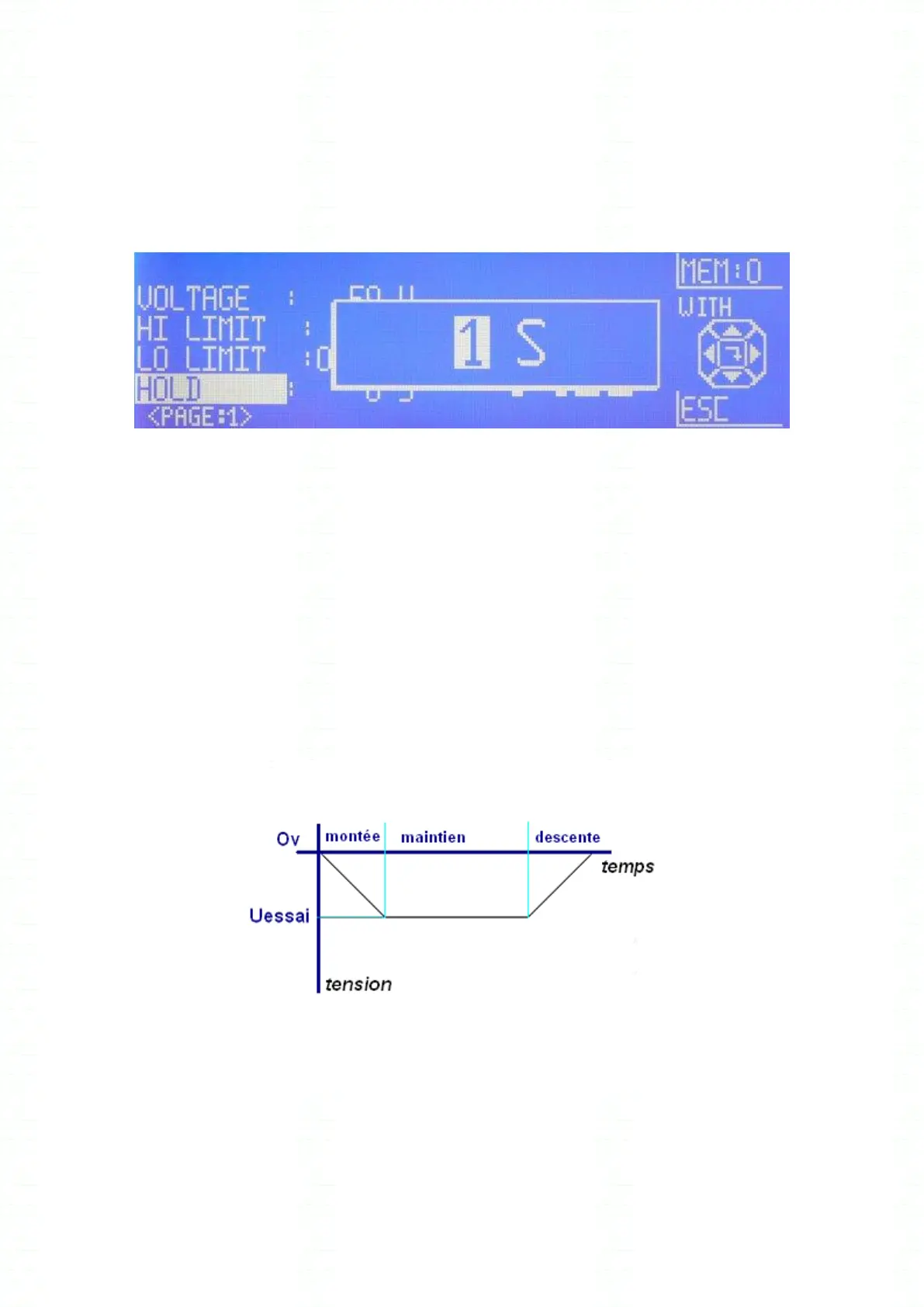

Fig 7.5
Select the number to be modified by moving the cursor with the RIGHT/LEFT arrow keys
Increase or decrease the value with respectively the UP and the DOWN arrow keys (0 1 2 3 4 5 6 7 8
9. 0 1 2 3 etc).
Repeat operation for all the numbers if necessary
Enter the time with the ENTER key
To adjust the rise and fall time
Fast voltage rise and fall time can stress more than wanted the specimen under test.
To limit the risk, the unit is equipped with an adjustable slow rise and fall time for the measurement
voltage.
REMINDER : the measurement voltage is negative, except with the SXS16 which generates
positive measurement voltages.
