XS series operating manual
XS user manual v0.55 - 76 -
 Move the reverse video line in front of the TIME line with the UP/DOWN arrows keys.
 Press on the RIGHT arrow or ENTER key.

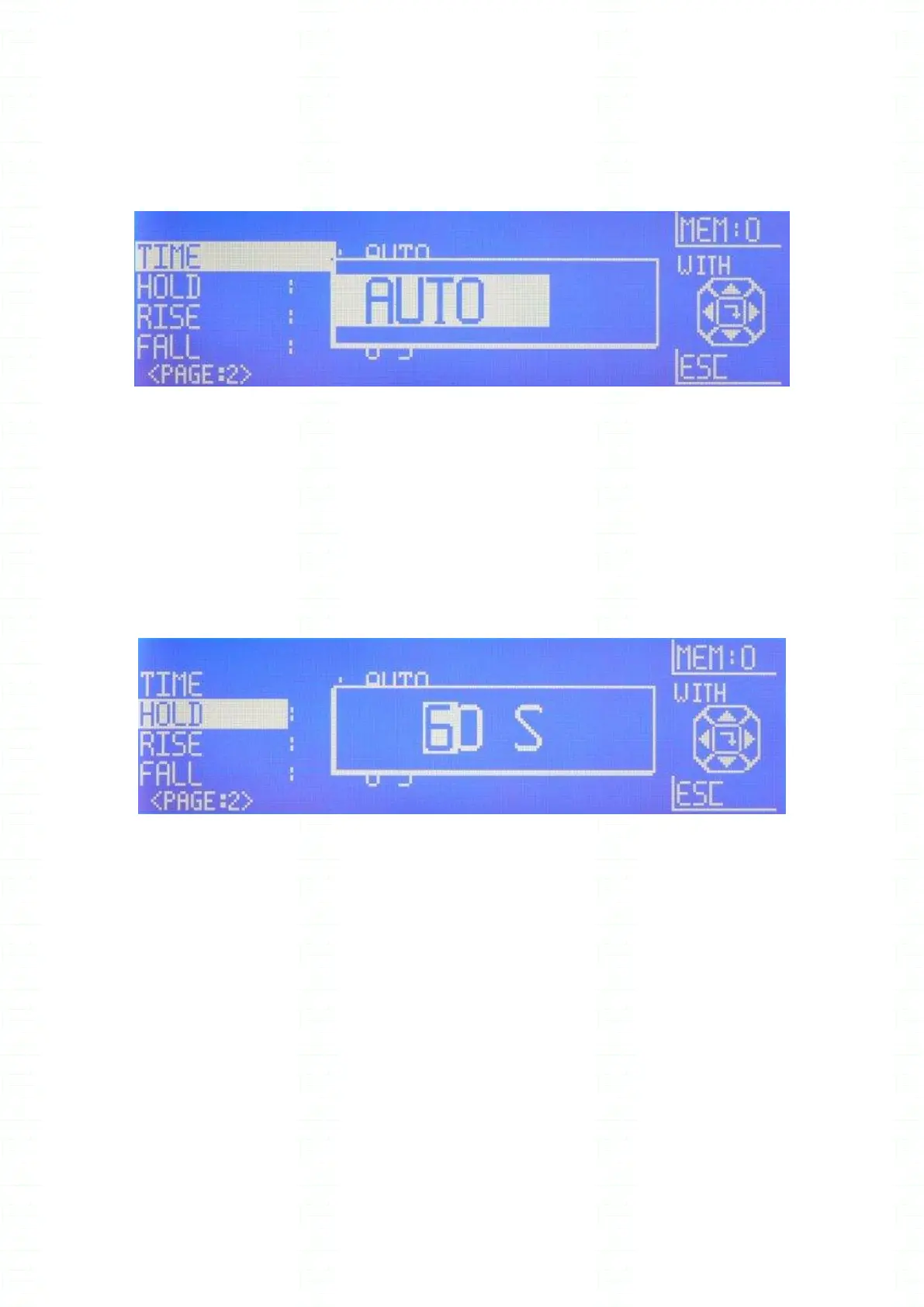

 The display shows :
Fig 9.7
 With the UP/DOWN arrow keys scroll the various available timer modes (AUTO, MANUAL).
 Enter the selected mode with the ENTER key.
In the AUTO mode, it is possible to set the RISE, HOLD and FALL times from 0 up to 999 seconds.
 Move the reverse video line in front of the HOLD line.
 Press on the RIGHT arrow or ENTER key.
 The display shows :
Fig 9.8
 Select the number to be modified by moving the cursor with the RIGHT/LEFT arrow keys.
 Increase or decrease the value with respectively the UP and the DOWN arrow. Repeat
operation for all the numbers if necessary.
 Enter the time with the ENTER key
Proceed the same way for the RISE and FALL times.
