10.4.5.4 „System settings“ [Signals] [Enabling valves]
In [Enabling valves] will set the enabling of the lubrication circuits (valves) for the entered
time (max. active time) for commissioning and maintenance purposes.

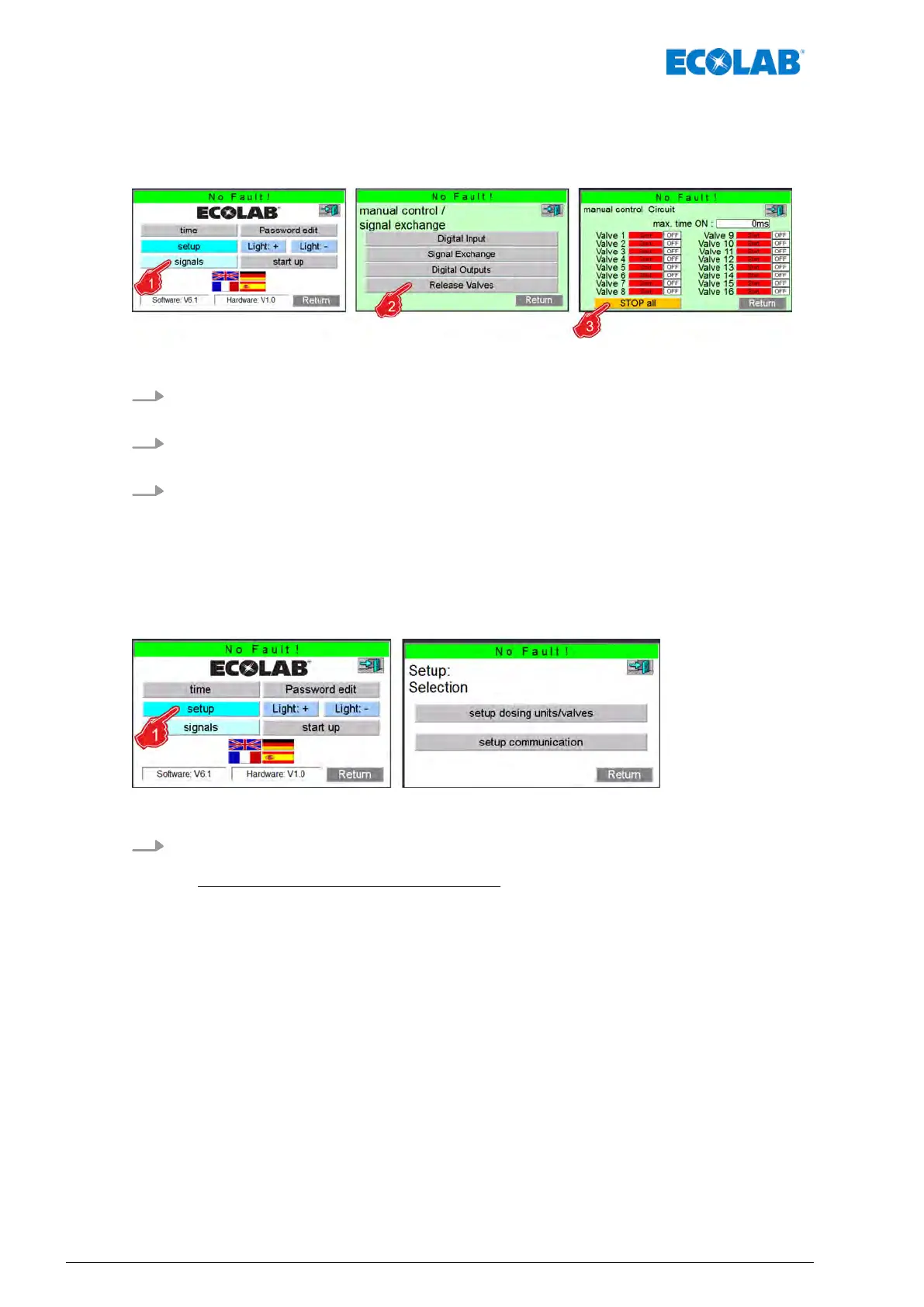

Fig. 22: „System settings“ [Signals] [Enabling valves]
1. button [Signals] Press to open the signal settings.
ð
The overview: „Manual activation / signal exchange“ is displayed.
2. Press button [Enabling valves] .
ð
The selection: „Man. actuation circuits“ is displayed.
3. Press button [STOP all]
.
ð
Stop all set outputs. [Start] Buttons change [Stop] buttons.
10.4.6 Overview: „System settings“ [Setup]
In this [Setup] the applicator stations/valves and the signal exchange are set.
Fig. 23: „System settings“ [Setup]
button [Setup] Press to access the [Setup] .
ð
The overview: „Setup: Selection“ is displayed.
The following selection can be made:
n [Setup applicator stations/valves]
Ä
Chapter 10.4.6.1 „„System settings“ [Setup]
[Applicator stations/valves]“ on page 63
n [Setup signal exchange]
Ä
Chapter 10.4.6.2 „„System settings“ [Setup]
[Exchange of signals]“ on page 64
Layout of the software display
System settings > Overview: System settings Setup
