Operation and param
eterization
58
Manual econ sens3
Version 3.0

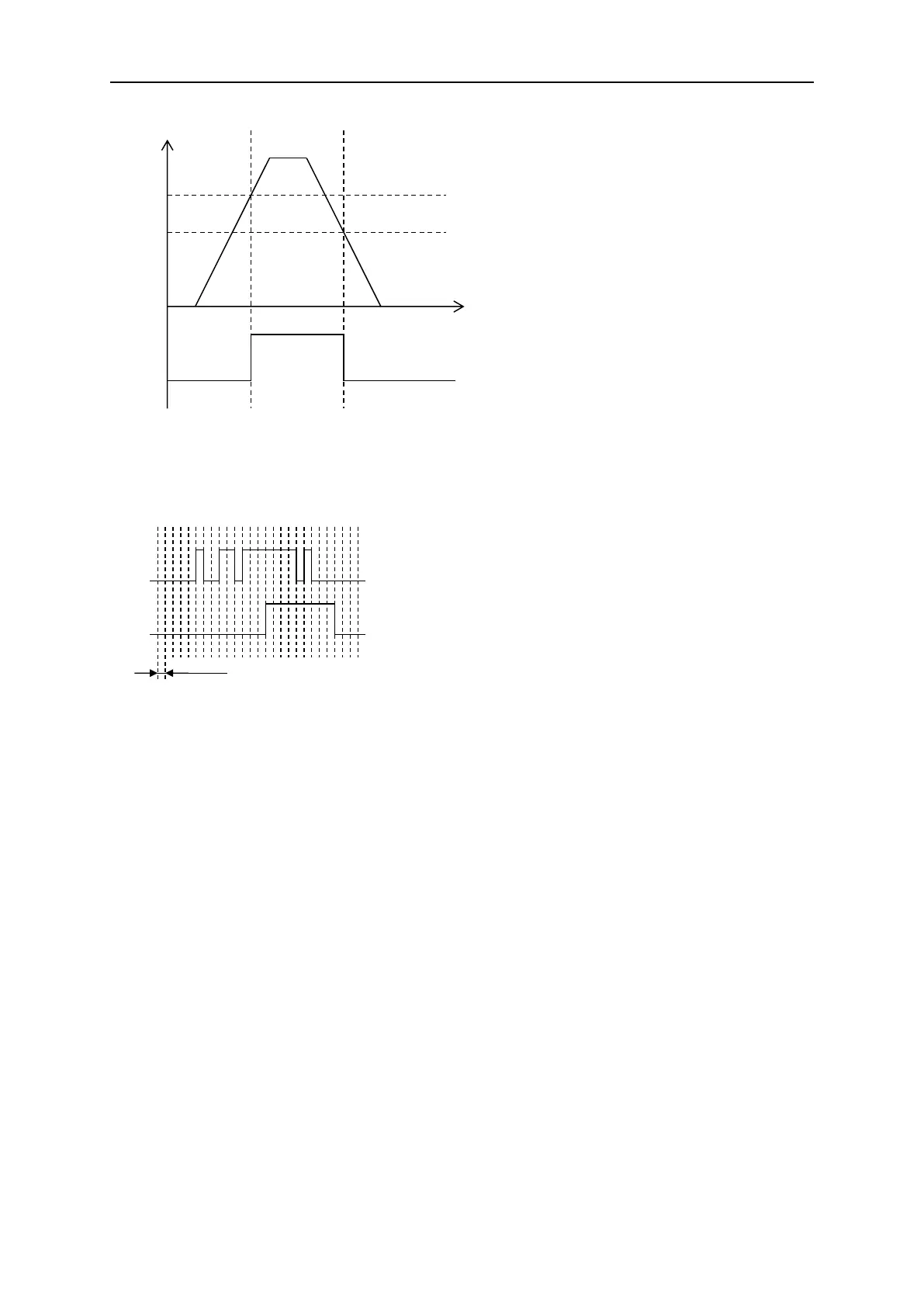

The input is scanned
in 5 ms intervals. T
he collected s
cans
are debounced
and onl
y if 3 consecutive
scans are stable wil
l the recognized l
evel be changed.
The following im
age shows the debo
uncing
process. Peaks
for the time f
rom one or two scans are
filtered out.
Tim
e
V
in
[V]
2
.5V
1
.5V
In
Ou
t
5ms
61
63
Table of Contents
Table of Contents
2
General Information
5
About this Handbook
5
Required Basic Knowledge
5
Warnings
6
Safety Symbols on the Instrument
7
Explanation of Symbols
7
Intended Use of the Product
8
Disposal Instructions
8
Warranty Conditions
8
Disclaimer
9
Registration
9
Description of the Instrument
10
Special Features
11
Scope of Delivery and Receiving Inspection
12
Assembly
14
Tools
14
Point of Installation
14
Installation Position
14
Installation Space and Ventilation
15
Disassembly
16
Connection of the Instrument
17
Safety Instructions
17
Overview of Connections
18
Voltage Measurement Connection
19
Supply Voltage Connection
21
Alternative Voltage Supply with 12 to 24V DC
22
Current Measurement Connection
23
Installation of the Current Sensors
23
Ethernet Connection
25
Modbus TCP
25
Cable Recommendation
25
Modbus RTU Connection
26
Cable Recommendation
27
Multiple I/O Connection
28
Cable Recommendation for Multiple I/O Connections
28
Open Collector Output
29
Digital Output (Pulse)
30
Digital Input (Pulse Input)
31
Input for Potential Free Contact
31
Analog Output 4 to 20 Ma
32
Analog Input 4 to 20 Ma
32
Analog Input 0 to 10V/30 V
32
Shielding of Connection Cables
33
Grounding of the Modbus RTU, Multiple I/O Port, and Ethernet Cables
33
Cable Routing Instructions
34
Connection Examples
35
3-Phase/4-Conductor System with any Load
35
3-Phase/3-Conductor System with any Load
35
1-Phase System
36
Functional Grounding at the GND Connection of the Modbus Clamping Point
36
Display and Control Elements
37
Initial Operation
38
Operation and Parameterization
39
Opening the Web Interface
39
Home Menu
40
Measurement Menu
41
Phase Check" Installation Test Routine
43
Analysis Menu
45
Input / Output Menu (LOG Version)
47
Events Menu (PRO Version)
48
Export Menu
49
Contact Menu
51
Help Menu
51
Config Menu
51
General Information on Saving Settings
52
Date Submenu
52
Network Submenu
54
Electrical Submenu
55
Electrical Advanced Submenu
57
Input / Output Submenu (LOG Version)
58
Events Submenu (PRO Version)
65
Modbus Submenu
69
Language / Measurement Details Submenu
75
Alarms Submenu
75
Autosave Submenu
77
Password Submenu
78
Settings File Submenu
79
System Submenu
79
Options Submenu
80
Update Submenu
80
Maintenance and Service
81
Adjustment / Calibration
81
Cleaning
81
Firmware Update
81
Reset
82
Repair
82
Troubleshooting
83
Faq
83
Email Contact
83
Rma
83
Technical Data
84
Econ Sens3 Basic Instrument
84
Econ Sens3 Measuring Coils
89
Storage Capacity of the Measurement Data Memory
89
Factory Settings
89
Appendix
90
Measuring Parameters and Their Meaning
90
Revision History
91
Other manuals for Econ sens3
