F9 Fetal & maternal Monitor Service Manual Disassembling the Monitor
- 61 -
To replace the LCD,

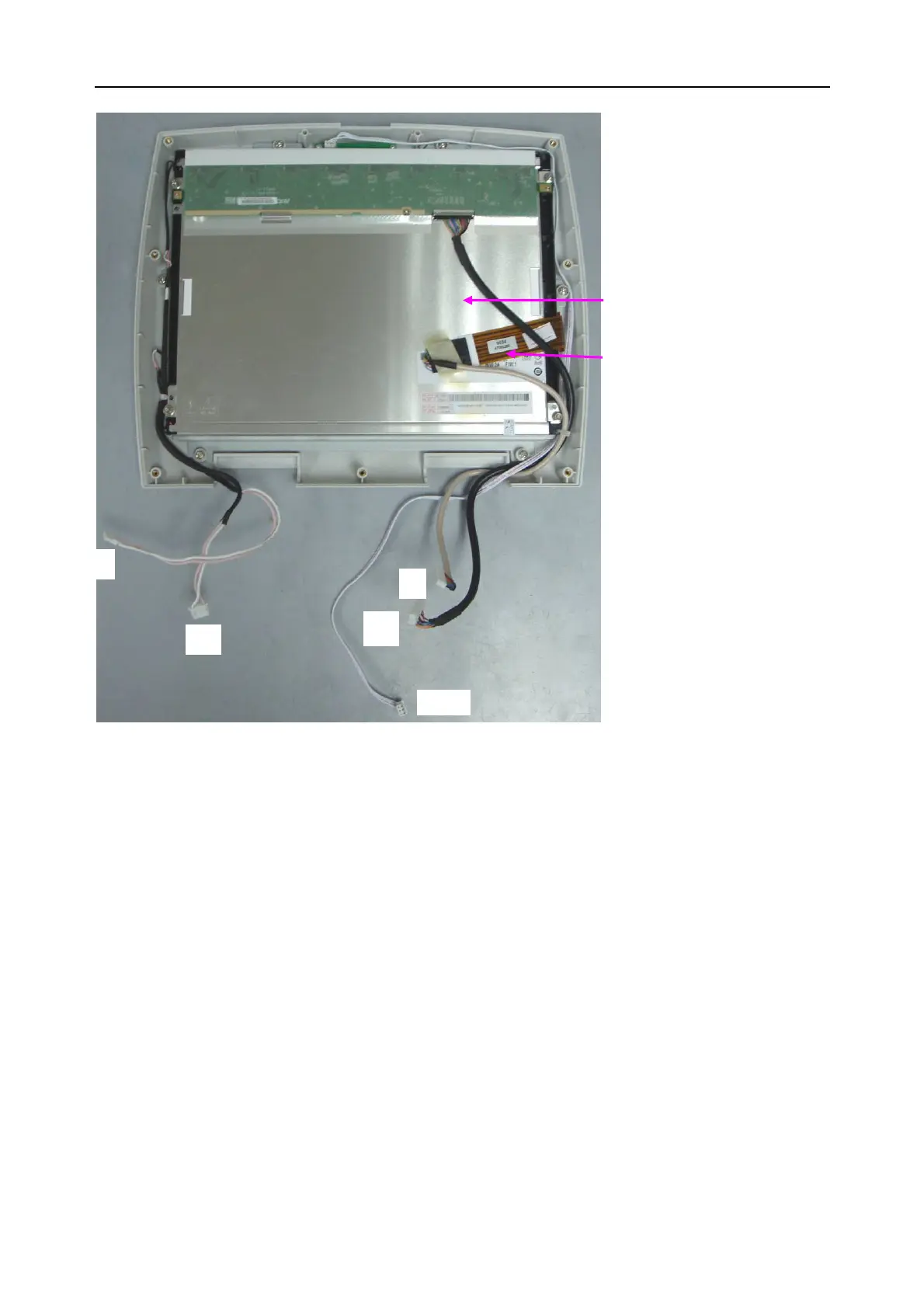

Replace the LCD in a reverse procedure. Refer to the following illustration when connecting
wires. Ensure they are all correctly connected.
No. Connect to
i Power inverter (left)
ii Power inverter (right)
iii Main control board
(vi socket)
iv Main control board
(vii socket)
v Touch screen controller
LCD
Touch screen signal cable
i
ii
iii
vi
v
