17 JUMBO FRAME
The switch provides more efficient throughput for large sequential data
transfers by supporting jumbo frames up to 9216 bytes. Compared to
standard Ethernet frames that run only up to 1.5 KB, using jumbo frames
significantly reduces the per-packet overhead required to process protocol
encapsulation fields.
USAGE GUIDELINES
To use jumbo frames, both the source and destination end nodes (such as
a computer or server) must support this feature. Also, when the connection
is operating at full duplex, all switches in the network between the two end
nodes must be able to accept the extended frame size. And for half-duplex
connections, all devices in the collision domain would need to support
jumbo frames.
PARAMETERS
The following parameter is displayed on the Jumbo Frame page:
◆ Jumbo Frame (Bytes) — Configures support for jumbo frames.
(Options: 9216, 1522, 1536, 1552 Bytes; Default: 9216 bytes)
WEB INTERFACE
To configure Jumbo Frames:
1. Click Configuration, Jumbo Frame.
2. Select the frame size to configure.
3. Click Apply.

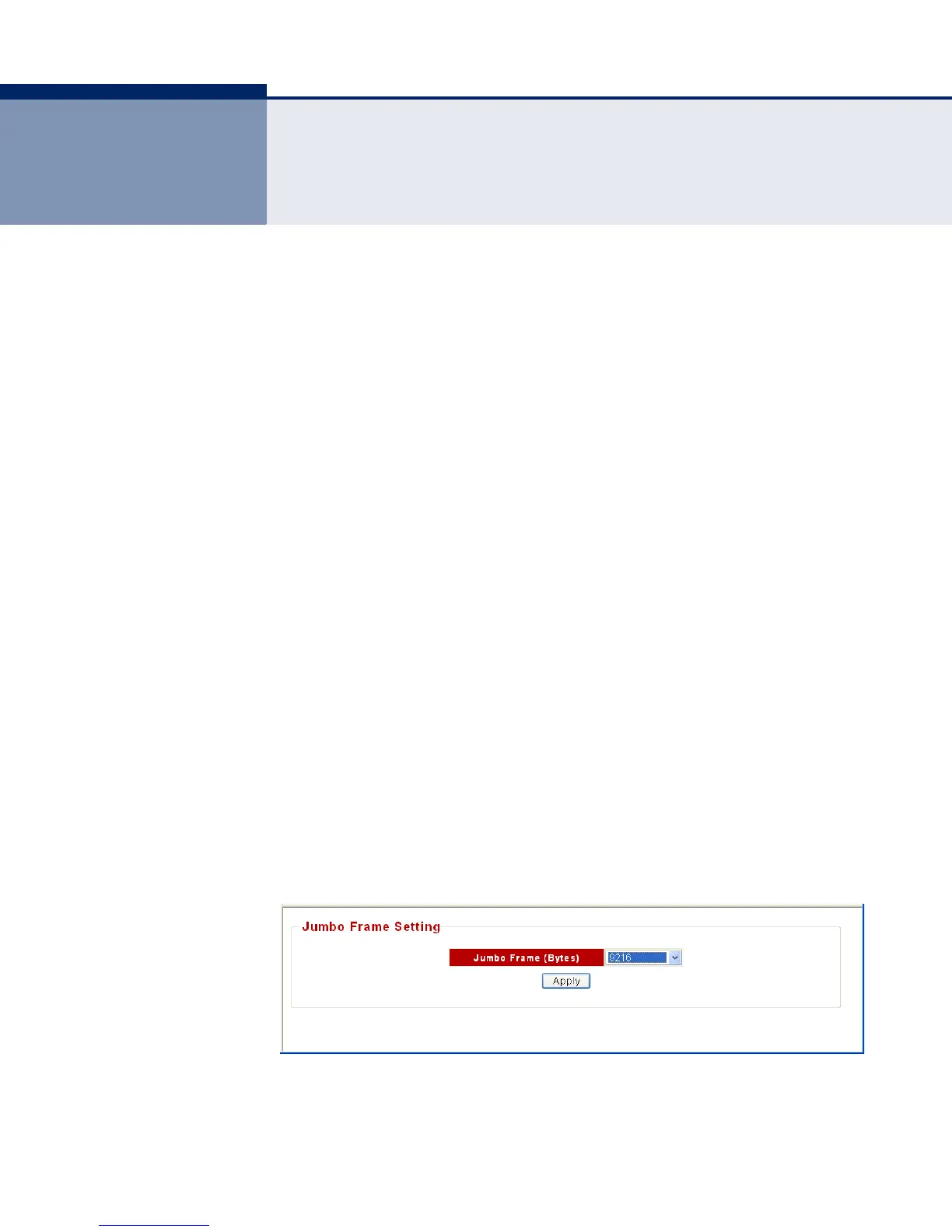

Figure 35: Jumbo Frame Setting
