| Creating VLANs
Configuring VLAN Attributes for Port Members
– 60 –
CONFIGURING VLAN ATTRIBUTES FOR PORT MEMBERS
You can configure VLAN attributes for specific interfaces, including the
default Port VLAN identifier (PVID).
PARAMETERS
The following parameters are displayed on the VLAN Setting page:
◆ Port - Selects one or more ports or trunks to configure. Hold down the
Ctrl key and click port numbers to selelct multiple ports. Hold down the
Shift key to select a range of ports.
◆ PVID - The VLAN ID assigned to untagged frames received on the
interface. (Range: 1-4095; Default: 1)
Ports must be a member of the same VLAN as the Port VLAN ID.
WEB INTERFACE
To configure attributes for VLAN port members:
1. Click Configuration, VLAN, VLAN Setting.
2. Select one or more ports or trunks to configure.
3. Configure the required PVID setting.
4. Click Apply.

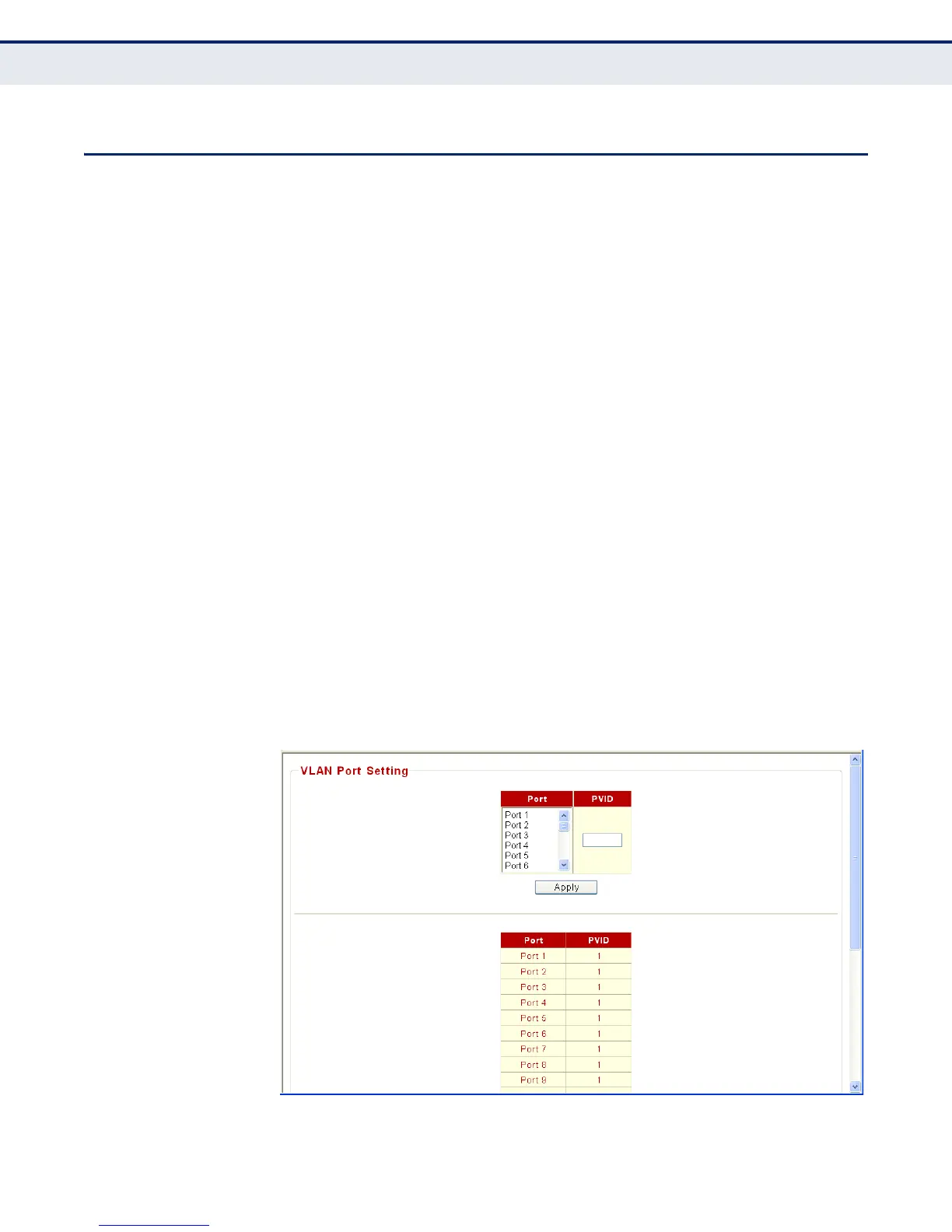

Figure 16: VLAN Port Configuration
