| Quality of Service
Packet Scheduling
– 85 –
percentage of service time the switch services each queue before
moving on to the next queue.
◆ Queue ID — Output queue buffer. (Range: 1-8, where 8 is the highest
priority queue)
◆ Weight — Set a new weight for the selected traffic class. (Range: Strict
or 1-15)
Use queue weights 1-15 for queues to allocate service time based on
WFQ or WRR. Queue weights must be configured in ascendant manner,
assigning more weight to each higher numbered queue.
Strict priority requires all traffic in the queue to be processed before
lower priority queues are serviced.
WEB INTERFACE
To configure port-level DSCP remarking:
1. Click Configuration, QoS, Packet Scheduling.
2. Select the scheduling algorithm, WFQ or WRR.
3. Map scheduling weights to a queue ID, or select “Strict.”
4. Click Apply.

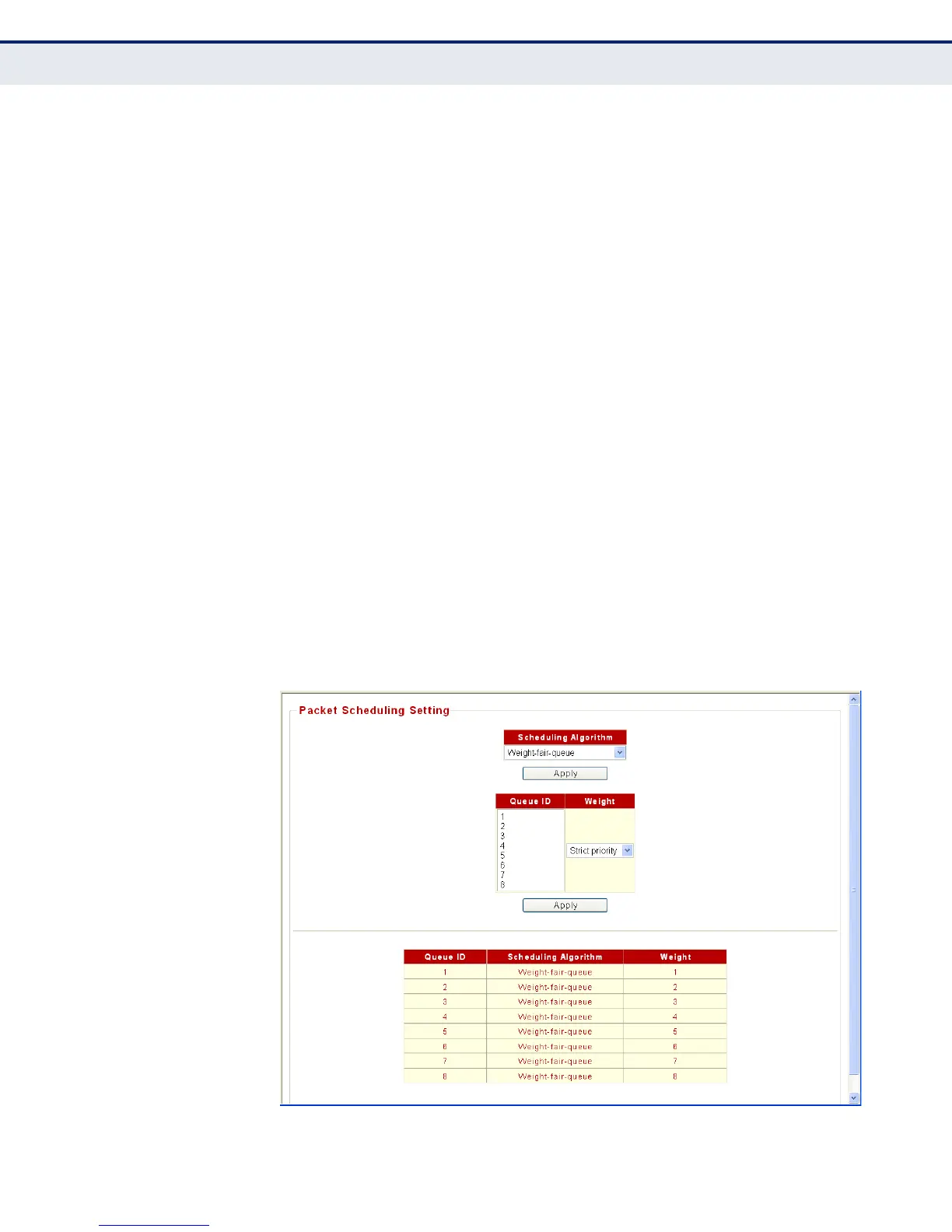

Figure 27: Packet Scheduling
