HAPTER

| Link Layer Discovery Protocol

LLDP Neighbors

– 90 –

WEB INTERFACE

To display LLDP neighbors, click Configuration, LLDP, LLDP Neighbors. Use

the Refresh button to update the LLDP information.

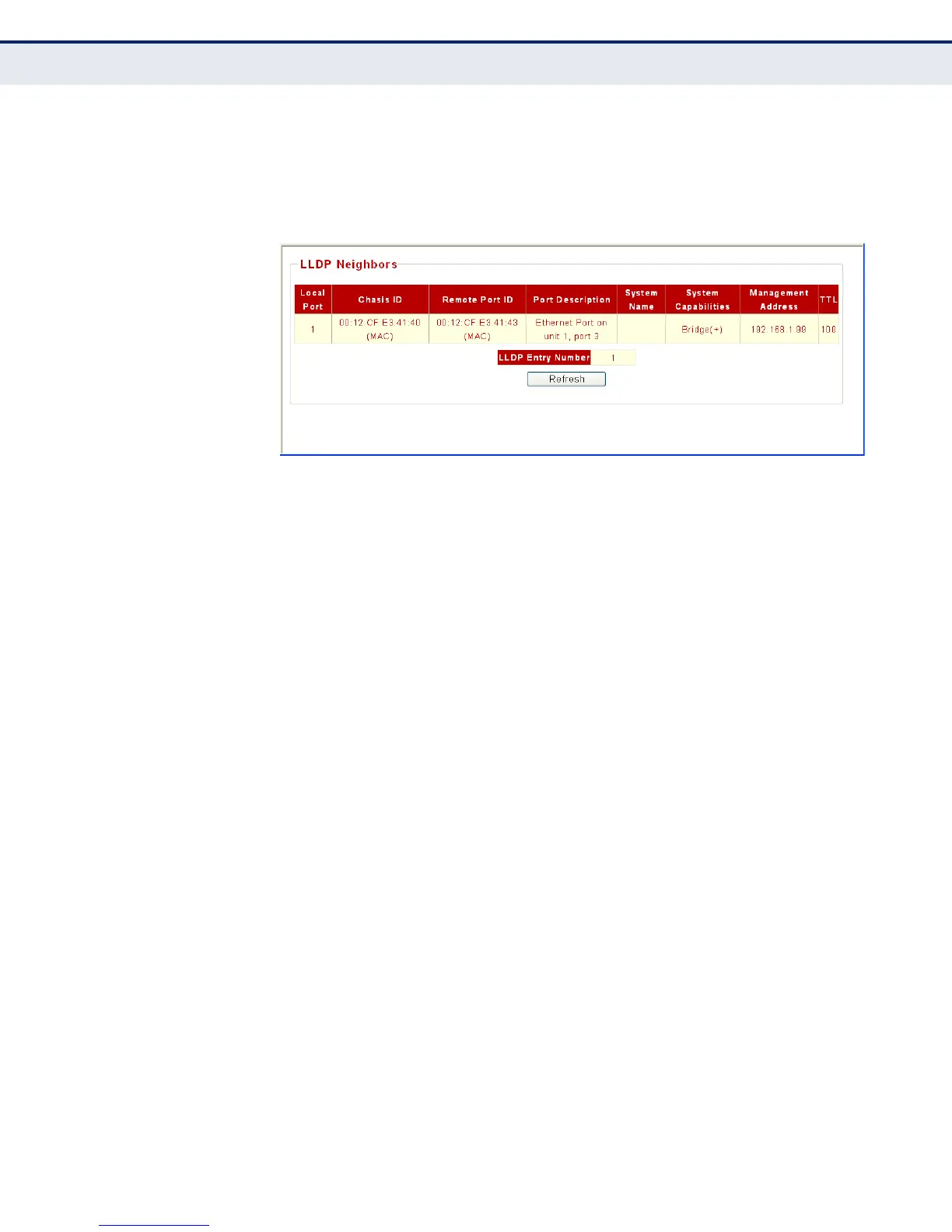

Figure 29: LLDP Neighbors

Default Chapter5
