Operating remote devices
3.8 EST2 System Operations Manual
Reading LCD messages
The 2-CMDN(-C), the 2-SMDN(-C), and the 2-LSRA(-C)
feature a liquid crystal display (LCD). The LCD turns off after 4
minutes of inactivity to save power. Any change of state, off-
normal condition, or front panel switch activation will turn on
the LCD's back-lighting. The system's main controller module
automatically updates time and date information. The LCD does
not display point address information unless the system
programmer includes it as part of the message.

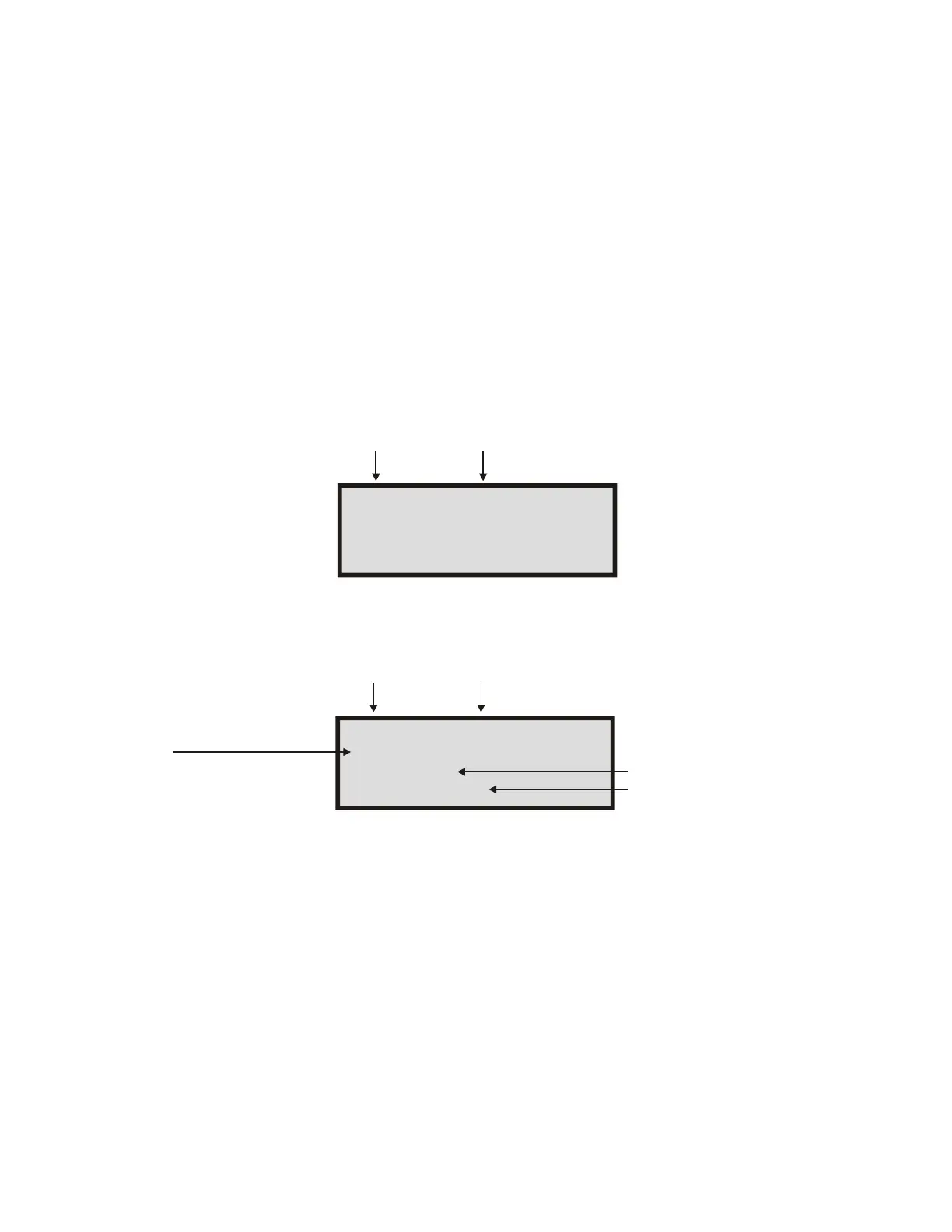

Figure 3-4 illustrates an LCD with no messages pending. The
fire alarm system has no problems at the moment of the display.
In Figure 3-5, however, the LCD indicates a trouble condition
for a Signature series device in the Janitor’s closet.
STDOP040.CDR
JAN 03 11:15:44
Current date Current time
Figure 3-4: LCD during normal conditions
STDOP041.CDR
JAN 03 11:15:44
TROUBLE
LOWER LOBBY
JANITOR CLOSET
Current date Current time
Condition
Message line 1
Message line 2
Figure 3-5: Sample alarm message on the LCD
