EDWARDS SYSTEMS TECHNOLOGY EST2 - San-MIC II

Operating remote devices
3.16 EST2 System Operations Manual
Automatic
system
function
Automatic
system
functio
n
Automatic
system
function
Programmed
function
Programmed
function
Programmed
function
Programmed
function
Programmed
function
LED is off:
LED is on:
Three-position toggle switch: SWU-8/3 and ISP-96-3
Two-position toggle switch: SWU-8 and ISP-96-2
Three-position rotary switch: SHO-4
LED indications
STDOP020.CDR

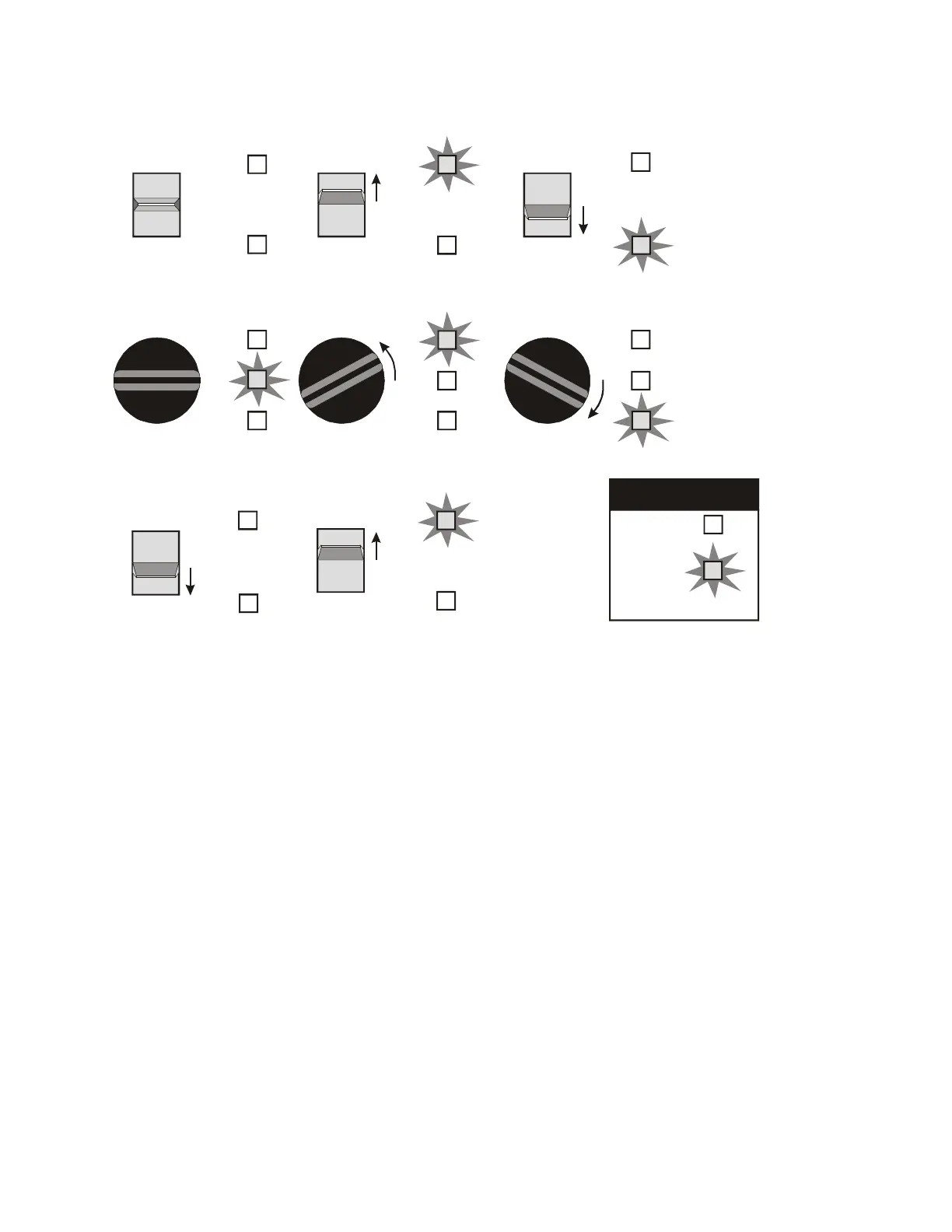

Figure 3-11: SAN annunciator switch positions
SAN-MIC II
The SAN-MIC II module is a supervised microphone and tone
generator capable of operation remotely from the audio power
amplifier. The SAN-MIC II provides a pre-amp level signal,
which may be transmitted over 2,000 feet of shielded cable. In
addition, the SAN-MIC II provides a PTT Dynamic Microphone,
three tone generators, auxiliary audio input, solid state VU
meter, and a supervisory pulse generator.
