S
ERVICING
THE
E-42B
WITH
FU
RNITURE
131
6

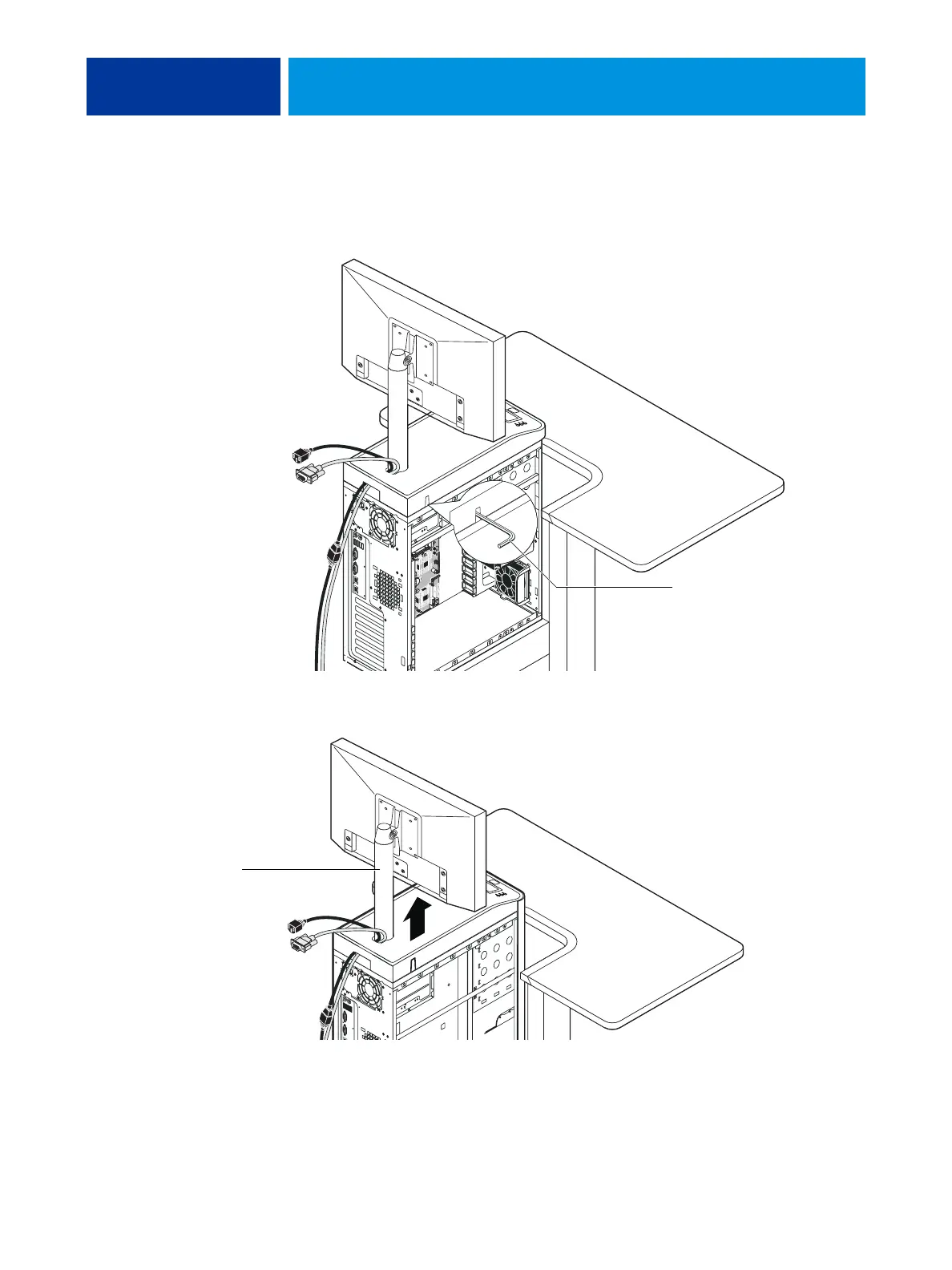

Use the allen k
ey to loosen the scre
w th
at secures the monitor pole to the E-42B.
The allen key should be stored in
the side drawer of the furniture.
7
Holding the monit
or pole, gen
tly lift the monitor pole assembly up and out o
f the E-42B
monitor moun
t.
8
Continu
e servicing th
e Fiery controller
.
Allen key
Monitor pole
130
132
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
9
Document Conventions
9
About the E-42B
9
How the E-42B Operates
10
FIGURE 1: E-42B Functional Diagram
10
Preparing for Hardware Installation or Service Procedures
11
Precautions
11
Creating an Electrostatic Discharge (ESD) Safe Environment
13
Tools You will Need
14
Installing Hardware
15
Installation Sequence
15
Checking the Customer Site
16
Copier/Printer Readiness
16
Setting Customer Expectations
17
Unpacking the E-42B
18
Connecting the E-42B
19
Connecting the Monitor, Keyboard, Mouse, and Power
19
Connecting to the Copier/Printer
20
FIGURE 2: Straight-Through and Crossover Ethernet Cables
20
Configuring a Static IP Address for the E-42B
22
Completing Installation and Starting up
23
Using the E-42B
24
Using the E-42B Control Panel
24
FIGURE 3: E-42B Control Panel
24
Activity Light
25
Buttons
25
E-42B Control Panel Functions Menu
26
Using the Copier Control Panel
27
Main Tab
27
Printme Tab
27
FIGURE 4: the Copier/Printer Touch Panel
27
Job List Tab
28
Tools Tab
28
Scan Tab
28
Fiery Tab
29
Printable Info Menu
30
Network Status Leds
31
Starting, Shutting Down, Restarting, and Rebooting
32
Replacing Parts
35
Overview
35
E-42B Overview Diagrams
36
FIGURE 5: Front and Connector Panel
36
FIGURE 6: Connector Panel and Internal Side View
37
FIGURE 7: Exploded View of Components
38
FIGURE 8: Power and Data Cable Connections
39
Accessing Internal Components
40
Shutting down the System
40
Opening the E-42B
43
FIGURE 9: Removing/Replacing the Side Panels
44
FIGURE 10: Removing/Replacing the Front Panel
45
FIGURE 11: Removing/Replacing the Top Panel
46
Removing and Replacing Boards
48
Printer Interface Board
48
FIGURE 12: Diagram of the Printer Interface Board
48
User Interface Board Assembly
50
FIGURE 13: Diagram of the User Interface Board (Front and Back)
50
FIGURE 14: Removing/Replacing the User Interface Board
51
FIGURE 15: Removing/Replacing the UIB Buttons
52
Motherboard
53
Motherboard Replacement Overview
54
Removing the Motherboard
55
FIGURE 16: Motherboard
56
Replacing the Motherboard
59
Verifying New Motherboard Installation, and Transferring Options and BIOS Information
63
Replacing Parts on the Motherboard
65
Dimms
65
Cpu
66
FIGURE 17: CPU Cooling Assembly
66
FIGURE 18: Removing/Replacing the CPU
68
Battery
70
FIGURE 19: Motherboard Battery
70
Jumpers
71
Fan
72
FIGURE 20: Removing the Fan
72
Power Supply
73
FIGURE 21: Removing/Replacing the Power Supply
74
Hard Disk Drive
76
FIGURE 22: Removing/Replacing the Hard Disk Drive Bracket
77
FIGURE 23: Removing/Replacing the Hard Disk Drive From/In the Hard Disk Drive Bracket
78
Switch Bank Assembly
80
FIGURE 24: Component Sled with Switch Bank Assembly
80
FIGURE 25: Removing/Replacing the Component Sled from the Chassis
81
FIGURE 26: Removing/Replacing the Switch Bank Assembly
82
DVD Drive
84
FIGURE 27: Removing/Replacing the DVD Drive
84
Restoring and Verifying Functionality after Service
85
System Software Installation
87
Before Installing System Software
87
Changing the Factory Default Language
89
Installing System Software
89
System Updates
92
Updating E-42B System and User Software
92
Before Updating the E-42B
92
System Updates
93
Check for Product Updates (Software Downloads Site)
99
About Backing up and Restoring the E-42B and the System Configuration
101
Troubleshooting
102
Preliminary On-Site Checkout
102
Checking External Connections
103
Checking Internal Components
103
Inspecting the System
104
Normal Startup Sequence
108
FIGURE 28: Normal Startup Sequence
108
Error Messages and Conditions
109
Specifications
120
Hardware Features
120
Physical Specifications
120
Networking and Connectivity
120
Safety and Emissions Compliance
121
Reparing the Copier Printer to Connect to the
122
FIGURE 29: Rear Central Cover [A] ( X 4)
122
FIGURE 30: Controller Box Cover [B] ( X 4)
123
FIGURE 31: Slot Cover [C]
123
FIGURE 32: Attaching the Controller Board
124
FIGURE 33: Inserting the Key Top Seal
125
FIGURE 34: Affixing the Decal on the Copier/Printer
125
Disabling the GW Scanner Feature
126
Servicing the E-42B with Furniture
127
Procedures
127
Figures
127
IGURE E-42B Installed on the Furniture
127
Index
137
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the EFI E-42B and is the answer not in the manual?
Ask a question
