EFI E-42B User Manual

SERVICING THE E-42B WITH FURNITURE 132
REPLACING THE E-42B IN THE FURNITURE
1 Make sure that the left side panel is removed from the E-42B.
2 Place the E-42B upright on the furniture stand. Slide the E-42B forward just until its front
panel is aligned with the back edge of the table top.
Use the handle on the stability bracket to lift the rear of the E-42B and slide it forward.
3 Route the monitor cables (power and video) into the cutout in the back of the top panel. Pull
each cable out of the cutout in the top panel.

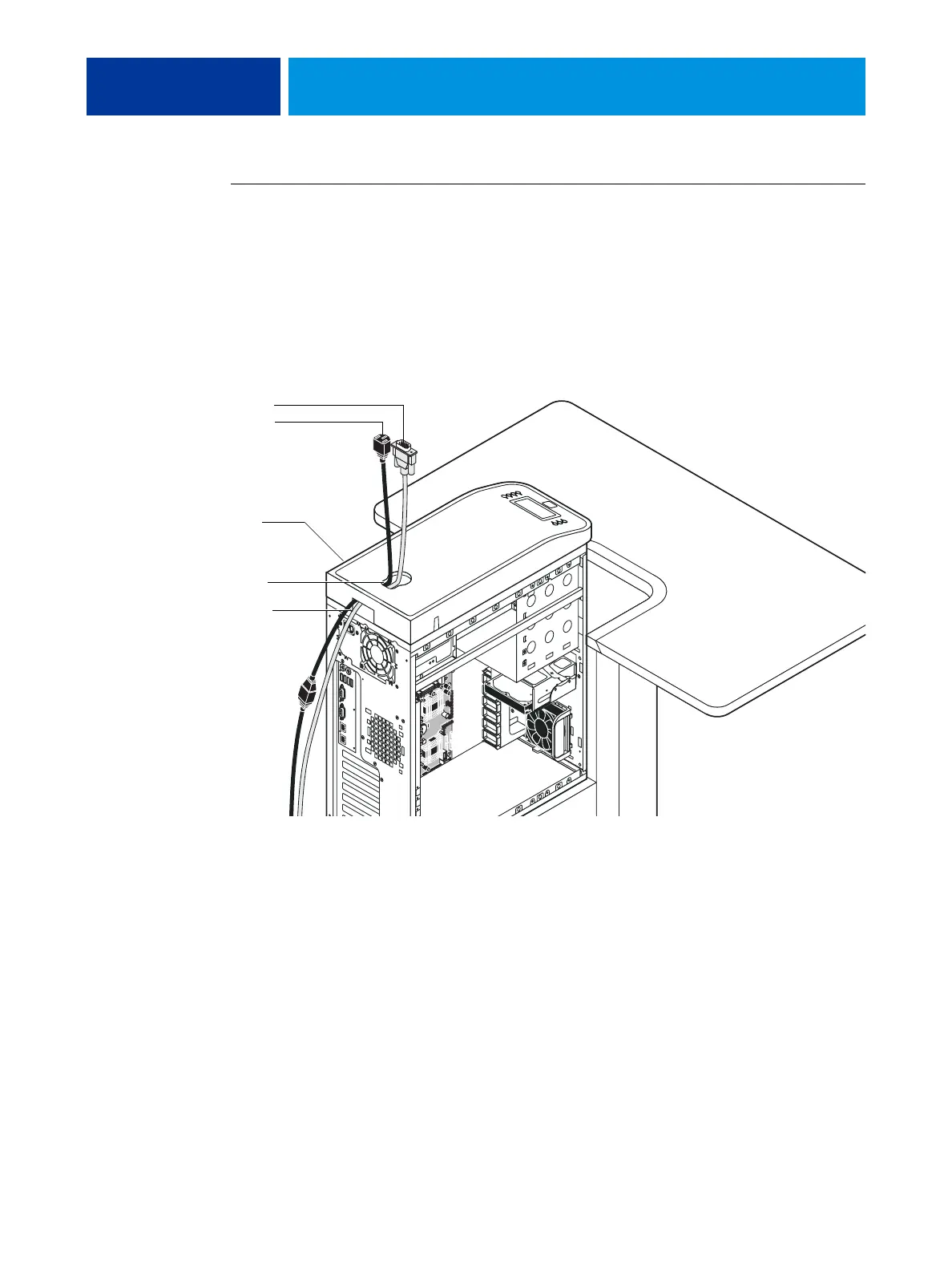

Video cable
Power cable
Top cutout
Back cutout
Top panel
