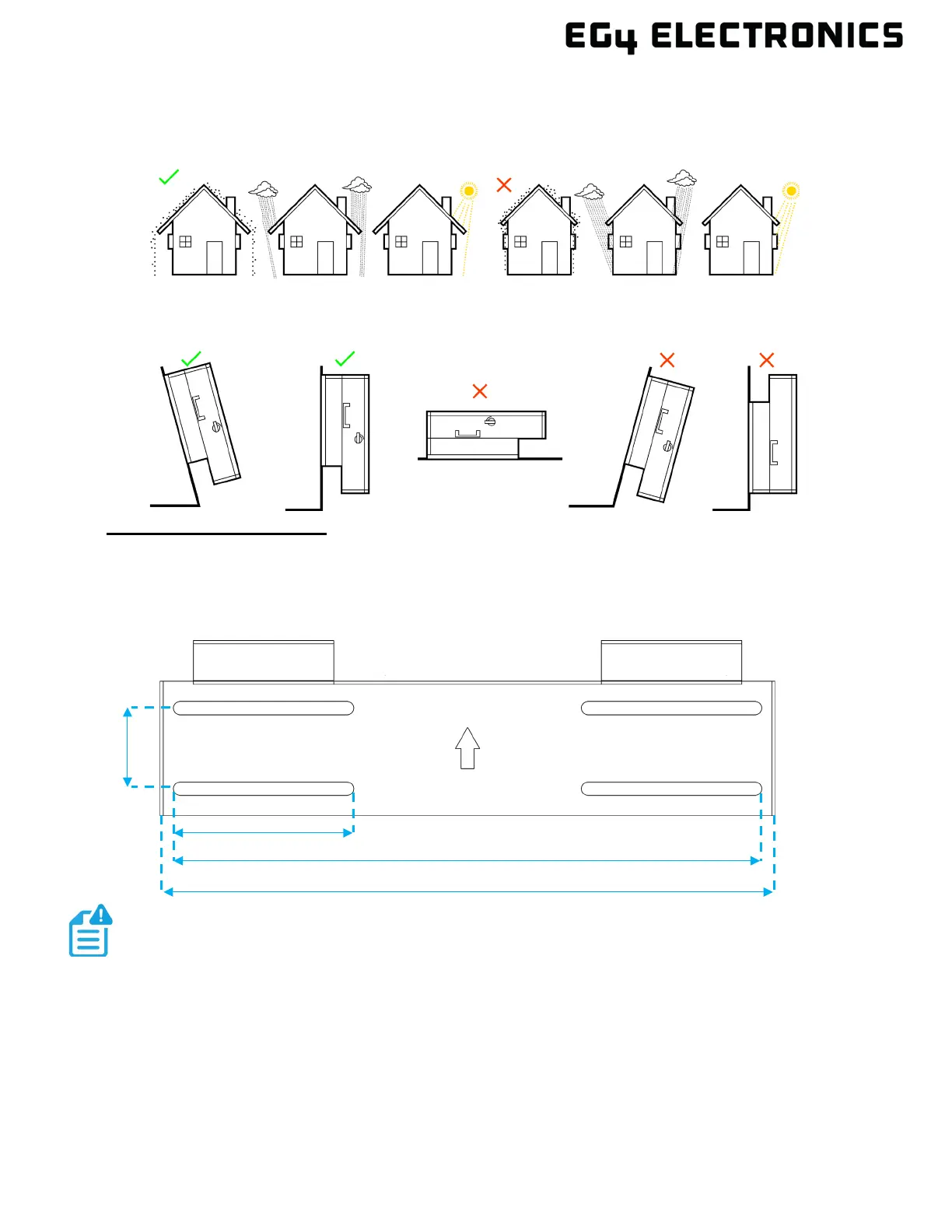

3. Never position the inverter in direct sunlight, rain, or snow. Refer to the figure below and
choose a well-shaded site or a shed to protect the inverter from the elements. The inverter
should be installed upright on a vertical surface.
Installing the Inverter
The inverter is designed to be wall-mounted on a vertical, solid non-combustible surface such as
brick or concrete. Two or more people may be needed to install the inverter due to its weight. The
slots on the mounting bracket can accommodate various stud spacings from 12 in. (305 mm) to 16
in. (406 mm).
NOTE:
• Ensure the surface the inverter is being mounted to can support the weight of the
unit and has proper spacing as per the diagram above.
• The screws needed for attaching the bracket to studs are NOT included in
the packing contents and must be provided by the installer.
