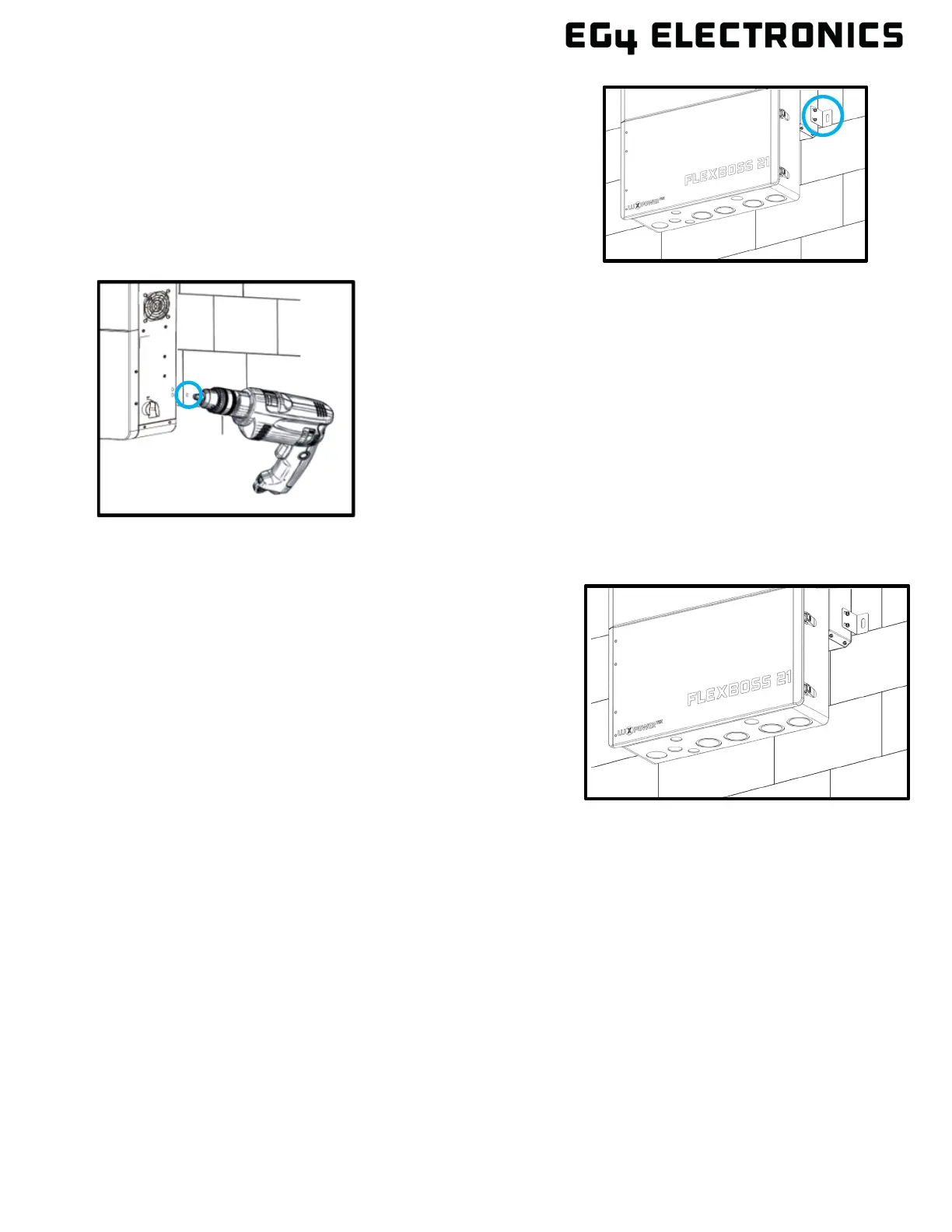

6. Temporarily mount the L bracket to the side of the
inverter (located at the bottom, one on each side). Mark
holes on the wall based on the hole location on the
right-angled bracket (repeat this step for both sides).
7. Remove the angle bracket and drill a hole at the
marking. Use the drill bit size based on the anchor type
or screw size as directed in step 3 (repeat this step for
both sides).
8. Attach the angle brackets (one on each side) to the
inverter and to the wall using the correct hardware.
Once the bracket is secure, the wall installation is
complete.
