Page 18
Input Select Menu (Continued)
 Input 5 Bus E: Channel's audio is taken from audio input 5 which is Bus E
 Input 5 + 6 Mono Bus E: Channel's audio is the sum of audio inputs 5 and 6 (Mono) which
is Bus E
 Input 13 Bus F: Channel's audio is taken from audio input 13 which is Bus F
 Input 13 + 14 Mono Bus F: Channel's audio is the sum of audio inputs 13 and 14 (Mono)
which is Bus F
 Input 7 Bus G: Channel's audio is taken from audio input 7 which is Bus G
 Input 7 + 8 Mono Bus G: Channel's audio is the sum of audio inputs 7 and 8 (Mono) which
is Bus G
 Input 15 Bus H: Channel's audio is taken from audio input 15 which is Bus H
 Input 15 + 16 Mono Bus H: Channel's audio is the sum of audio inputs 15 and 16 (Mono)
which is Bus H
*Bus A and/or Bus B can be either analog input or digital input. (See pages 25 and 36 for
additional information.)
The following example is with Channel ALL EVEN and Channel ALL ODD selected. Instead of
a single channel's audio being affected like the previous example, all 16 channels are being
affected.
All of the Odd channels (1, 3, 5, 7, 9, 11, 13, 15) are taken from Audio Input 1 which is Bus A
and All of the Even channels (2, 4, 6, 8, 10, 12, 14, 16) are taken from audio input 2 which is
also Bus A.

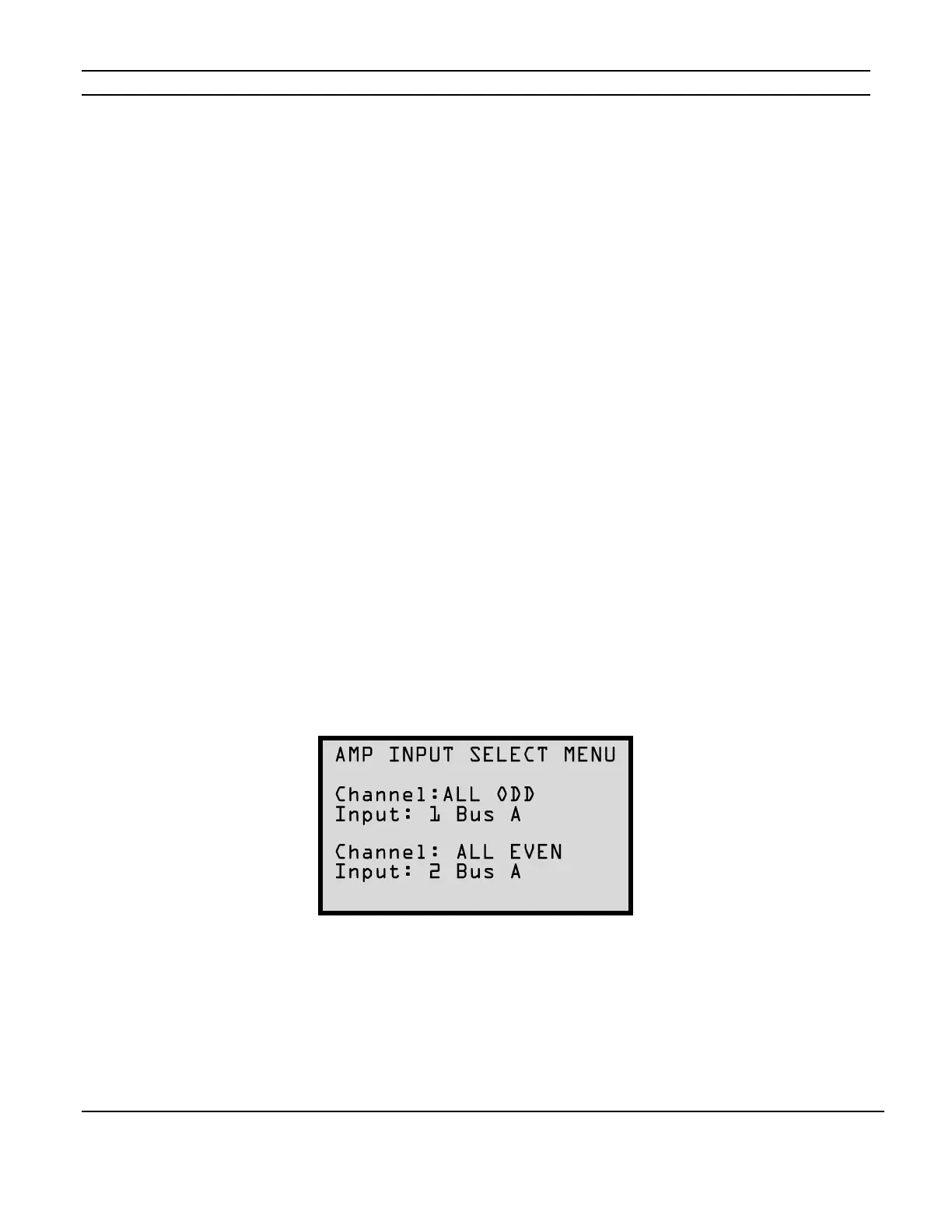

Figure 2-10
All Channels Selected
