BUS Inputs
The S1616A BUS Inputs A and B enable custom configuration of listening areas. Large or irregular
shaped rooms may be configured for both mono and stereo as coverage is needed. Hallways,
passageways, bathrooms and laundry rooms are the most popular areas that can benefit from a
mono BUS application. BUS Input application examples are shown in the Applications section of
this manual.
Channels 1 and 2 analog inputs are used for the Bus A input channels and channels 9 and 10
analog inputs are used for the Bus B inputs.
The S1616A also features optical digital audio inputs for Bus A and Bus B.
(See Bus Input Menus on page 25.)

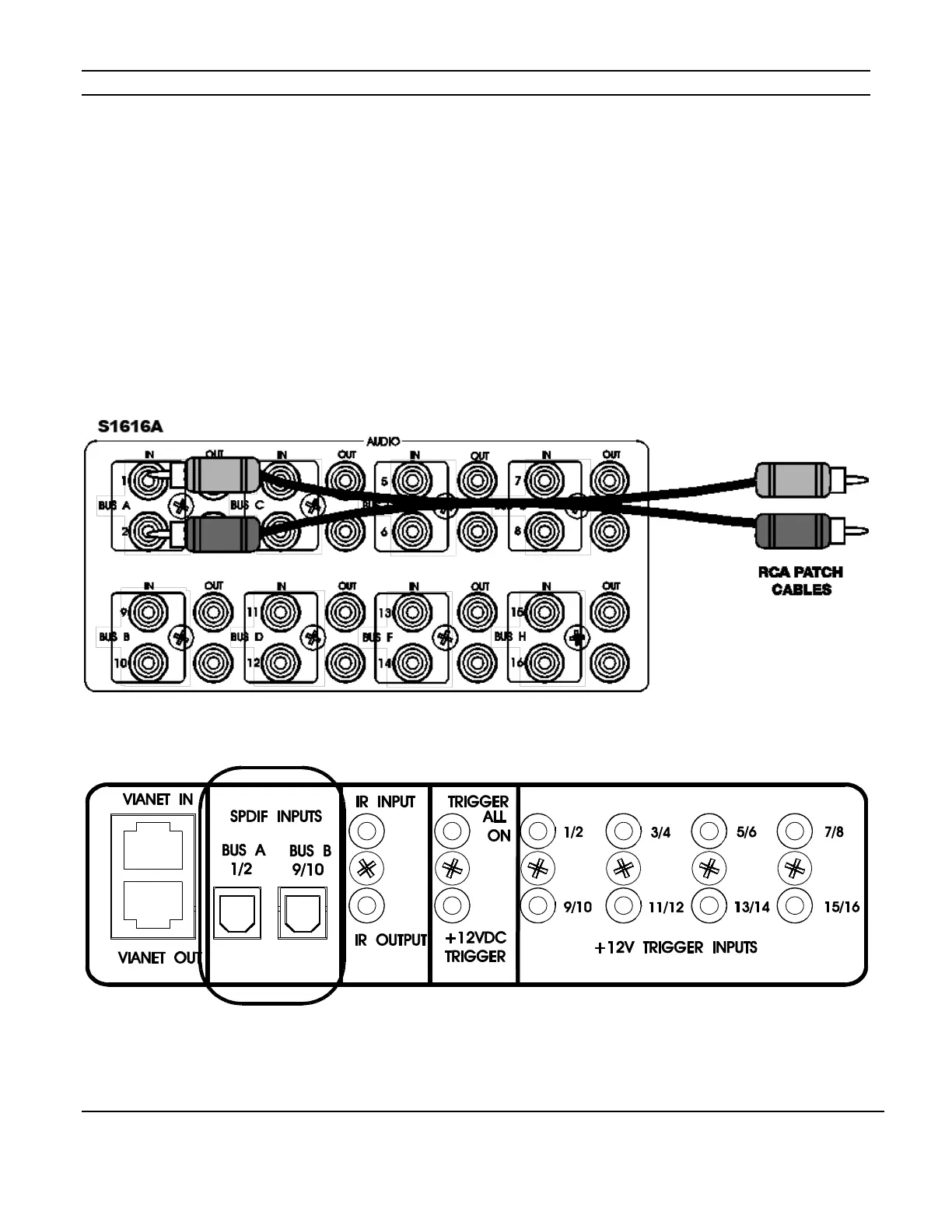

Figure 3-2 Analog Bus Inputs
Figure 3-3 Optical Digital Bus Inputs
