USB Connector
Used to update and configure the S1616A firmware.
Note: A Standard USB-A to USB-Mini-B cable must be utilized for firmware updates and is
not included with the S1616A.
AC Power Connector
A removable IEC compatible AC Power cord is included for connecting the AC Power Connector to
120VAC power.

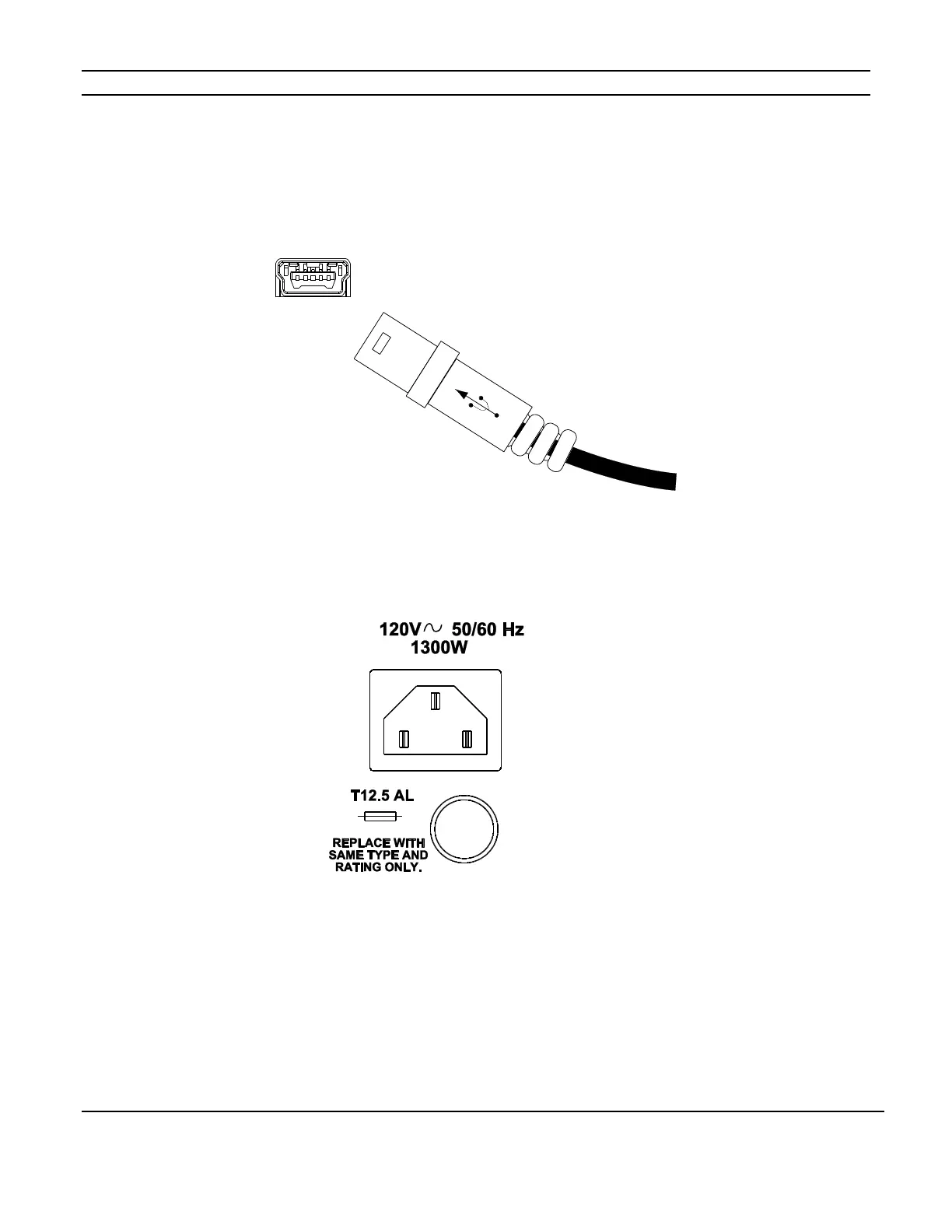

Figure 3-11
Mini-USB Port
Figure 3-12
AC Power Connection
