Utility Sub-Menu (Continued)
Firmware Version
This menu displays the current Firmware Version of the S1616A chassis. Once you have selected
the Utility sub-menu by cycling through the MAIN Menu options using the MENU button, use the
CHANNEL button to select the Firmware Version screen.
Diagnostics Menu
The Diagnostics menu provides easy access to current S1616A system status. Diagnostics
information displayed on the S1616A’s front panel include the number of times the unit has
suffered fault conditions (F) and high temperatures (T) for each channel.
A Fault (F) problem occurs when a channel is shorted or the impedance drops below 4 ohms.
A Temperature (T) warning will occur when the temperature rises above 125C.
Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using
the MENU button, use the CHANNEL button to select the Diagnostics screen. Use the UP and
DOWN arrow buttons to display additional channels.

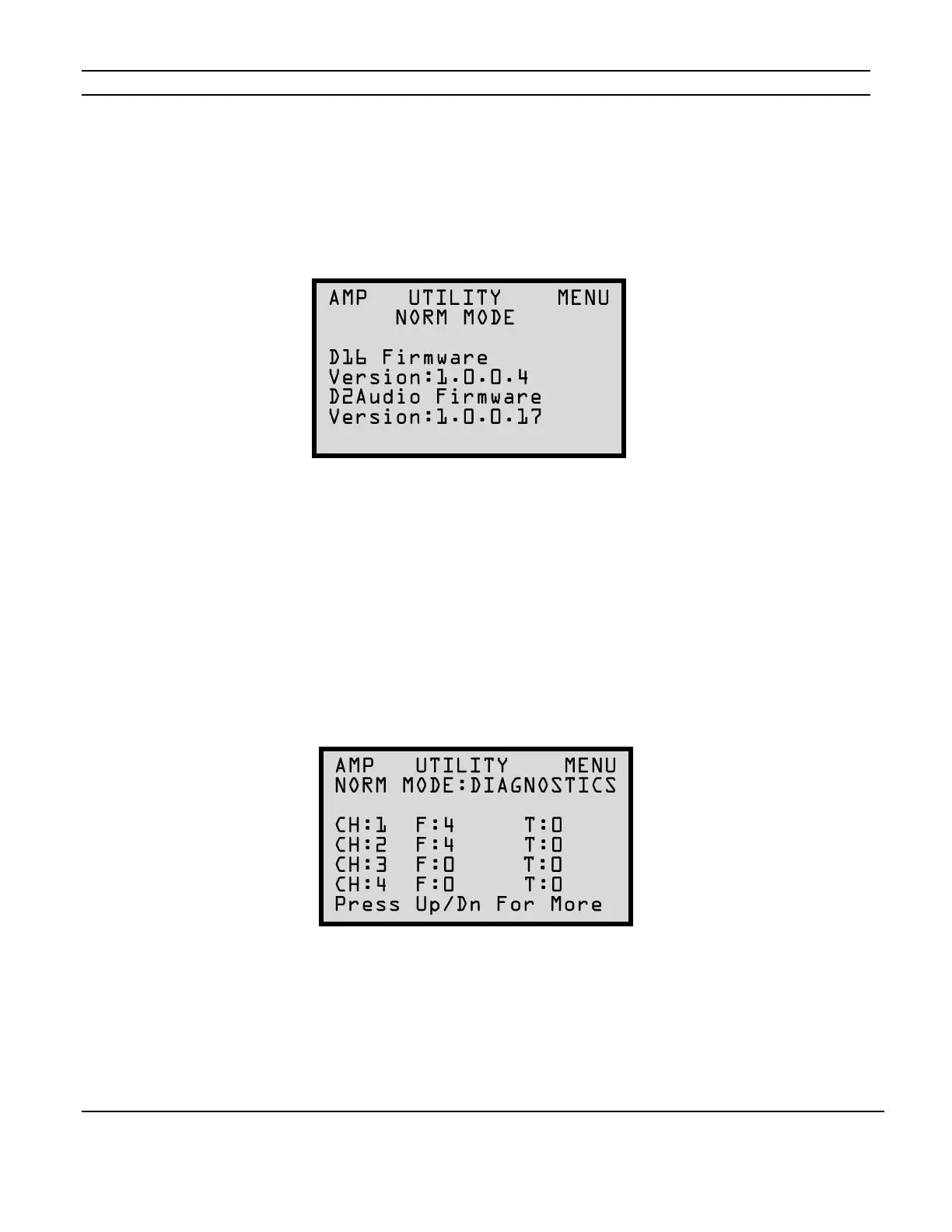

Figure 2-22
Firmware Version Screen
Figure 2-23
Diagnostics Screen
