Triggers
+12V Trigger Inputs
A 3.5mm mono interconnect cable is used for the +12V Trigger Input connection. Each channel
pair 1/2, 3/4, 5/6, 7/8, 9/10, 11/12, 13/14 and 15/16 have dedicated triggers. Trigger 1 is assigned
to channel pair 1/2, trigger 2 is assigned to channel pair 3/4 and so forth.
When the trigger is active the channel pairs turn on.
When the trigger is not active the channel pairs turn off.
If no cables are used, the triggers will be turned on by default.
(See note on triggers on page 41)

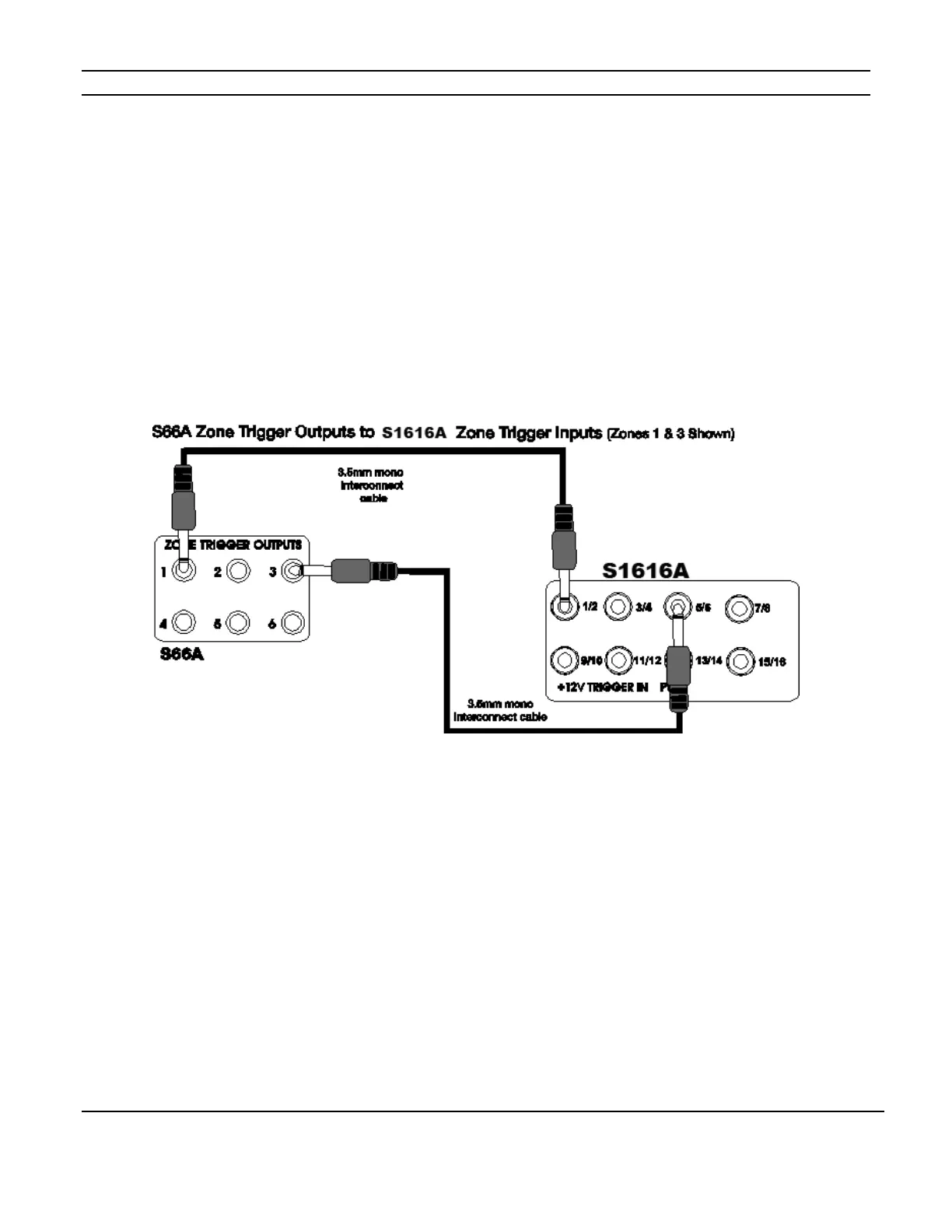

Figure 3-6 S1616A Zone Trigger Connections
