E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE
© ELAN Home Systems 2012 | All rights reserved.
Utility Sub-Menu (Continued)
Bus A Input Menu
This menu setting determines if BUS A audio signal is routed from the ANALOG audio input for
inputs 1 and 2 or is routed from OPTICAL DIGITAL audio input A.
Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using
the MENU button, use the CHANNEL button to select the BUS A Input menu. Use the UP and
DOWN arrow buttons to select the desired input.
Bus B Input Menu
This menu setting determines if BUS B audio signal is routed from the ANALOG audio input for
inputs 9 and 10 or is routed from OPTICAL DIGITAL audio input B.
Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using
the MENU button, use the CHANNEL button to select the BUS B Input menu. Use the UP and
DOWN arrow buttons to select the desired input.

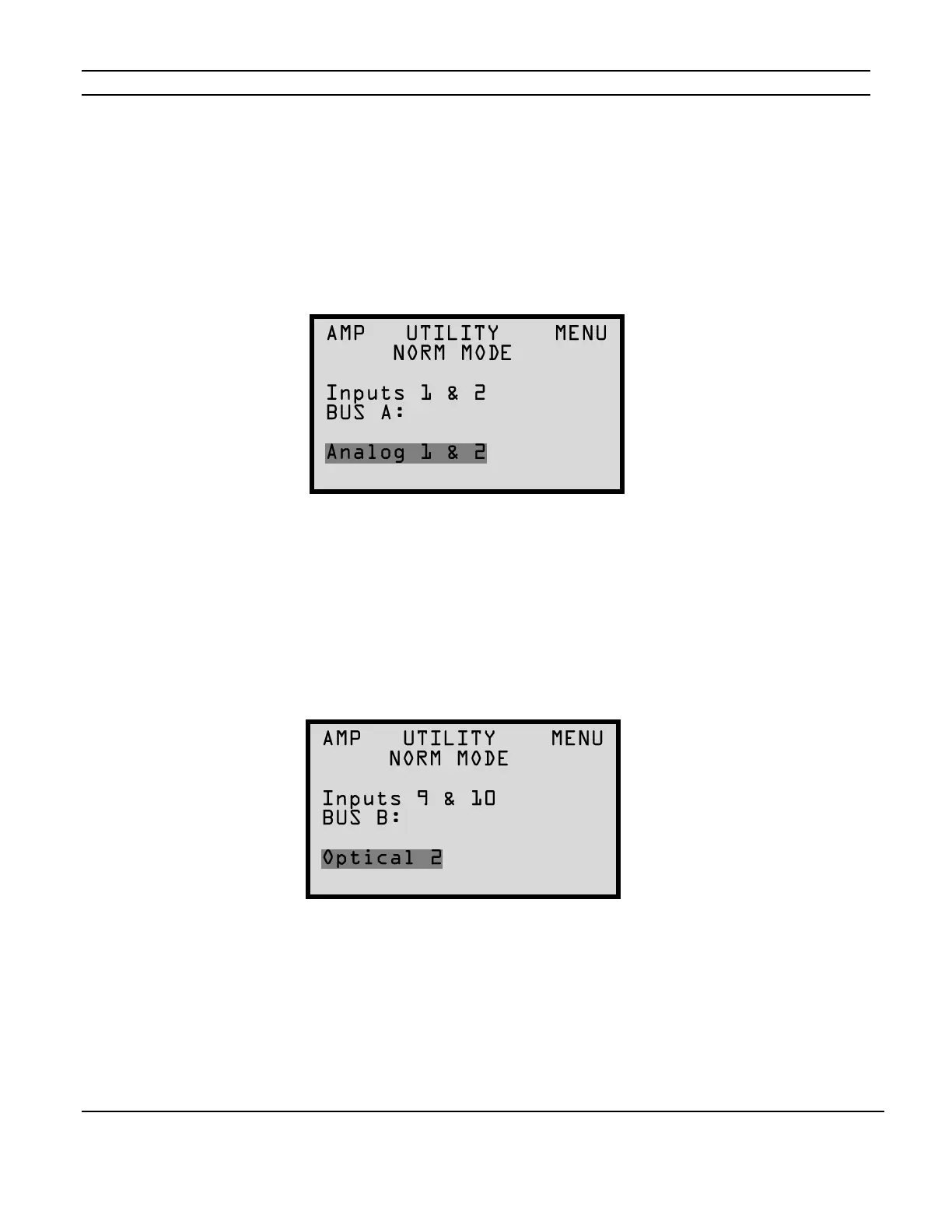

Figure 2-19
BUS A Input Menu
Figure 2-20
BUS B Input Menu
