E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE
© ELAN Home Systems 2012 | All rights reserved.
Utility Sub-Menu Additions (In ELAN MODE)
Channel Range Menu
Once you have selected the Utility sub-menu by cycling through the MAIN Menu options using
the MENU button, use the CHANNEL button to select the Channel Range menu.
This menu sets the IR Codes Commands to be processed based on the channel numbers
selected.
The default setting is 1-16.
16 chassis can be used for a total of 256 channels.
S1616As can have the same channel range settings if you want the S1616As to respond to the
same IR Commands.

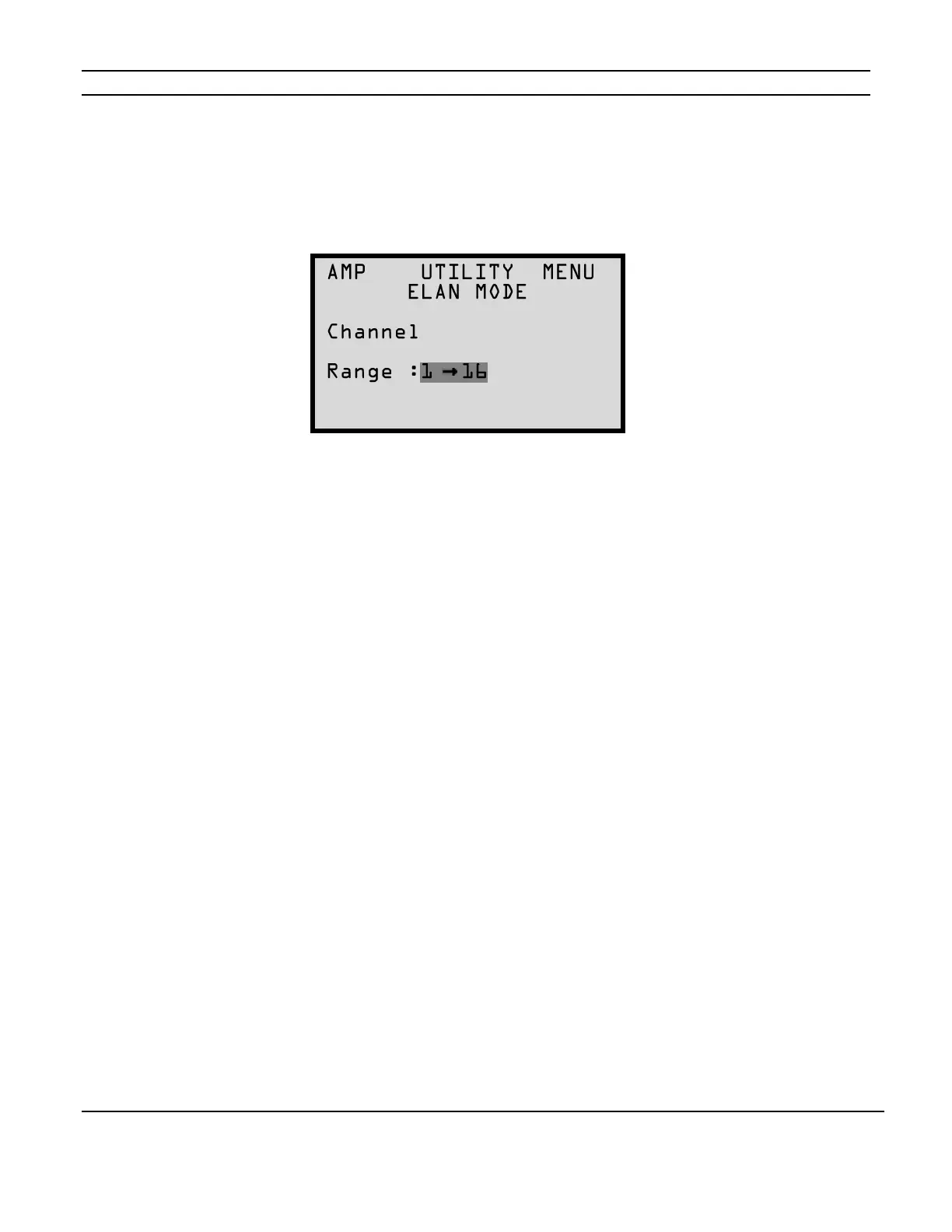

Figure 2-33
Channel Range Menu
