BUS Outputs
BUS audio outputs enable connection of additional amplifiers to allow further system expansion.
Audio input 1 is buffered and routed out the audio output 1 connector, input 2 to output 2 and so
forth. There are eight Bus Ins and Outs, labeled A for channels 1 / 2, B for 3 / 4, C for 5 / 6, D for
7 / 8, E for 9 / 10, F for 11 / 12, G for 13 / 14, and H for 15 / 16.
Digital audio inputs do not “loop out” of the S1616A. If multiple amplifiers are to be used in Bus
mode you should use the analog Bus inputs.

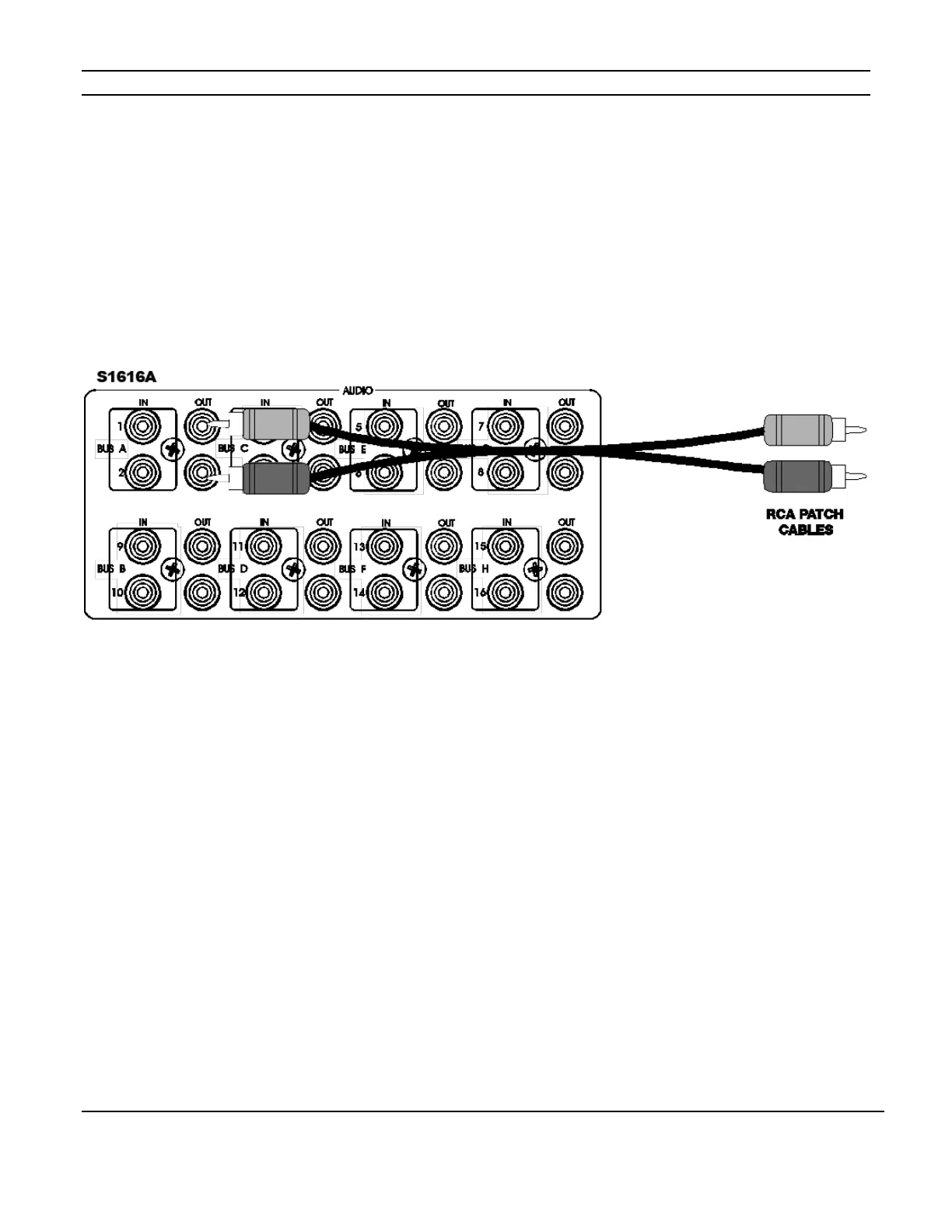

Figure 3-4 Analog Bus Outputs
