Applications
Stereo Input with Stereo Output
Standard application
Prerequisites: Factory Default the amp and set to NORMAL Mode.
See: Restore Defaults on page 29, Operating Mode Menu on page 23
This example displays a basic stereo setup. Stereo from a source device is connected to audio inputs 1 and 2. Audio
input 1 is routed to output channel 1 and audio input 2 is routed to output channel 2.
Volume is adjusted by an ELAN A/V Controller or by another Audio Device.

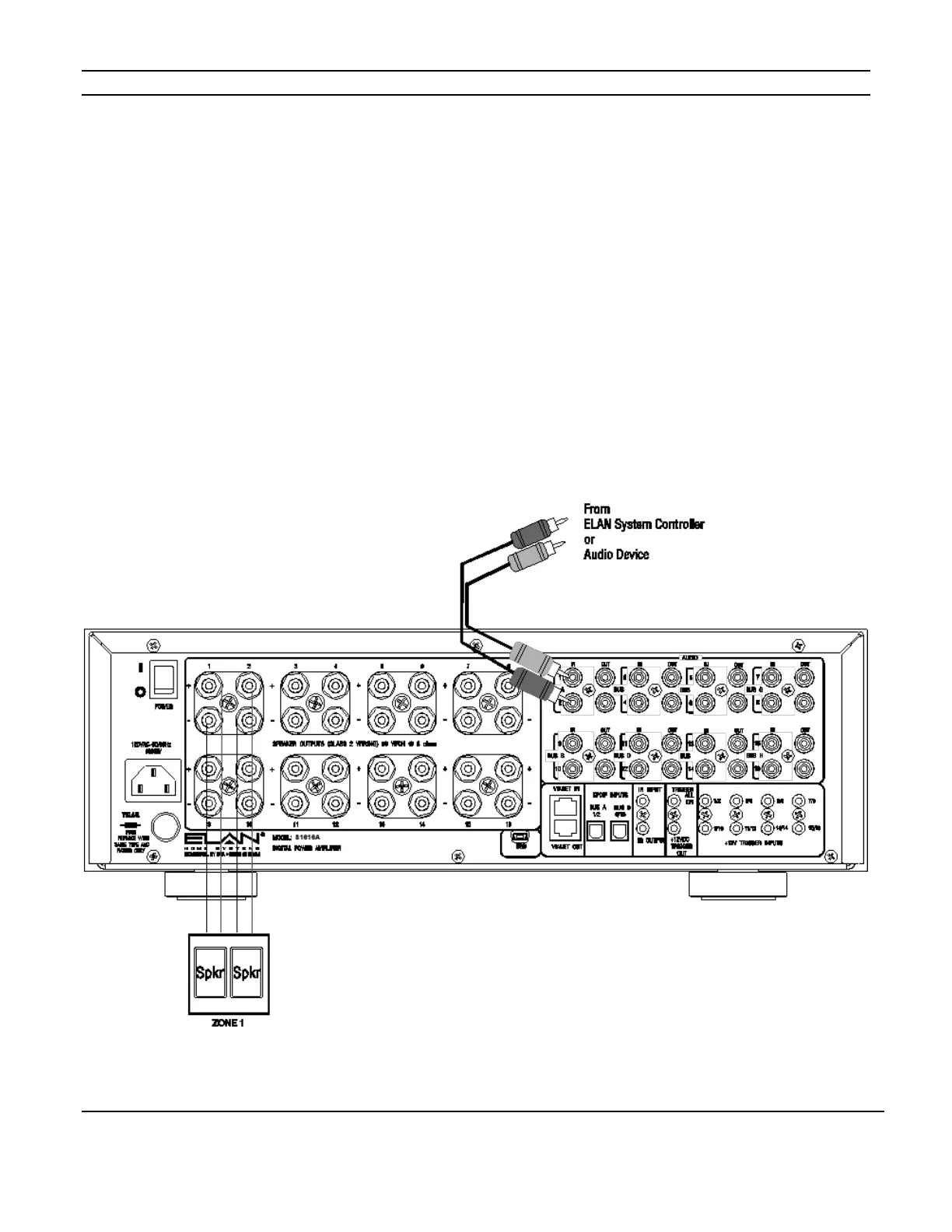

Figure 4-1 Stereo Connections
