S1616A Functions & Indicators
Front Panel

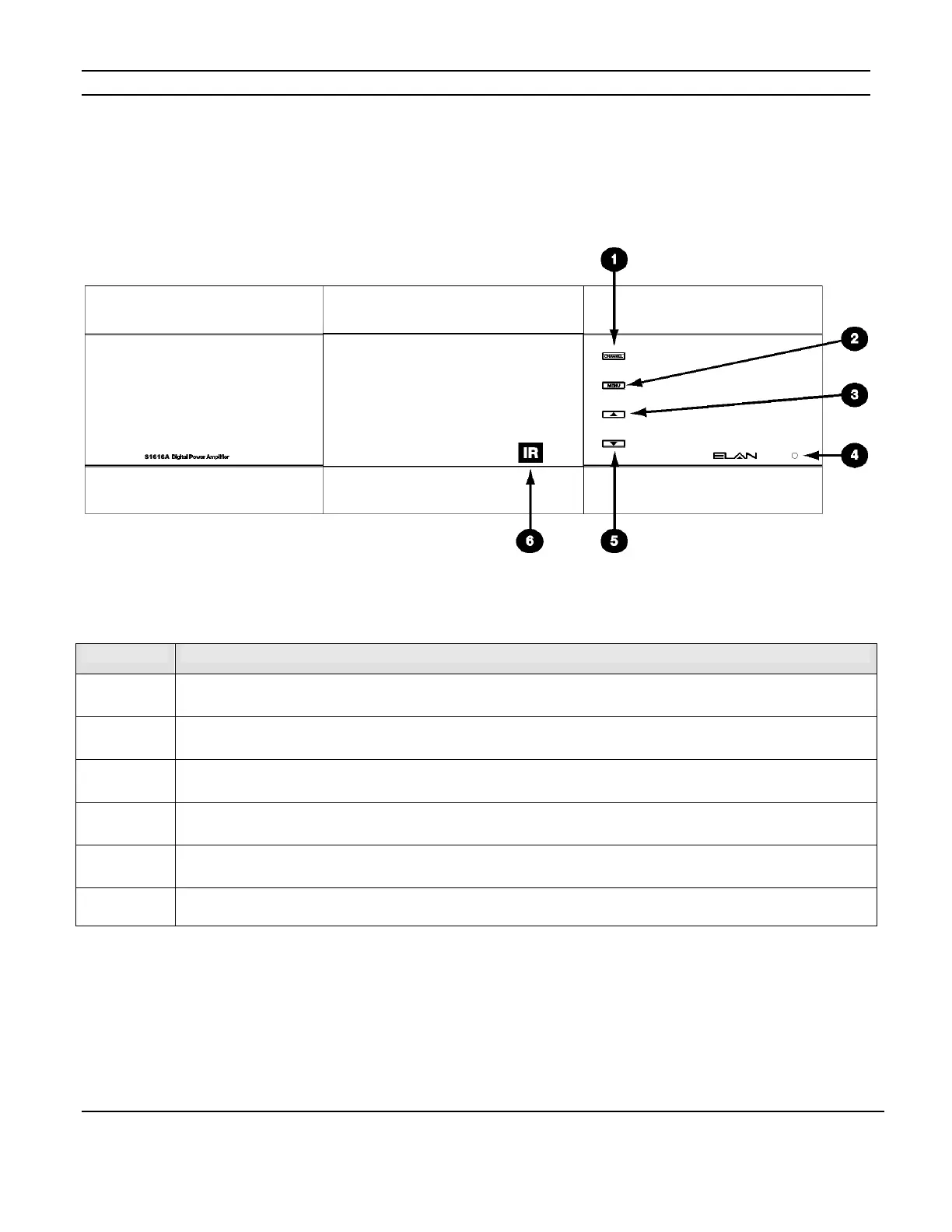

Figure 0-1: S1616A Front Panel Controls and Display
Channel Button
Cycles through information pertaining to each of the 16 audio channels
Menu Button
Cycles through various advanced setup features
Up Arrow Button
Increments selected menu item
Power Indicator
Illuminates when AC power is present and the power switch is on.
Down Arrow Button
Decrements selected menu item
IR Receive Indicator
Illuminates when the S1616A receives ELAN IR commands
