E L A N H O M E S Y S T E M S S1616A AMPLIFIER MODE
© ELAN Home Systems 2012 | All rights reserved.
Multiple Stereo Inputs
This example shows different audio sources connected to each audio input.
With Channel Range set to Channel All Direct, Audio Input 1 is routed to Channel 1; Audio Input 2
is routed to Channel 2, etc...and Audio Input 16 is routed to Channel 16.
Prerequisites: Factory Default the amp and set to ELAN or Normal Mode
Channel Range: Set to 1 to 16
Input Select Menu: Channel Direct
See:
Restore Defaults on page 29, Operating Mode Menu on page 23
Input Select Menu on page 17

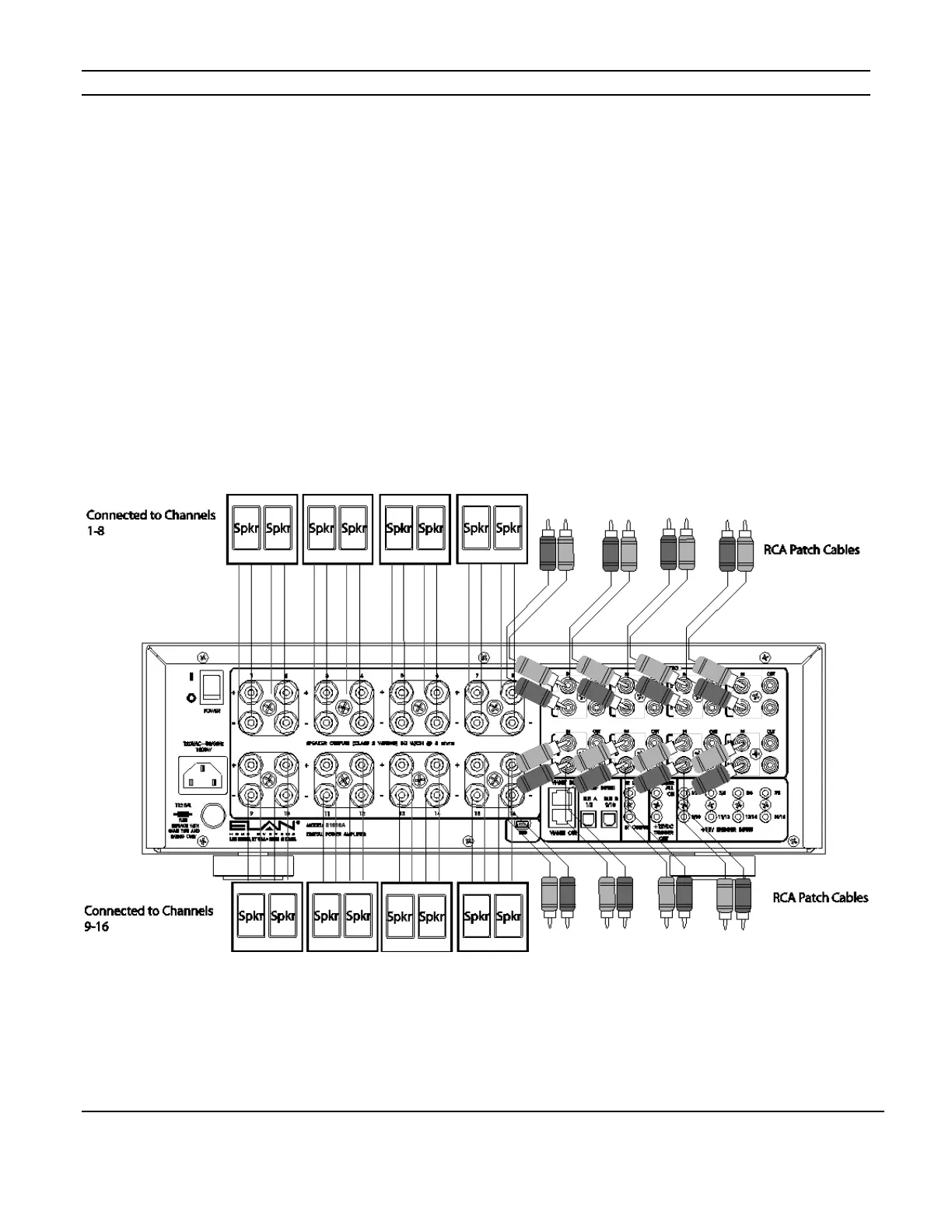

Figure 4-2 Multiple Stereo Inputs
